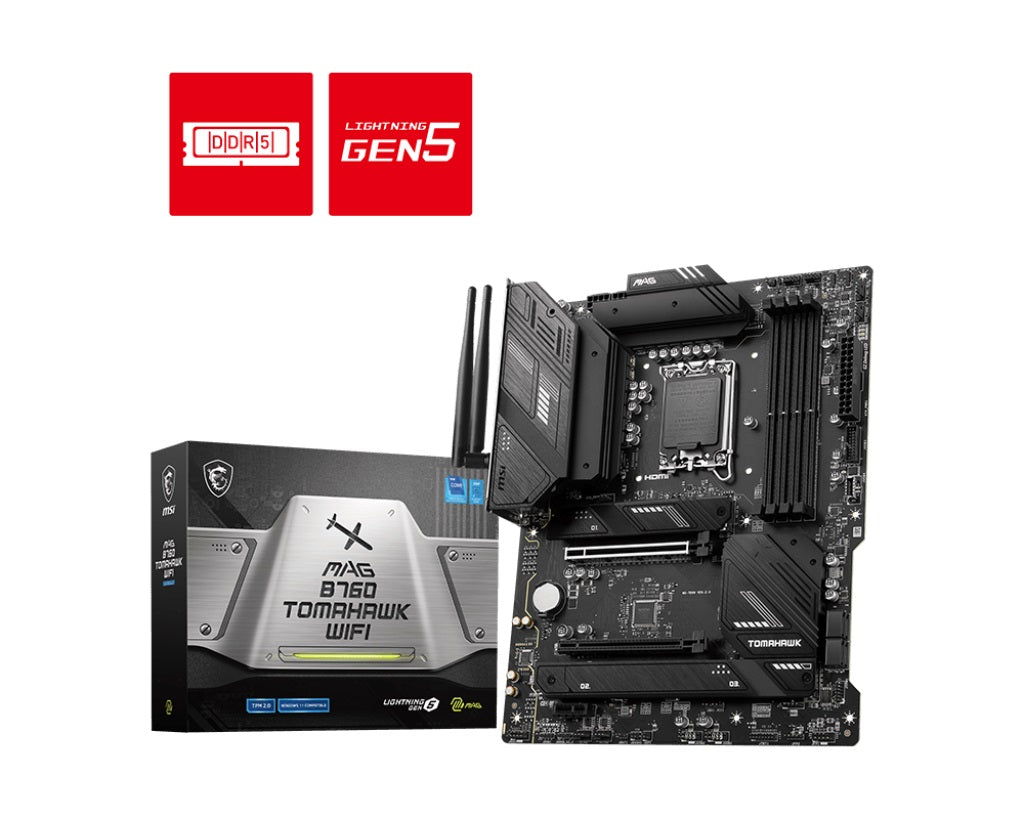

MSI MAG B760 TOMAHAWK WIFI ATX Motherboard
MSI MAG B760 TOMAHAWK WIFI ATX Motherboard
SKU:MBM-B760TOMAHAWKWIFI
The MSI MAG B760 TOMAHAWK WIFI is an ATX motherboard designed for 12th and 13th Gen Intel Core systems. Featuring DDR5 support up to 192GB, PCIe 5.0 expansion, and integrated WiFi, it delivers excellent performance and connectivity for business workstations and high-performance builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B760TOMAHAWKWIFI |
| Availability | In Stock |
Overview
- The MSI MAG B760 TOMAHAWK WIFI is a feature-rich ATX motherboard built on the Intel B760 chipset, delivering solid performance for 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors. It offers comprehensive connectivity and expansion options including PCIe 5.0 support, DDR5 memory up to 192GB, and integrated WiFi—making it suitable for both business workstations and performance-oriented builds.
This motherboard provides extensive storage flexibility with three M.2 NVMe slots and four SATA connections, accommodating modern fast storage alongside legacy drives. The dual PCI-E x16 slots support graphics upgrades and expansion cards, while the comprehensive USB ecosystem—including USB 3.2 Gen2 and Type-C ports—ensures compatibility with contemporary peripherals and devices.
With 36 months manufacturer warranty, this platform offers reliability and support for deployment in professional environments. It's an ideal choice for system builders, IT managers, and organisations looking for a stable, well-connected foundation for Intel-based computing infrastructure.
Specifications
| Brand | MSI |
|---|---|
| Model | MAG B760 TOMAHAWK WIFI |
| Product Type | ATX Motherboard |
| Chipset | Intel B760 |
| CPU Socket | LGA1700 |
| CPU Support | 12th and 13th Gen Intel Core, Pentium Gold, Celeron |
| Form Factor | ATX |
| PCB Dimensions | 243.84mm x 304.8mm |
| Memory Slots | 4x DDR5 |
| Maximum Memory | 192GB |
| Memory Speeds | 5000–7000+ MHz (JEDEC and OC) |
| M.2 Slots | 3x (M.2_1: PCIe 4.0 x4 from CPU; M.2_2: PCIe 4.0 x4 from Chipset; M.2_3: PCIe 4.0 x4/SATA from Chipset) |
| M.2 Form Factors Supported | 22110, 2280, 2260, 2242 |
| SATA Ports | 4x SATA 6G |
| PCI-E x16 Slots | 2x (PCI_E1: PCIe 5.0 x16 from CPU; PCI_E2: PCIe 3.0 x4 from Chipset) |
| PCI-E x1 Slots | 1x (PCI_E3: PCIe 4.0 x1 from Chipset) |
| USB 2.0 Ports | 8x (4x Rear, 4x Front Header) |
| USB 3.2 Gen1 Ports | 2x Type A (Front Header) |
| USB 3.2 Gen2 Ports | 4x Type A (Rear), 1x Type-C (Front Header), 1x Type-C 2x2 (Rear) |
| Video Outputs | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (8K 60Hz) |
| Integrated Graphics Support | HDMI and DisplayPort (CPU-dependent) |
| Wireless Connectivity | WiFi (integrated) |
| Supported Operating Systems | Windows 11 64-bit, Windows 10 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Which Intel processors are compatible with the MSI MAG B760 TOMAHAWK WIFI?
This motherboard supports 12th and 13th Gen Intel Core processors, as well as Pentium Gold and Celeron processors with the LGA1700 socket. It is not compatible with older 10th or 11th Gen processors or AMD CPUs.
What is the maximum memory capacity and speed supported?
The motherboard supports up to 192GB of DDR5 memory across four slots. Native JEDEC speeds range from 5000 to 5600 MHz, with overclocking support reaching up to 7000+ MHz depending on memory configuration.
Does this motherboard support NVMe storage expansion?
Yes, it includes three M.2 NVMe slots supporting PCIe 4.0 speeds. The primary slot (M.2_1) connects directly to the CPU for maximum performance, whilst the secondary slots (M.2_2 and M.2_3) connect to the chipset. M.2_3 also supports SATA mode.
What are the PCIe 5.0 capabilities?
The primary PCI-E x16 slot (PCI_E1) supports PCIe 5.0 and connects directly to the CPU, providing maximum bandwidth for graphics cards and high-speed expansion devices. The secondary slot operates at PCIe 3.0 x4.
Is WiFi built into this motherboard?
Yes, the MSI MAG B760 TOMAHAWK WIFI includes integrated WiFi connectivity, eliminating the need for a separate wireless adapter.
What video outputs are available?
The motherboard provides one HDMI 2.1 port (supporting 4K at 60Hz) and one DisplayPort 1.4 (supporting 8K at 60Hz). Both outputs require a CPU with integrated graphics.
How many storage connections are available?
The motherboard offers three M.2 NVMe slots and four SATA 6G ports, providing flexible storage configuration for modern NVMe drives and legacy SATA devices.
What is the warranty period?
The MSI MAG B760 TOMAHAWK WIFI includes a 36-month manufacturer warranty.
