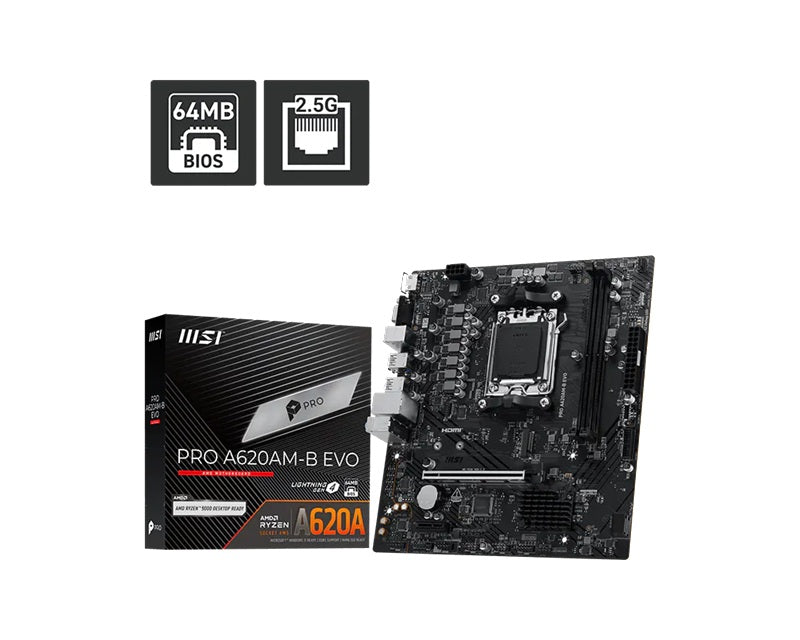

MSI PRO A620AM-B EVO ATX Motherboard AM5

MSI PRO A620AM-B EVO ATX Motherboard AM5

MBM-PRO-A620AM-B-EVO

The MSI PRO A620AM-B EVO is an ATX motherboard designed for AMD Ryzen processors on the AM5 socket. Featuring dual DDR5 memory support, PCIe 4.0 connectivity, and 2.5G LAN, it delivers reliable performance for business and professional computing builds.
$151.80 AUD
$151.80 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
No reviews yet

Product Information

BrandMSI
CategoryMotherboards
SKUMBM-PRO-A620AM-B-EVO
AvailabilityIn Stock
MSI PRO A620AM-B EVO ATX Motherboard AM5$151.80
$151.80
Overview
  • The MSI PRO A620AM-B EVO is a professional-grade ATX motherboard built on the AMD A620A chipset, offering broad compatibility with Ryzen 9000, 8000, and 7000 Series processors. With dual DDR5 memory support up to 128GB and PCIe 4.0 connectivity, it provides modern performance capabilities for business and professional applications.

    The motherboard delivers practical connectivity options including 2.5G LAN for reliable network performance, HDMI 2.1 and VGA outputs for flexible display configurations, and multiple USB ports (both Type-A and Type-C). Storage options include one M.2 slot with PCIe 4.0 x4 support and two SATA 6G connectors with RAID 0/1 support.

    Designed for business buyers and system integrators, the PRO A620AM-B EVO offers a stable platform for mid-range to professional-grade builds. Its comprehensive feature set, combined with a 36-month warranty, makes it a reliable choice for organisations standardising on AMD's AM5 platform.
Specifications
ChipsetAMD A620A
SocketAM5
CPU SupportAMD Ryzen 9000, 8000, 7000 Series Desktop Processors
Memory Slots2x DDR5
Maximum Memory128GB
Memory Speed (JEDEC)DDR5 5600–4800 MT/s
Memory Speed (OC)DDR5 6800+ MT/s (1DPC 1R), 6000+ MT/s (1DPC 2R)
Memory FeaturesDual-channel mode, AMD EXPO support, memory overclocking
PCIe Slots1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset)
PCIe x16 Supportx16 (Ryzen 9000/7000), x8 (Ryzen 8700/8600/8400), x4 (Ryzen 8500/8300)
M.2 Slots1x M.2 (PCIe 4.0 x4 from CPU, supports 2280/2260 devices)
SATA Connectors2x SATA 6G
RAID SupportRAID 0, RAID 1 (SATA devices)
Video Outputs1x HDMI 2.1 (4K 60Hz), 1x VGA (up to 2048x1536 50Hz)
AudioRealtek ALC897 Codec, 7.1-channel
LANRealtek RTL8125 2.5G
USB Ports (Rear)4x USB 5Gbps Type-A, 2x USB 2.0
USB Ports (Front)2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0
Internal Connectors1x ATX PWR, 1x CPU PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 2x RGB LED headers, 1x TPM 2.0 header
Debug Features4x EZ Debug LED, 1x EZ Memory Detection LED
Form FactorATX
Warranty36 months
Key Features
Supports AMD Ryzen 9000, 8000, and 7000 Series processors on AM5 socket
Dual DDR5 memory slots supporting up to 128GB capacity
PCIe 4.0 x16 slot for high-speed graphics and expansion cards
2.5G LAN for fast network connectivity
HDMI 2.1 and VGA video outputs for multi-display setups
1x M.2 slot with PCIe 4.0 x4 support for NVMe storage
7.1-channel audio with Realtek ALC897 codec
36-month manufacturer warranty
Ideal For
Business and office computing builds requiring reliable performance
Professional workstations for content creation and productivity tasks
System integrators building mid-range AMD Ryzen systems
Organisations seeking cost-effective, stable platform for employee desktops
IT departments requiring standardised, compatible AM5 motherboards
FAQs
What AMD Ryzen processors does the MSI PRO A620AM-B EVO support?

This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket. PCIe x16 bandwidth varies by CPU series: x16 for Ryzen 9000/7000, x8 for Ryzen 8700/8600/8400, and x4 for Ryzen 8500/8300.

What is the maximum memory capacity and speed?

The motherboard supports up to 128GB across 2x DDR5 DIMM slots. JEDEC speeds range from DDR5 5600–4800 MT/s, while overclocked speeds can reach 6800+ MT/s (1DPC 1R) or 6000+ MT/s (1DPC 2R) with compatible memory and CPUs.

Does it support NVMe storage?

Yes, it includes 1x M.2 slot with PCIe 4.0 x4 support (from CPU) for NVMe drives in 2280 and 2260 form factors. Additionally, there are 2x SATA 6G connectors for traditional drives with RAID 0/1 support.

What video outputs are available?

The motherboard provides 1x HDMI 2.1 (supporting 4K 60Hz on integrated graphics) and 1x VGA connector (up to 2048x1536 50Hz). Both require a CPU with integrated graphics.

What is the network connectivity option?

It features a Realtek RTL8125 2.5G LAN port, providing faster network speeds than standard 1G connections, ideal for business networks and file transfers.

How many USB ports does it have?

Total USB connectivity includes 4x USB 5Gbps Type-A (rear), 2x USB 5Gbps Type-A (front), 1x USB 5Gbps Type-C (front), and 6x USB 2.0 ports (2 rear, 4 front).

Is TPM 2.0 supported?

Yes, the motherboard includes a TPM 2.0 pin header, enabling secure computing features required for modern Windows installations and security protocols.

What is the warranty period?

The MSI PRO A620AM-B EVO comes with a 36-month manufacturer warranty, providing extended protection for business purchases.
