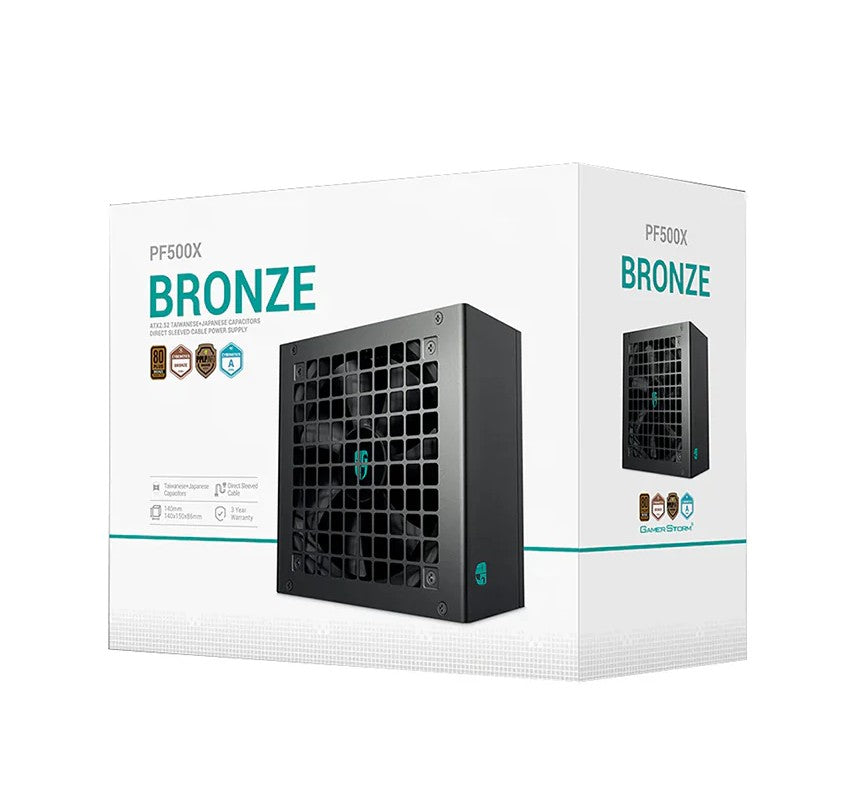

DeepCool PF500X 500W 80+ Bronze ATX Power Supply
DeepCool PF500X 500W 80+ Bronze ATX Power Supply
SKU:PSD-PF500X-GS
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PF500X-GS |
| Availability | In Stock |
Overview
- The DeepCool PF500X 500W power supply is purpose-built for stable, efficient power delivery in gaming and business PC applications. With 80+ Bronze certification, it meets EU energy efficiency standards while delivering 88% efficiency at typical 50% loads, reducing operational costs and heat output.
Designed with Active PFC and DC to DC topology, the PF500X provides clean, regulated power across all rails. The 120mm fan features a long-life HYB bearing, ensuring quiet operation during extended use—critical for office and gaming environments where noise is a consideration.
Comprehensive protection circuitry including Over Power Protection, Over Voltage Protection, Over Current Protection, Short Circuit Protection, Over Temperature Protection, and Under Voltage Protection safeguards connected components. Built with Japanese and Taiwanese electrolytic capacitors, the unit is engineered for durability and longevity.
Specifications
| Model | PF500X |
|---|---|
| Total Output | 500W |
| Power Supply Type | ATX12V V2.52 |
| Efficiency Rating | 80+ Bronze / Cybenetics Bronze |
| Efficiency at 50% Load | ≥88% |
| Fan Size | 120mm |
| Fan Bearing Type | Long-life HYB |
| Topology | Active PFC + DC to DC |
| Capacitors | Japanese and Taiwanese electrolytic |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms at 75% load |
| Protection Features | OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO |
| Operating Temperature Range | 0–40°C |
| Dimensions (W x L x H) | 150 × 140 × 86mm |
| Certifications | CE, TUV-RH, CCC, RCM, KC |
| Regulatory Compliance | ErP 2014 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is the DeepCool PF500X suitable for gaming PCs?
Yes. The PF500X is designed for gaming and mid-range workstation builds. Its 500W output, stable power delivery via Active PFC and DC to DC topology, and comprehensive protection make it reliable for gaming systems with single graphics cards or balanced component configurations.
What does 80+ Bronze certification mean?
80+ Bronze means the power supply converts at least 80% of input power into usable output, with 88% efficiency at typical 50% loads. This reduces energy waste, lowers electricity costs, and minimises heat generation compared to non-certified units.
What protection features does it include?
The PF500X includes OPP (Over Power), OVP (Over Voltage), OCP (Over Current), SCP (Short Circuit), OTP (Over Temperature), UVP (Under Voltage), SIP (Surge Input), and NLO (No Load Operation) protection to safeguard your components against electrical faults.
How quiet is the 120mm fan?
The 120mm fan uses a long-life HYB bearing designed for quiet operation. Noise levels depend on load and ambient temperature, but the design prioritises low acoustic output for office and gaming environments.
Is it compatible with my existing PC?
The PF500X follows the ATX12V V2.52 standard, making it compatible with most modern PCs that use standard ATX power supply form factors. Verify your case has adequate space (150 × 140 × 86mm) and confirm your system's power requirements don't exceed 500W.
What countries do the certifications cover?
The PF500X holds CE (Europe), TUV-RH (Europe), CCC (China), RCM (Australia/New Zealand), and KC (South Korea) certifications, ensuring compliance across multiple regions including Australia.
What is the warranty?
The DeepCool PF500X includes a 36-month warranty covering manufacturing defects and component failure.
