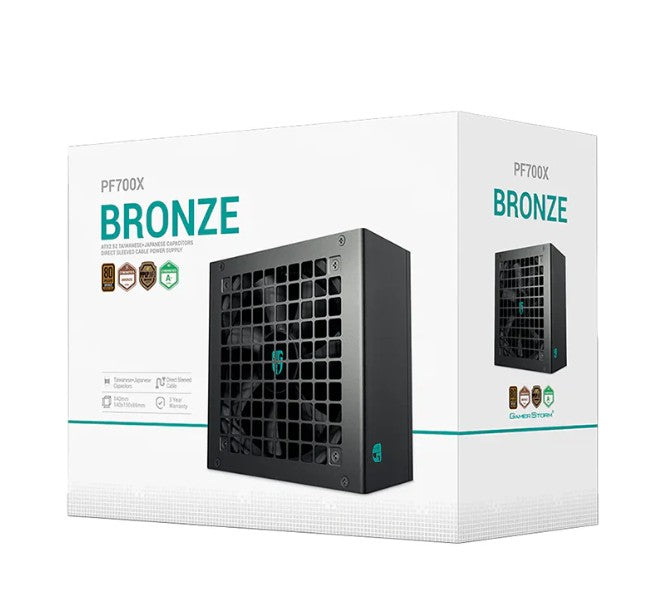

DeepCool PF700X 700W 80+ Bronze ATX Power Supply
DeepCool PF700X 700W 80+ Bronze ATX Power Supply
SKU:PSD-PF700X-GS
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PF700X-GS |
| Availability | Out of Stock |
Overview
- The DeepCool PF700X delivers 700W of stable, efficient power for gaming and general computing builds. With 80+ Bronze certification, it achieves over 88% efficiency at 50% load, reducing energy waste and operating costs. The unit employs active PFC and DC-to-DC topology to ensure clean, consistent power delivery across all rails.
Built with high-quality Japanese and Taiwanese capacitors, the PF700X is designed for durability and longevity. The 120mm long-life hybrid bearing fan operates quietly under typical loads whilst maintaining effective thermal management across operating temperatures from 0 to 40°C.
Comprehensive protection circuitry safeguards connected components against overvoltage, overcurrent, short circuit, and thermal conditions. With a 36-month warranty and international regulatory compliance (CE, TUV-RH, CCC, RCM, KC), the PF700X is a reliable choice for system builders and IT professionals seeking quality at an accessible price point.
Specifications
| Model | PF700X |
|---|---|
| Total Output | 700W |
| Type | ATX12V V2.52 |
| Efficiency Certification | 80+ Bronze (230V EU / Cybenetics Bronze / Cybenetics A- 230V/PPLP) |
| Fan Size | 120mm |
| Fan Bearing Type | Long-life Hybrid |
| Topology | Active PFC + DC to DC |
| Capacitors | Japanese and Taiwanese Electrolytic |
| Efficiency at 50% Load | ≥88% |
| Power Good Signal | 100-150ms |
| Hold-Up Time | ≥16ms at 75% load |
| Protection Features | OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO |
| Operating Temperature | 0–40°C |
| Dimensions | 150 × 140 × 86mm (W × L × H) |
| Warranty | 36 months |
| Regulatory Compliance | CE, TUV-RH, CCC, RCM, KC |
Key Features
Ideal For
FAQs
What does 80+ Bronze efficiency mean?
80+ Bronze certification means the power supply converts at least 80% of input power to usable output at 50% load, with a minimum of 88% efficiency typical. This reduces energy waste and heat generation compared to non-certified units, lowering running costs and improving system stability.
Is the PF700X suitable for gaming systems?
Yes. The 700W output and stable power delivery via DC-to-DC topology make it suitable for most gaming builds, including systems with mid-to-high range graphics cards. However, verify your system's total power requirements before purchase.
What protection does this unit provide?
The PF700X includes comprehensive protection against overvoltage (OVP), overcurrent (OCP), short circuit (SCP), thermal overload (OTP), under-voltage (UVP), and surge input protection (SIP). This safeguards your components from electrical faults.
What is the warranty period?
The DeepCool PF700X comes with a 36-month manufacturer warranty covering manufacturing defects and component failures.
Does this unit meet international safety standards?
Yes. The PF700X is compliant with CE, TUV-RH, CCC, RCM, and KC regulatory standards, ensuring it meets safety and quality requirements in major markets.
What is the hold-up time?
Hold-up time of ≥16ms at 75% load means the unit maintains stable output for at least 16 milliseconds if input power is interrupted, allowing your system to safely shut down or switch to backup power.
Is a 700W supply enough for my build?
A 700W supply is generally suitable for mainstream gaming and office systems. For high-end multi-GPU setups or server workloads, confirm your total system power draw (CPU, GPU, storage, etc.) and allow a 20–30% headroom for stability.
