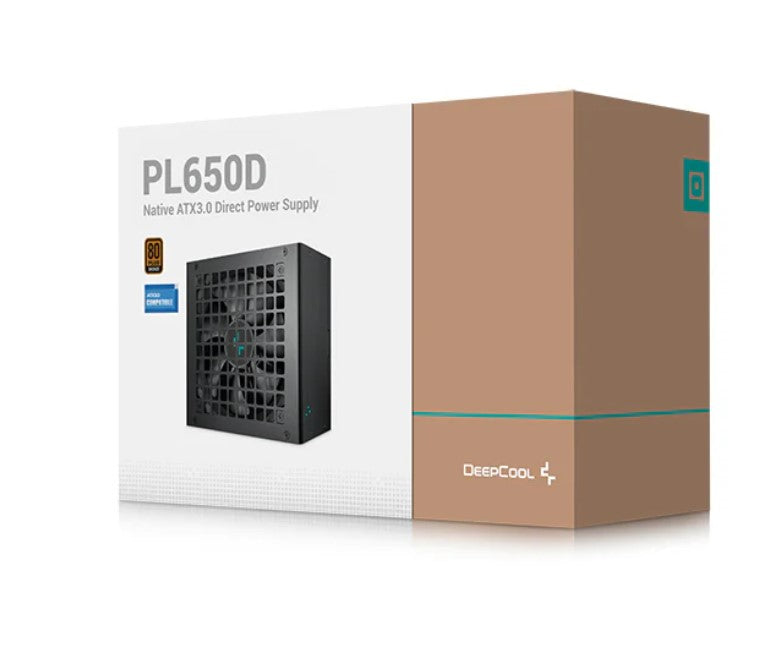

DeepCool PL650D 650W 80+ Bronze ATX Power Supply
DeepCool PL650D 650W 80+ Bronze ATX Power Supply
SKU:PSD-PL650D
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PL650D |
| Availability | Out of Stock |
Overview
- The DeepCool PL650D is a non-modular 650W ATX power supply designed for reliable performance in desktop and workstation environments. With 80+ Bronze certification, it delivers ≥85% efficiency under typical loads, reducing operating costs and heat output. The unit features a 120mm hydro-bearing fan for consistent cooling and quiet operation, alongside advanced protection mechanisms including overvoltage, overcurrent, and thermal safeguards.
Compliant with Intel's ATX3.1 standard and equipped with a 12VHPWR cable, the PL650D bridges legacy systems and modern power delivery requirements. Its Active PFC and DC-to-DC topology ensure stable power across varying input conditions. The compact 150×140×86mm form factor suits a wide range of chassis designs without sacrificing component quality.
Backed by a 60-month warranty and built with an impressive 100,000 MTBF rating, the PL650D provides long-term dependability for business and consumer applications requiring certified, efficient power.
Specifications
| Power Capacity | 650W |
|---|---|
| Form Factor | ATX12V V3.0 |
| Efficiency Certification | 80+ Bronze |
| Typical Load Efficiency | ≥85% at 50% loading |
| Dimensions (W×L×H) | 150×140×86mm |
| Fan Size | 120mm |
| Fan Bearing Type | Hydro Bearing (HYB) |
| Topology | Active PFC + DC to DC |
| Capacitor Type | Chinese Electrolytic Capacitors |
| Power Good Signal Duration | 100–150ms |
| Hold Up Time | ≥16ms |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| Operating Temperature Range | 0–40°C |
| Mean Time Between Failures (MTBF) | 100,000 hours |
| Regulatory Certifications | CE, FCC, CCC, RCM, EAC, BIS, CAN ICES-003(B), NMB-003(B), TÜV-RH |
| ErP Regulation Compliance | ErP 2014 |
| Warranty Period | 60 months |
Key Features
Ideal For
FAQs
Is the DeepCool PL650D modular or non-modular?
The PL650D is a non-modular design, meaning all cables are permanently attached. This approach reduces cost and complexity whilst maintaining reliability, making it suitable for straightforward builds without modularity requirements.
Does the PL650D support modern CPU and GPU power requirements?
Yes. The PL650D includes a 12VHPWR cable and is compliant with Intel's ATX3.1 standard, enabling support for modern high-power components whilst maintaining backward compatibility with standard ATX systems.
What does 80+ Bronze certification mean?
80+ Bronze certification guarantees the power supply operates at ≥80% efficiency under standard conditions, with the PL650D achieving ≥85% efficiency at typical 50% loads. This reduces wasted energy and heat generation.
How long is the warranty on the PL650D?
The DeepCool PL650D comes with a comprehensive 60-month (5-year) warranty, covering defects in materials and workmanship.
What protection mechanisms does the PL650D include?
The unit features multiple safety protections: OPP (overpowering), OVP (overvoltage), SCP (short circuit), OTP (overtemperature), OCP (overcurrent), UVP (undervoltage), SIP (synchronous impact prevention), and NLO (no-load operation) protection.
Is the 120mm fan quiet?
The 120mm hydro-bearing fan is designed for reliable, consistent operation. The hydro-bearing technology supports quiet performance and extended fan life compared to traditional sleeve bearings.
What is the MTBF rating and what does it mean?
MTBF (Mean Time Between Failures) of 100,000 hours indicates the expected operational lifespan before failure becomes likely. At typical usage rates, this translates to approximately 10+ years of reliable service.
