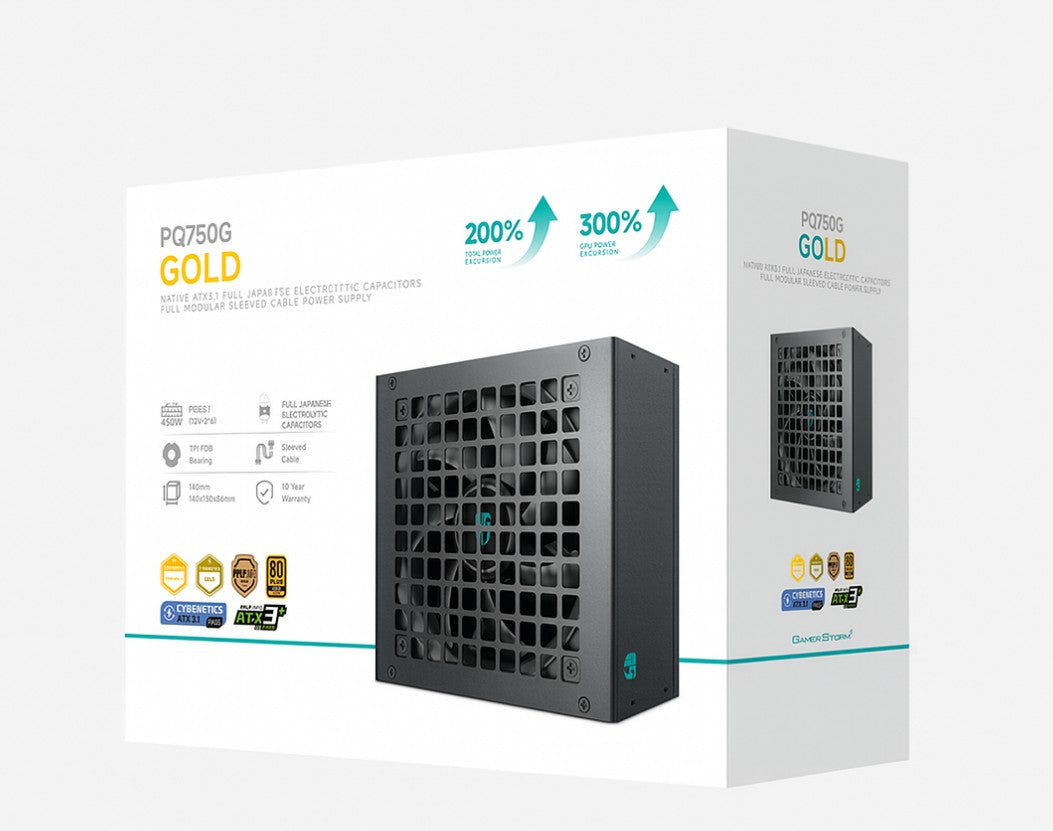

DeepCool PQ750G 750W 80+ Gold Fully Modular ATX PSU
DeepCool PQ750G 750W 80+ Gold Fully Modular ATX PSU
SKU:PSD-PQ750G-GS
Couldn't load pickup availability
- See our return policy
- 10 years (120 months) Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PQ750G-GS |
| Availability | In Stock |
Overview
- The DeepCool PQ750G is a premium 750W power supply designed to meet the demands of modern high-performance computing. With 80+ Gold efficiency certification and full Japanese electrolytic capacitors, it provides clean, stable power for intensive gaming and workstation applications.
The fully modular design allows for flexible cable management, reducing clutter and improving airflow within your case. The advanced FDB cooling fan operates quietly whilst maintaining optimal thermal performance across a wide operating temperature range.
Engineered with multiple protection mechanisms including overcurrent, overvoltage, short-circuit, and thermal protection, the PQ750G safeguards your expensive components. The enhanced 12V rail capacity ensures compatibility with modern graphics cards and processors that demand significant power delivery.
Backed by a 10-year warranty and featuring a 100,000-hour MTBF rating, this power supply is built for long-term reliability and performance.
Specifications
| Brand | DeepCool |
|---|---|
| Model | PQ750G |
| Total Output | 750W |
| Form Factor | ATX12V v3.1 |
| Efficiency Rating | 80+ Gold / Cybenetics Gold / PPLP Gold |
| Modular Design | Fully Modular |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japanese Electrolytic |
| Fan Size | 120×120×25mm |
| Fan Bearing Type | Fluid Dynamic Bearing (FDB) |
| Efficiency at 50% Load | ≥90% |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms (Full Load) |
| Dimensions | 150×140×86mm (W × L × H) |
| Operating Temperature | 0-40°C |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| Warranty | 10 years (120 months) |
| MTBF | 100,000 Hours |
| Regulatory Compliance | EAC, ErP 2013 |
| Environmental Standard | EAC |
Key Features
Ideal For
FAQs
Is the DeepCool PQ750G suitable for high-end gaming systems?
Yes. The 750W capacity with enhanced 12V rail delivery is designed for modern gaming builds featuring high-end graphics cards and processors. The 80+ Gold efficiency ensures stable power under demanding workloads.
What does fully modular mean?
Fully modular means all cables (24-pin, 8-pin, PCIe, SATA, Molex) detach from the power supply. This allows you to use only the cables you need, improving airflow and simplifying cable management inside your case.
What are the key protection features?
The PQ750G includes eight protection mechanisms: Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), Under Voltage Protection (UVP), Surge In Protection (SIP), and No Load Operation (NLO).
How long is the warranty?
The DeepCool PQ750G includes a 10-year warranty (120 months), reflecting the manufacturer's confidence in its reliability and durability.
What does 80+ Gold certification mean?
80+ Gold means the power supply achieves ≥90% efficiency at 50% load, reducing energy waste and heat generation. This translates to lower electricity costs and quieter cooling performance.
Can I use this PSU with older PC systems?
Yes. The PQ750G is ATX12V v3.1 compliant and backwards compatible with older systems. It provides twice the system power headroom and three times the rated power of legacy 12V-2x6 cables, making it suitable for both legacy and modern builds.
What is the operating temperature range?
The PQ750G operates reliably between 0-40°C. Ensure adequate ventilation and avoid extreme environmental conditions for optimal performance.
