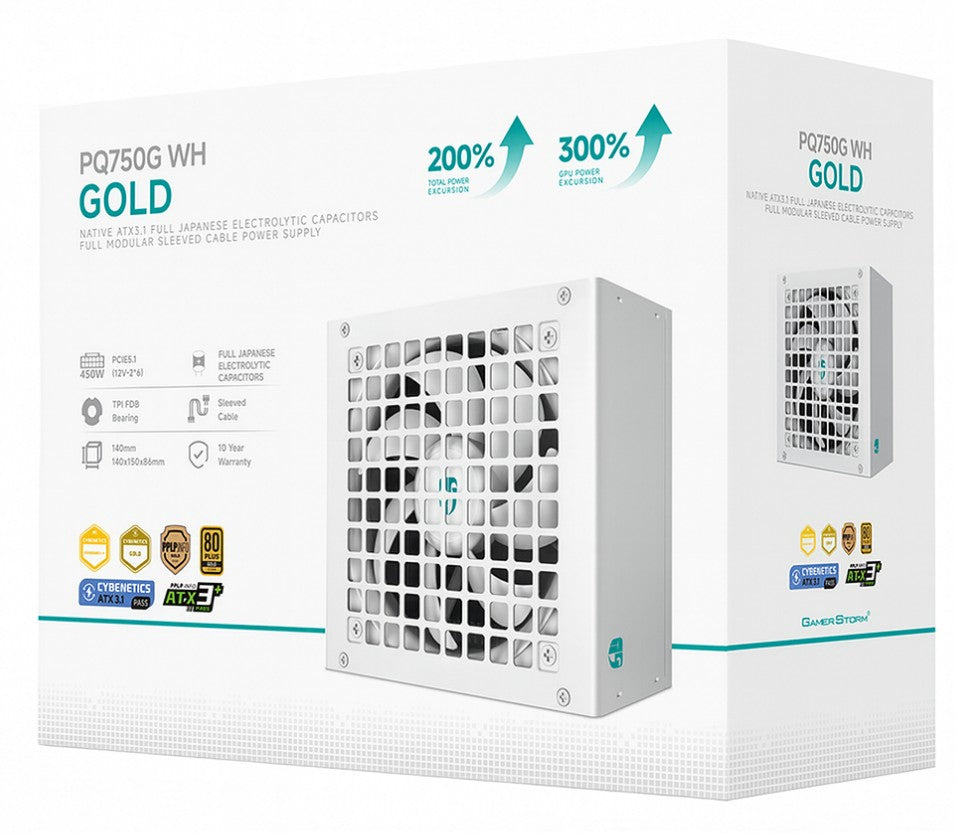

DeepCool PQ750G WH 750W 80+ Gold Fully Modular Power Supply
DeepCool PQ750G WH 750W 80+ Gold Fully Modular Power Supply
SKU:PSD-PQ750G-GS-WH
Couldn't load pickup availability
- See our return policy
- 120 months (10 years) Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PQ750G-GS-WH |
| Availability | In Stock |
Overview
- The DeepCool PQ750G WH is a 750W fully modular ATX power supply engineered for performance-focused systems. With 80+ Gold and Cybenetics Gold certification, it delivers ≥90% efficiency at typical loads, reducing energy waste and operating costs. The unit features full Japanese electrolytic capacitors and advanced DC to DC topology for stable, clean power delivery to demanding components.
The 120mm FDB fan operates quietly while maintaining efficient thermal management across a 0–40°C operating range. Comprehensive protection circuits—including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO—safeguard connected hardware against electrical faults. Its fully modular cable design simplifies cable management and case airflow optimisation.
With a 10-year warranty and 100,000-hour MTBF rating, the PQ750G WH is built for long-term reliability. It suits gaming PCs, professional workstations, and data centre applications where power efficiency, stability, and quiet operation are essential.
Specifications
| Total Output | 750W |
|---|---|
| Type | ATX12V V3.1 |
| Efficiency Certification | 80+ Gold / Cybenetics Gold / PPLP Gold |
| Efficiency at 50% Load | ≥90% |
| Fan Size | 120 × 120 × 25 mm |
| Fan Bearing Type | FDB (Fluid Dynamic Bearing) |
| Capacitors | Full Japanese Electrolytic |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Power Good Signal | 100–150 ms |
| Hold Up Time | ≥16 ms at full load |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| Operating Temperature Range | 0–40°C |
| Product Dimensions | 150 × 140 × 86 mm (W × L × H) |
| Regulatory Compliance | EAC, ErP 2013 |
| MTBF | 100,000 hours |
| Warranty | 120 months (10 years) |
| Modular Cables | Yes, fully modular |
Key Features
Ideal For
FAQs
What does 80+ Gold certification mean?
80+ Gold certification means the PSU converts at least 87–90% of input power to usable output across different load levels. This reduces energy waste, lowers electricity costs, and generates less heat than lower-efficiency units.
Is the DeepCool PQ750G WH suitable for high-end gaming PCs?
Yes. The 750W output and 80+ Gold efficiency make it well-suited for high-end gaming systems. Stable power delivery via Japanese capacitors and advanced topology ensures reliable performance for demanding GPUs and multi-core CPUs.
What is FDB bearing technology?
FDB (Fluid Dynamic Bearing) uses a fluid-filled chamber to support the fan shaft, reducing friction and wear. This enables quieter, more efficient fan operation and extended bearing life compared to traditional ball bearings.
Are the cables removable?
Yes. The PQ750G WH is fully modular, meaning all cables detach from the PSU. This simplifies cable management, reduces clutter, and improves case airflow.
What protections does the PQ750G WH include?
The unit features OPP (overpower), OVP (overvoltage), SCP (short-circuit), OTP (overtemperature), OCP (overcurrent), UVP (undervoltage), SIP (surge input protection), and NLO (no-load operation) protection to safeguard your system.
What is the warranty period?
The DeepCool PQ750G WH comes with a 120-month (10-year) warranty, backed by a 100,000-hour MTBF rating for long-term reliability.
Does this PSU work in data centre environments?
Yes. The 0–40°C operating range, high efficiency rating, and comprehensive protections make it suitable for professional and data centre applications requiring certified power delivery.
