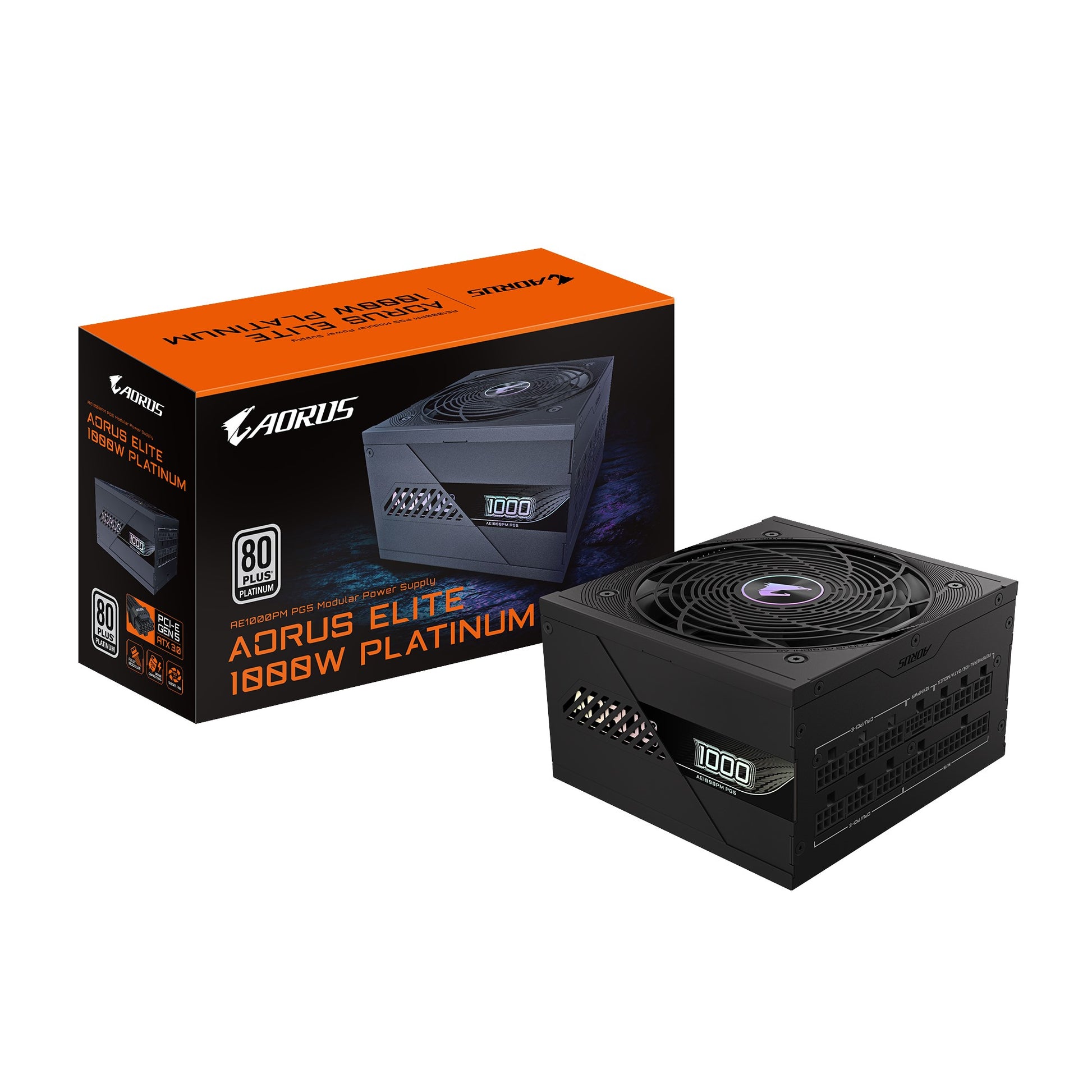

Gigabyte GP-AE1000PM PG5 1000W ATX Power Supply
Gigabyte GP-AE1000PM PG5 1000W ATX Power Supply
SKU:PSG-GP-AE1000PMPG5
Couldn't load pickup availability
- See our return policy
- 120 months (10 years) Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-GP-AE1000PMPG5 |
| Availability | In Stock |
Overview
- The Gigabyte GP-AE1000PM PG5 is a 1000W ATX power supply built for systems that demand consistent, reliable power. With 80 PLUS Platinum certification and 92% efficiency at typical load, it minimises wasted energy and heat generation, reducing operational costs and extending component lifespan.
This unit features Active Power Factor Correction (>0.9) to maintain stable voltage delivery across variable input conditions, making it suitable for both domestic and commercial environments. The 120mm Fluid Dynamic Bearing fan ensures whisper-quiet operation while maintaining effective thermal management over extended use periods.
Comprehensive protection circuitry—including overvoltage, overcurrent, short-circuit, and thermal protections—safeguards connected hardware. With a rated >100,000 hour MTBF and 10-year warranty, this supply is engineered for longevity in mission-critical applications.
Specifications
| Model | GP-AE1000PM PG5 |
|---|---|
| Output Capacity | 1000W |
| Form Factor | Intel ATX 12V v3.0 |
| Efficiency Rating | 80 PLUS Platinum |
| Peak Efficiency | 92% at typical load |
| Input Voltage | 100–240 Vac (full range) |
| Input Current | 15–6.5A |
| Input Frequency | 50–60 Hz |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Cooling | 120mm Fluid Dynamic Bearing (FDB) fan |
| Dimensions | 150 × 140 × 86 mm |
| Cable Type | Flat, all black |
| Power Good Signal | 100–150 ms |
| Hold Up Time | >16 ms |
| MTBF | >100,000 hours |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP |
| Warranty | 120 months (10 years) |
| Connectors | {"ATX/MB 20+4 Pin"=>"1× 650 mm", "CPU/EPS 4+4 Pin"=>"2× 700 mm", "PCI-e 16 Pin"=>"1× 700 mm", "PCI-e 6+2 Pin"=>"2× (650 mm + 150 mm), 2× 750 mm", "SATA"=>"8× (600 mm + 150 mm + 150 mm + 150 mm)", "4-Pin Peripheral"=>"4× (500 mm + 150 mm + 150 mm + 150 mm)"} |
Key Features
Ideal For
FAQs
What does 80 PLUS Platinum mean?
80 PLUS Platinum is an independent certification indicating the power supply maintains at least 90% efficiency across load conditions. The Gigabyte GP-AE1000PM PG5 achieves 92% efficiency at typical load, meaning less energy is wasted as heat and lower electricity bills.
Is this power supply suitable for gaming systems?
Yes. With 1000W capacity, 80 PLUS Platinum efficiency, and comprehensive protection circuitry, it is well-suited for high-performance gaming PCs and workstations. The quiet 120mm FDB fan ensures minimal noise during gameplay.
What is Active Power Factor Correction (PFC)?
Active PFC corrects the phase difference between voltage and current, ensuring more efficient power delivery. The GP-AE1000PM PG5's >0.9 PFC rating ensures stable operation in varying power conditions and reduces strain on power infrastructure.
How long is the warranty?
The Gigabyte GP-AE1000PM PG5 includes a 10-year (120-month) warranty, reflecting its durability and Gigabyte's confidence in the product's longevity.
What protection features does this power supply include?
It features OVP (overvoltage), OPP (overcurrent), SCP (short-circuit), UVP (undervoltage), OCP (overload), and OTP (thermal) protections. These safeguard both the power supply and connected hardware from electrical faults.
What is the MTBF and why does it matter?
MTBF (Mean Time Between Failures) of >100,000 hours indicates the average time before a failure is expected. For the GP-AE1000PM PG5, this translates to over 11 years of continuous operation, demonstrating exceptional reliability.
Does it come with enough connectors for modern systems?
Yes. It includes 1× ATX 20+4 pin, 2× CPU/EPS 4+4 pins, 1× PCI-e 16-pin, 6× PCI-e 6+2 pins, 8× SATA, and 4× 4-pin peripheral connectors with generous cable lengths for flexible routing.
