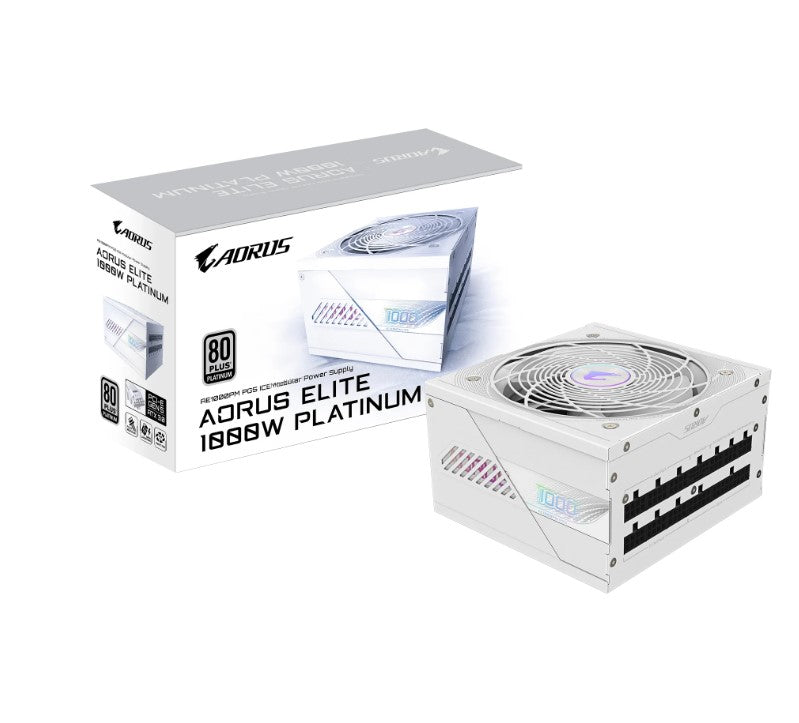

Gigabyte GP-AE1000PM PG5 ICE 1000W ATX Power Supply
Gigabyte GP-AE1000PM PG5 ICE 1000W ATX Power Supply
SKU:PSG-GPAE1000PMPG5ICE
The Gigabyte GP-AE1000PM PG5 ICE is a 1000W ATX power supply designed for high-performance workstations and gaming systems. Featuring 80 PLUS Platinum efficiency, a 120mm FDB fan, and comprehensive protection circuits, it delivers reliable power and optimal thermal performance for demanding builds.
Couldn't load pickup availability
- See our return policy
- 120 months (10 years) Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-GPAE1000PMPG5ICE |
| Availability | In Stock |
Overview
- The Gigabyte GP-AE1000PM PG5 ICE is a premium 1000W power supply built for systems that demand unwavering stability and efficiency. With 80 PLUS Platinum certification and 92% efficiency at typical loads, it minimises power waste and operating costs while keeping your system cool and responsive.
Designed around the Intel ATX 12V v3.0 standard, this PSU delivers clean, regulated power across multiple rail configurations suitable for high-end graphics cards, processors, and storage devices. The 120mm Fluid Dynamic Bearing fan operates quietly under load, whilst comprehensive protection circuits guard against over-voltage, under-voltage, over-current, and thermal issues.
With a MTBF exceeding 100,000 hours and a 10-year warranty, this is a long-term investment in system stability. The flat white cable design adds professional aesthetics whilst optimising internal airflow. Ideal for builders and businesses seeking reliable power delivery for high-performance or mission-critical systems.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | GP-AE1000PM PG5 ICE |
| Product Type | ATX Power Supply |
| Capacity | 1000W |
| Form Factor | Intel ATX 12V v3.0 |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Efficiency Rating | 80 PLUS Platinum |
| Efficiency at Typical Load | 92% |
| Fan | 120mm Fluid Dynamic Bearing (FDB) |
| Dimensions | 150 x 140 x 86mm |
| Cable Type | Flat, all white |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 hours |
| Protection Features | OVP (Over-voltage), OPP (Over-power), SCP (Short-circuit), UVP (Under-voltage), OCP (Over-current), OTP (Over-temperature) |
| Connectors | ATX/MB 20+4 pin (x1), CPU/EPS 4+4 pin (x2), PCI-e 16 pin (x1), PCI-e 6+2 pin (x6), SATA (x8), 4-pin peripheral (x4) |
| Warranty | 120 months (10 years) |
Key Features
Ideal For
FAQs
What does 80 PLUS Platinum certification mean?
80 PLUS Platinum is an energy efficiency standard that ensures the power supply operates at 90% or higher efficiency under typical loads. This reduces power waste, lowers electricity costs, and generates less heat compared to lower-rated supplies.
Is this PSU suitable for high-end graphics cards?
Yes. The GP-AE1000PM PG5 ICE includes six PCI-e 6+2 pin connectors, making it capable of powering multiple high-end graphics cards in demanding gaming or workstation builds.
What is MTBF and why does it matter?
MTBF (Mean Time Between Failures) of over 100,000 hours indicates the expected operating life of the power supply. A higher MTBF rating suggests greater reliability and longer usable lifespan before failure.
Does this power supply support older systems?
Yes. The full-range input voltage (100-240V) and 60-50 Hz support make it compatible with power standards across different regions and older system architectures.
How long is the warranty?
The Gigabyte GP-AE1000PM PG5 ICE comes with a 10-year warranty, providing comprehensive coverage for parts and labour.
What does the flat white cable design offer?
Flat white cables improve the aesthetics of your build and optimise internal airflow by taking up less space than traditional round cables, helping to maintain cooler system temperatures.
What protection circuits are included?
The PSU includes OVP (over-voltage), OPP (over-power), SCP (short-circuit), UVP (under-voltage), OCP (over-current), and OTP (over-temperature) protection to safeguard connected components.
