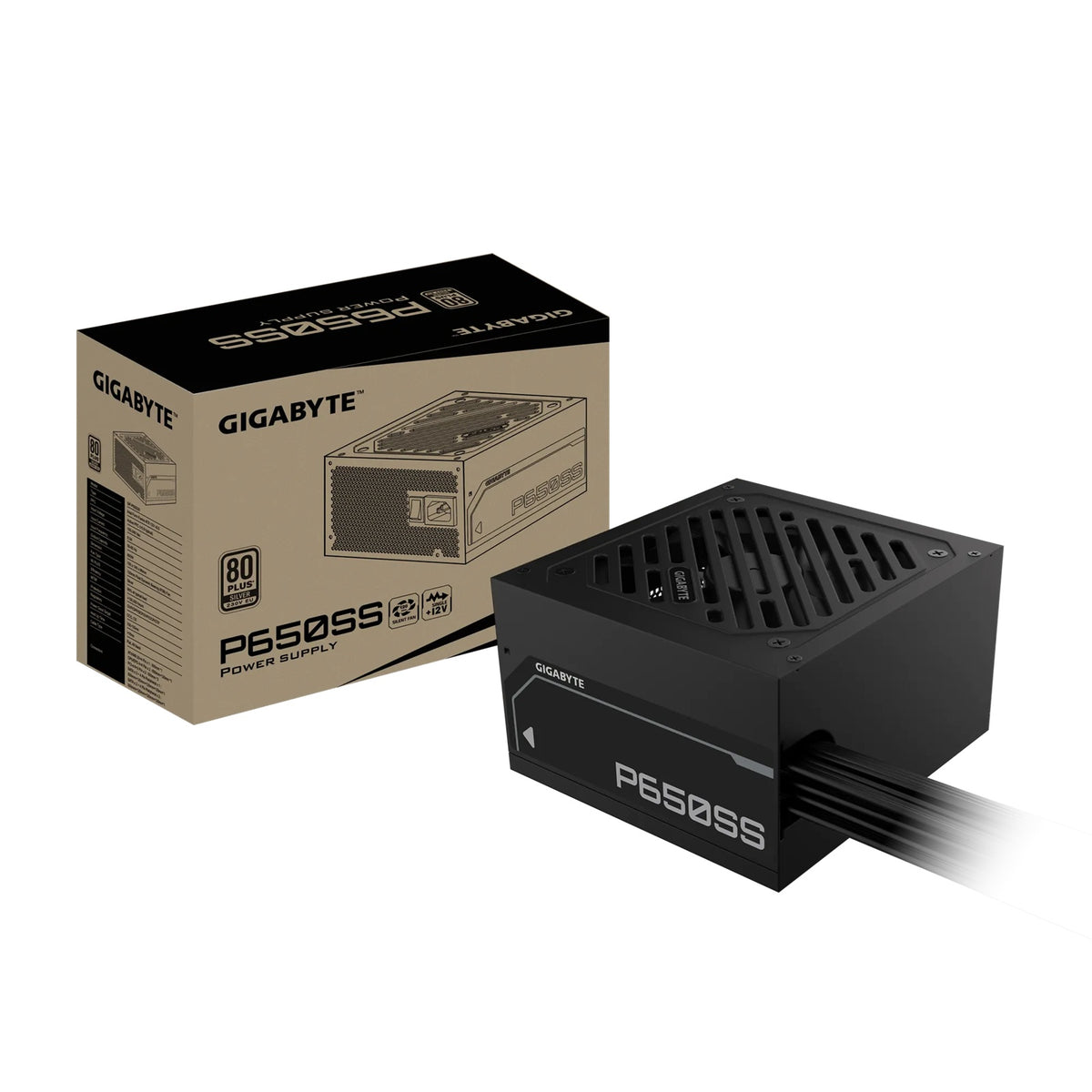

Gigabyte GP-P650SS 650W ATX Power Supply 80+ Silver
Gigabyte GP-P650SS 650W ATX Power Supply 80+ Silver
SKU:PSG-P650SS
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-P650SS |
| Availability | In Stock |
Overview
- The Gigabyte GP-P650SS is a 650W ATX power supply engineered for stable, efficient power delivery in mid-range computing systems. With 80+ Silver certification, it achieves 90% efficiency at typical loads, reducing operational costs and heat generation. The 120mm Fluid Dynamic Bearing fan operates quietly while maintaining excellent thermal performance, making it suitable for office environments and professional workstations.
Comprehensive protection circuitry (OVP, OPP, SCP, UVP, OCP, OTP) safeguards connected components against voltage fluctuations and power anomalies. Active PFC improves power factor to above 0.9, enhancing compatibility with varied electrical infrastructure. The modular flat black cable design simplifies case management and airflow optimisation.
With an MTBF rating exceeding 100,000 hours and a full 36-month warranty, this power supply delivers long-term value for organisations building or upgrading mid-range systems. Intel ATX 12V v3.0 compliance ensures compatibility with standard desktop motherboards.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | GP-P650SS |
| Form Factor | Intel ATX 12V v3.0 |
| Output Capacity | 650W |
| Efficiency Rating | 80+ Silver |
| Efficiency at Load | 90% at typical load (230V EU) |
| Input Voltage Range | 155–240 Vac |
| Input Current | 6.3A |
| Input Frequency | 50–60 Hz |
| Cooling System | 120mm Fluid Dynamic Bearing (FDB) fan |
| Power Factor Correction | Active PFC (>0.9 typical) |
| MTBF | >100,000 hours |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal | 100–500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, all black |
| Physical Dimensions | 150 x 140 x 86 mm |
| Motherboard Connector | ATX/MB 20+4 Pin x 1 (600mm) |
| CPU Power Connectors | EPS 4+4 Pin x 2 (650mm + 120mm) |
| PCIe Power Connectors | 6+2 Pin x 2 (600mm each) |
| SATA/Peripheral Connectors | SATA x 5, 4-Pin Peripheral x 3 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is the Gigabyte GP-P650SS suitable for high-end gaming systems?
The GP-P650SS with 650W output is designed for mid-range systems. High-end gaming rigs with multiple graphics cards or overclocking may require higher wattage. Check your system's total power draw before purchasing.
What does 80+ Silver certification mean?
80+ Silver means the power supply achieves at least 90% efficiency at typical loads (20–100% capacity). This reduces energy waste, lowers operating costs, and generates less heat compared to lower-rated supplies.
Does this power supply come with modular cables?
The GP-P650SS features flat black cables designed for clean cable management. Refer to the connector specifications for cable lengths and configurations.
What protection does the OVP/OPP/SCP/UVP/OCP/OTP provide?
These protections guard against overvoltage (OVP), overpower (OPP), short circuit (SCP), undervoltage (UVP), overcurrent (OCP), and overtemperature (OTP) conditions, safeguarding your system components.
What is the MTBF rating and what does it mean?
MTBF (Mean Time Between Failures) of >100,000 hours indicates the expected operating lifespan. This translates to approximately 11+ years of continuous operation, reflecting the supply's durability and reliability.
Will this power supply work with my existing ATX motherboard?
Yes. The GP-P650SS conforms to Intel ATX 12V v3.0 standard and includes standard ATX connectors (20+4 pin motherboard connector, EPS 4+4 CPU connectors) compatible with modern ATX systems.
How quiet is the 120mm fan?
The 120mm Fluid Dynamic Bearing (FDB) fan is engineered for quiet operation while maintaining effective cooling. FDB technology reduces noise compared to traditional sleeve-bearing fans.
What is the warranty coverage?
The Gigabyte GP-P650SS includes a 36-month manufacturer's warranty covering defects in materials and workmanship.
