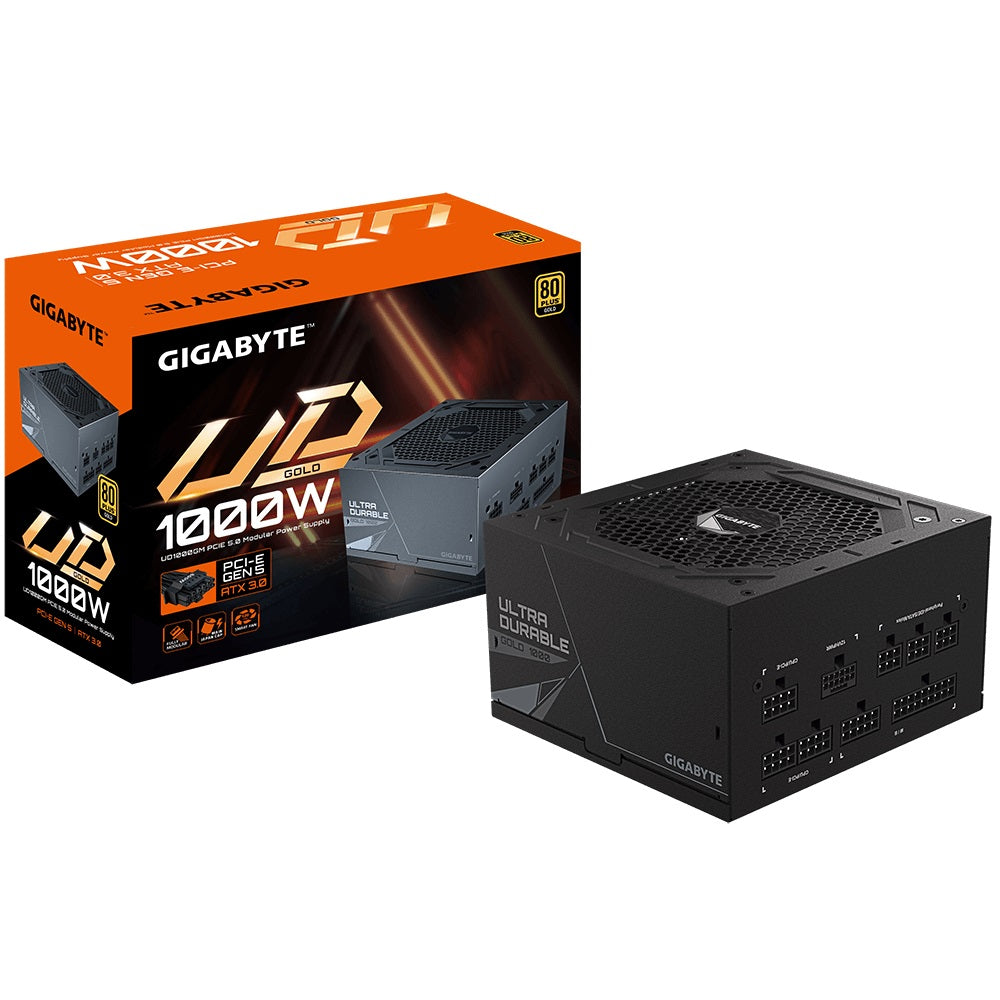

Gigabyte UD1000GM PG5 2.0 1000W ATX Power Supply
Gigabyte UD1000GM PG5 2.0 1000W ATX Power Supply
SKU:PSG-UD1000GMPG5-2.0
Couldn't load pickup availability
- See our return policy
- 10 years Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-UD1000GMPG5-2.0 |
| Availability | In Stock |
Overview
- The Gigabyte UD1000GM PG5 2.0 is a premium 1000W fully modular ATX power supply built for demanding systems and next-generation components. With 80+ Gold certification and >90% efficiency at typical loads, it delivers stable power while minimising energy waste and heat generation.
Designed for compatibility with the latest standards, this PSU supports PCIe Gen 5.0 graphics cards and Intel ATX 3.0, making it future-proof for high-end gaming and workstation builds. The compact form factor (150 x 140 x 86mm) fits easily into space-constrained cases without compromising cooling or cable routing.
Built with Japanese main capacitors and an enhanced thermal solution, the UD1000GM PG5 2.0 ensures durability and longevity. The 120mm hydraulic bearing fan operates intelligently to maintain cool temperatures while remaining quiet, and comprehensive protection circuits safeguard connected components against power anomalies.
With fully modular flat black cables, builders enjoy clean, efficient case builds. The 10-year warranty and >100,000-hour MTBF provide confidence for systems that demand reliability.
Specifications
| Model | GP-UD1000GM PG5 |
|---|---|
| Form Factor | Intel ATX 12V v3.0 |
| Output Capacity | 1000W |
| Efficiency Rating | 80+ Gold |
| Efficiency at Typical Load | >90% |
| Input Voltage | 100–240 VAC (full range) |
| Input Current | 15–6.5A |
| Input Frequency | 50–60 Hz |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Dimensions | 150 x 140 x 86 mm |
| Fan | 120mm hydraulic bearing (HYB) fan |
| Cable Type | Fully modular, flat, all black |
| MTBF | >100,000 hours |
| Hold Up Time | >16ms |
| Power Good Signal | 100–150ms |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP |
| Connectors | {"ATX/Motherboard"=>"20+4 Pin x 1 (610mm)", "CPU/EPS"=>"4+4 Pin x 2 (600mm + 200mm)", "PCIe"=>"16 Pin x 1 (700mm), 6+2 Pin x 4 (600mm + 150mm)", "SATA"=>"8x (600mm + 150mm + 150mm + 150mm)", "Peripheral"=>"4 Pin x 3 + 4-Pin Floppy x 1 (500mm + 120mm + 120mm + 150mm)"} |
| Warranty | 10 years |
Key Features
Ideal For
FAQs
Is the Gigabyte UD1000GM PG5 2.0 compatible with PCIe Gen 5.0 graphics cards?
Yes. The UD1000GM PG5 2.0 is specifically designed to support PCIe Gen 5.0 graphics cards and complies with Intel ATX 3.0 standard, making it suitable for latest-generation high-performance GPUs.
What does 80+ Gold certification mean?
80+ Gold means the power supply is independently certified to convert at least 90% of input power into usable output power at typical loads. This reduces energy waste, lowers electricity costs, and generates less heat than lower-rated supplies.
Is this power supply fully modular?
Yes. The UD1000GM PG5 2.0 features a fully modular design with flat black cables, allowing you to connect only the cables you need and achieve cleaner cable management inside your case.
How long is the warranty?
The Gigabyte UD1000GM PG5 2.0 comes with a 10-year warranty (adjusted according to regional requirements).
What protection does this PSU provide?
The UD1000GM PG5 2.0 includes comprehensive protection: Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Current Protection (OCP), and Over Temperature Protection (OTP).
What is the MTBF and why does it matter?
MTBF (Mean Time Between Failures) is >100,000 hours, indicating the expected operating life before failure. This high rating reflects durability and reliability, making the PSU suitable for systems requiring long-term stability.
Will this PSU fit in compact PC cases?
Yes. At 150 x 140 x 86mm, the UD1000GM PG5 2.0 has a compact form factor designed to fit in space-constrained builds without sacrificing thermal performance or cable routing flexibility.
