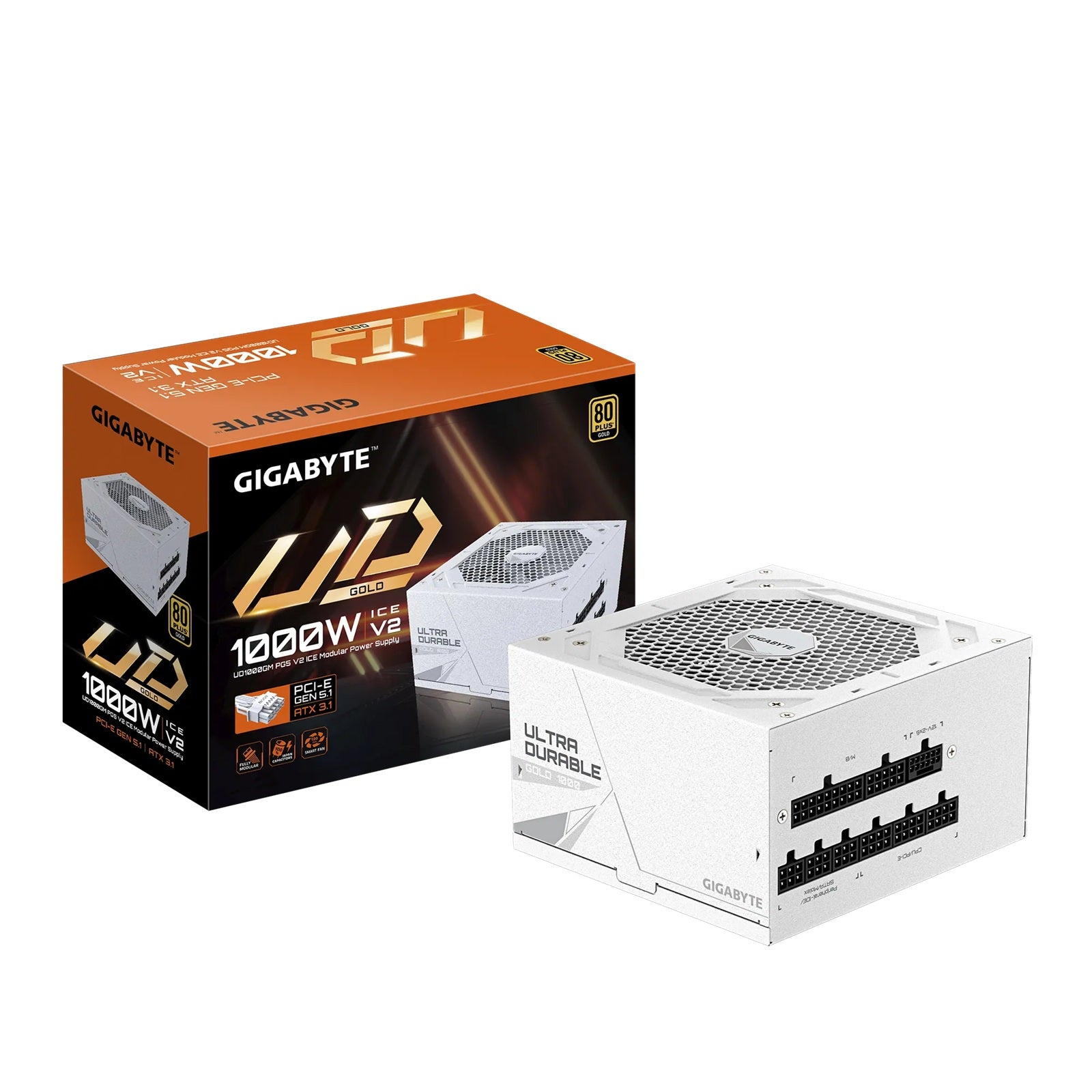

Gigabyte UD1000GM PG5 ICE 1000W ATX Power Supply
Gigabyte UD1000GM PG5 ICE 1000W ATX Power Supply
SKU:PSG-UD1000GMPG5ICE
The Gigabyte UD1000GM PG5 ICE is a 1000W fully modular ATX power supply designed for high-performance workstations and gaming systems. Featuring 80 PLUS Gold efficiency, PCIe Gen 5.0 support, and Intel ATX 3.0 compatibility, it delivers reliable power for demanding configurations.
Couldn't load pickup availability
- See our return policy
- 120 Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-UD1000GMPG5ICE |
| Availability | In Stock |
Overview
- The Gigabyte UD1000GM PG5 ICE is a premium 1000W power supply engineered for demanding systems that require stable, efficient power delivery. With 80 PLUS Gold certification, it maintains over 90% efficiency at typical loads, translating to lower operational costs and reduced heat output.
This unit stands out with its full modularity and flat cable design, enabling cleaner system builds and improved airflow. The 120mm hydraulic bearing fan operates intelligently to maintain optimal cooling without excessive noise, whilst comprehensive protection circuits safeguard against voltage fluctuations, overcurrent, and thermal issues.
Gigabyte's focus on quality is evident through the use of Japanese main capacitors and a robust design targeting >100,000 hours mean time between failures. Support for both PCIe Gen 5.0 graphics cards and Intel ATX 3.0 standard ensures compatibility with next-generation high-performance components.
Backed by a 10-year warranty, the UD1000GM PG5 ICE is an investment in system stability and longevity for professionals, builders, and enthusiasts who demand reliability alongside performance.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | UD1000GM PG5 ICE |
| Manufacturer SKU | GP-UD1000GM PG5 |
| Product Type | ATX Power Supply |
| Form Factor | Intel ATX 12V |
| Output Capacity | 1000W |
| Efficiency Rating | 80 PLUS Gold |
| Peak Efficiency | >90% at typical load |
| Input Voltage | 100-240 VAC (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 50-60 Hz |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Modular Design | Fully modular |
| Fan | 120mm hydraulic bearing (HYB) smart fan |
| Cable Type | Flat, black |
| Dimensions | 150 x 140 x 86 mm |
| MTBF | >100,000 hours |
| Hold-Up Time | >16 ms |
| Power Good Signal | 100-150 ms |
| Protection Features | OVP/OPP/SCP/UVP/OCP/OTP |
| Main Capacitors | Japanese |
| Connectors | {"ATX/Motherboard"=>"20+4 pin x1 (610mm)", "CPU/EPS"=>"4+4 pin x2 (600mm, 200mm)", "PCIe 16 pin"=>"1x (700mm)", "PCIe 6+2 pin"=>"4x (600mm, 150mm each)", "SATA"=>"8x (600mm, 150mm, 150mm, 150mm)", "Peripheral 4-pin"=>"3x (500mm, 120mm, 120mm)", "Floppy 4-pin"=>"1x (150mm)"} |
| PCIe Gen 5.0 Support | Yes |
| Intel ATX 3.0 Compatibility | Yes |
| Warranty | 10 years |
| Warranty (Months) | 120 |
Key Features
Ideal For
FAQs
Is the Gigabyte UD1000GM PG5 ICE suitable for RTX 40-series or high-end gaming graphics cards?
Yes. With 1000W output and support for PCIe Gen 5.0, it provides ample power for high-end graphics cards including RTX 40-series and AMD Radeon RX 7000-series cards, along with the necessary 16-pin connectors and additional 6+2 pin connectors.
What does 80 PLUS Gold certification mean?
80 PLUS Gold means the power supply maintains at least 90% efficiency at typical loads, converting more of your electricity into usable power and generating less waste heat. This reduces energy costs and improves system stability.
Is this power supply fully modular?
Yes. The UD1000GM PG5 ICE features fully modular cables, allowing you to connect only the cables you need. This enables cleaner cable management, improves airflow, and simplifies system builds.
What protection features does this power supply include?
The unit includes comprehensive protection: Over-Voltage Protection (OVP), Over-Power Protection (OPP), Short-Circuit Protection (SCP), Under-Voltage Protection (UVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP).
How long is the warranty on this power supply?
The Gigabyte UD1000GM PG5 ICE includes a 10-year manufacturer's warranty, providing long-term peace of mind for your investment.
Will this power supply support Intel ATX 3.0 standard components?
Yes. The power supply is fully compliant with Intel ATX 3.0 standard, ensuring compatibility with the latest motherboards and future-proof system builds.
What is the physical size of this power supply?
Dimensions are 150 x 140 x 86 mm (W x H x D), making it a compact unit suitable for most standard ATX cases without excessive size constraints.
Does the 120mm fan operate continuously or only when needed?
The 120mm hydraulic bearing smart fan operates intelligently, ramping up cooling as needed based on thermal conditions. This reduces noise during light loads whilst maintaining optimal temperatures under load.
