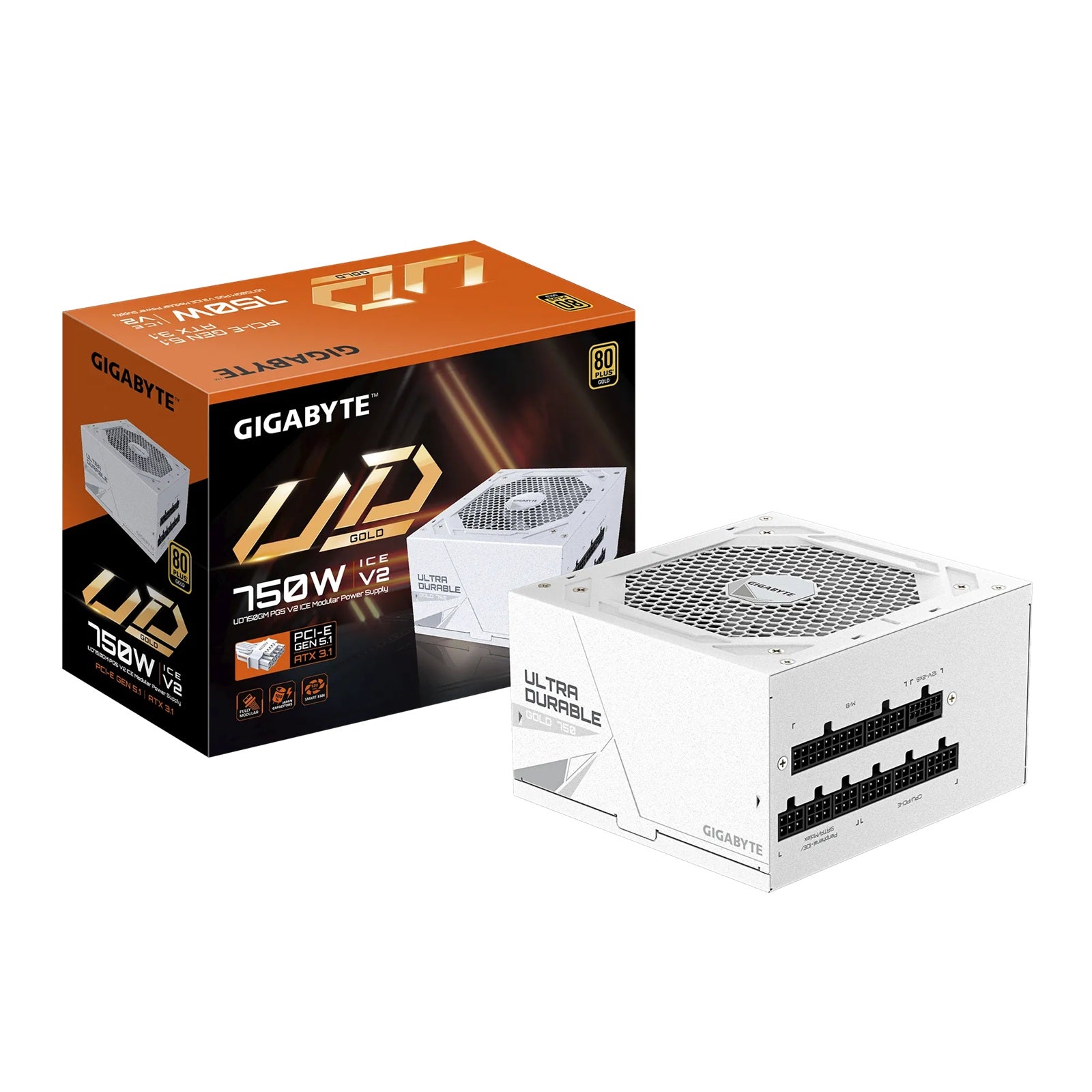

Gigabyte UD750GM ICE PG5 750W ATX Power Supply
Gigabyte UD750GM ICE PG5 750W ATX Power Supply
SKU:PSG-UD750GMPG5ICE
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-UD750GMPG5ICE |
| Availability | In Stock |
Overview
- The Gigabyte UD750GM ICE PG5 is a premium 750W ATX power supply designed for demanding modern computing environments. Built with 80+ Gold certification, this unit delivers >90% efficiency at typical load, reducing energy costs and heat generation in your system. Full support for PCIe Gen 5.0 graphics cards and Intel ATX 3.0 standards ensures compatibility with current and next-generation hardware.
Engineered for durability, the UD750GM features a 120mm hydraulic bearing fan, comprehensive power protection circuitry, and an MTBF rating exceeding 100,000 hours. The all-black flat cable design improves airflow management and system aesthetics, while the single +12V rail provides stable power delivery across multiple components.
Backed by a 5-year warranty, this power supply is ideal for IT professionals, system integrators, and businesses seeking reliable, future-proof power delivery for workstations, gaming systems, and enterprise builds.
Specifications
| Model | GP-UD750GM PG5 |
|---|---|
| Output Capacity | 750W |
| Efficiency Rating | 80+ Gold |
| Efficiency at Typical Load | ≥90% |
| MTBF | >100,000 hours |
| Input Voltage Range | 100–240 VAC (full range) |
| Input Frequency | 50–60 Hz |
| Input Current | 12–6A |
| Active PFC | >0.9 typical |
| Fan Type | 120mm Hydraulic Bearing (HYB) |
| Cable Type | All-black flat cables |
| Hold-Up Time | >16ms |
| Power Good Signal | 100–150ms |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP |
| Connectors | ATX/MB 20+4 Pin (1×), CPU/EPS 4+4 Pin (2×), PCIe 16 Pin (1×), PCIe 6+2 Pin (4×), SATA (8×), 4-Pin Peripheral (3×), 4-Pin Floppy (1×) |
| Dimensions | 150 × 140 × 86mm |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
Is the Gigabyte UD750GM compatible with PCIe Gen 5.0 graphics cards?
Yes, the UD750GM ICE PG5 is specifically designed to support PCIe Gen 5.0 graphics cards and Intel ATX 3.0 standard hardware.
What does 80+ Gold certification mean?
80+ Gold certification indicates that the power supply achieves at least 90% efficiency at typical load. This reduces energy waste, lowers electricity costs, and generates less heat in your system.
What protection features does this power supply include?
The UD750GM includes comprehensive protection: Over-Voltage Protection (OVP), Over-Power Protection (OPP), Short-Circuit Protection (SCP), Under-Voltage Protection (UVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP).
How long will this power supply last?
With an MTBF (Mean Time Between Failures) rating exceeding 100,000 hours and a 5-year manufacturer warranty, the UD750GM is designed for long-term reliability in demanding environments.
Why are flat cables better than standard round cables?
All-black flat cables improve airflow inside your case by taking up less space and blocking less air movement, resulting in better cooling efficiency and system performance.
What does a single +12V rail mean?
A single +12V rail consolidates all 12V power delivery through one rail, simplifying power distribution and providing more stable voltage output across all connected components.
Is 750W enough for my gaming PC?
750W is suitable for high-end gaming systems with modern graphics cards. For systems with multiple high-power components or professional workloads, consider your specific hardware requirements.
