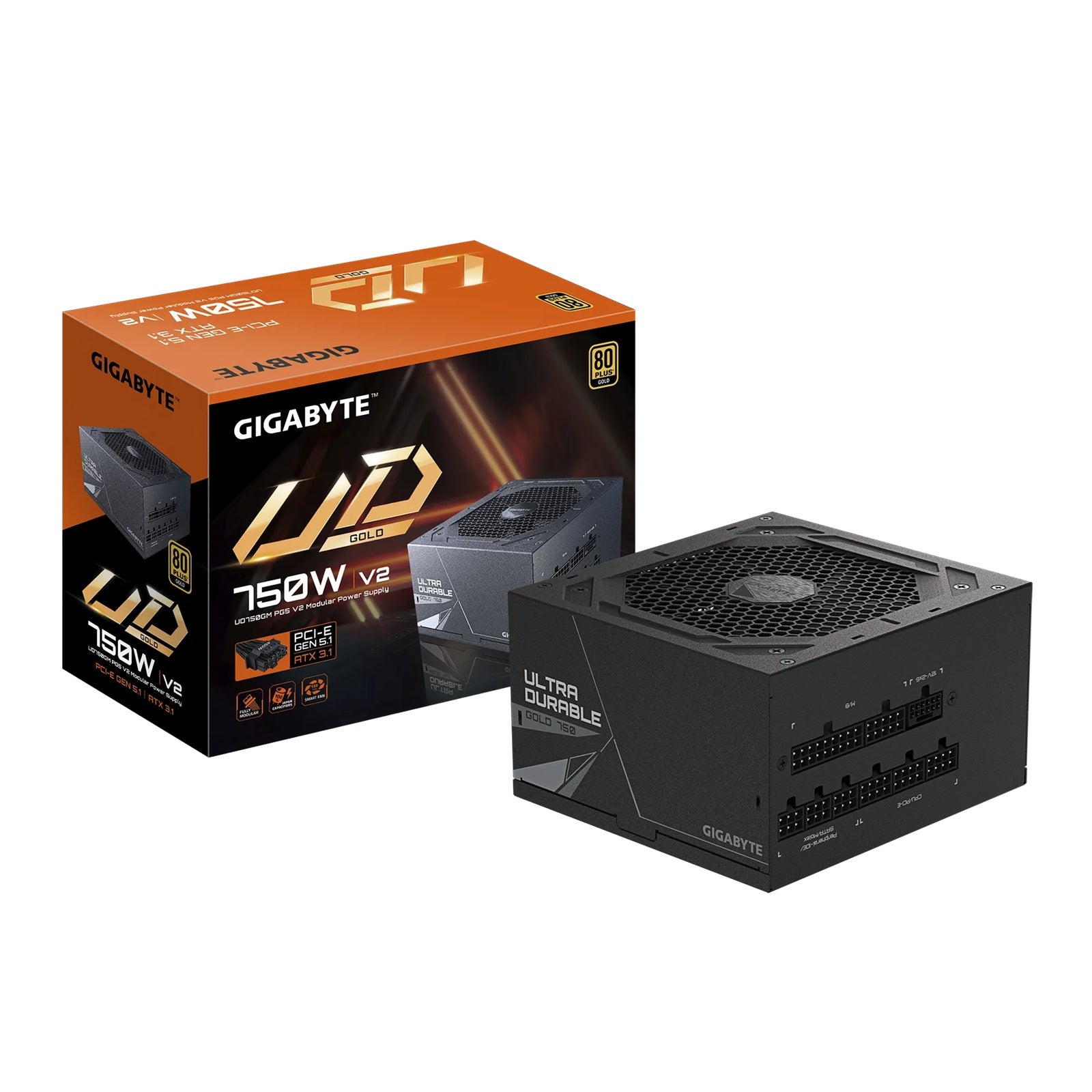

Gigabyte UD750GM PG5 V2 750W ATX Power Supply
Gigabyte UD750GM PG5 V2 750W ATX Power Supply
SKU:PSG-UD750GMPG5V2
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-UD750GMPG5V2 |
| Availability | In Stock |
Overview
- The Gigabyte UD750GM PG5 V2 is a professional-grade 750W ATX power supply engineered for demanding computing applications. With 80+ Gold efficiency certification, this unit delivers consistent power while minimising energy waste—an important consideration for businesses running continuous operations.
Built with Active PFC technology and a comprehensive suite of protection circuits (OVP, OPP, SCP, UVP, OCP, OTP), the UD750GM PG5 V2 safeguards expensive hardware components against voltage spikes, overload conditions, and thermal stress. The 120mm hydraulic bearing fan operates quietly while maintaining effective cooling.
Designed to support modern high-performance systems, the unit includes four PCIe 6+2 pin connectors and one PCIe 12+4 pin connector—sufficient for multiple graphics cards or demanding compute workloads. Black embossed cables enable clean cable management in professional installations. With an MTBF rating exceeding 100,000 hours, this power supply is built for longevity and reliable operation in production environments.
Specifications
| Model | GP-UD750GM PG5 V2 |
|---|---|
| Brand | Gigabyte |
| Form Factor | Intel ATX 12V v3.1 |
| Output Capacity | 750W |
| Efficiency Rating | 80+ Gold |
| Typical Efficiency | 90% |
| Input Voltage Range | 100-240 Vac (full range) |
| Input Current Range | 15-6.5A |
| Input Frequency | 50-60 Hz |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Fan Type | 120mm Hydraulic Bearing (HYB) |
| Cable Type | Embossed, all black |
| Dimensions | 150 x 140 x 86 mm |
| MTBF | >100,000 hours |
| Hold Up Time | >16 ms |
| Power Good Signal | 100-150 ms |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP |
| Motherboard Connector | ATX/MB 20+4 Pin x 1 (610mm) |
| CPU Connectors | EPS 4+4 Pin x 2 (650mm + 200mm) |
| PCIe 6+2 Pin Connectors | x 4 (600mm + 150mm, dual sets) |
| PCIe 12+4 Pin Connector | x 1 (700mm) |
| SATA Connectors | x 8 (600mm + 150mm + 150mm + 150mm, dual sets) |
| Peripheral Connectors | 4-pin x 3 + 4-pin floppy x 1 (500mm + 150mm + 150mm + 150mm) |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
Is the Gigabyte UD750GM PG5 V2 suitable for high-end graphics cards?
Yes. The unit includes four PCIe 6+2 pin connectors and one PCIe 12+4 pin connector, providing ample power connections for dual or multi-GPU configurations and modern high-end graphics cards.
What does 80+ Gold certification mean?
80+ Gold means the power supply achieves at least 90% efficiency at typical load conditions, reducing energy waste and heat generation. This translates to lower electricity costs and reduced cooling requirements for your system.
How long is the warranty period?
The Gigabyte UD750GM PG5 V2 includes a 60-month (5-year) warranty, providing comprehensive coverage for component defects and manufacturing faults.
What protection features does this power supply include?
The unit features comprehensive protection: OVP (Over-Voltage Protection), OPP (Over-Power Protection), SCP (Short-Circuit Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), and OTP (Over-Temperature Protection).
Will this power supply work with my existing PC components?
The UD750GM PG5 V2 uses the standard Intel ATX 12V v3.1 form factor and includes industry-standard connectors (ATX, EPS, PCIe, SATA, and peripheral), making it compatible with most modern systems. Verify your chassis supports a 150 x 140 x 86mm power supply.
How reliable is this unit for continuous operation?
With an MTBF (Mean Time Between Failures) rating exceeding 100,000 hours, the UD750GM PG5 V2 is engineered for reliable long-term operation in professional and demanding environments.
Does the power supply support international voltages?
Yes. The unit accepts 100-240 Vac input across its full range, making it compatible with standard power outlets worldwide, including Australian 230V mains.
