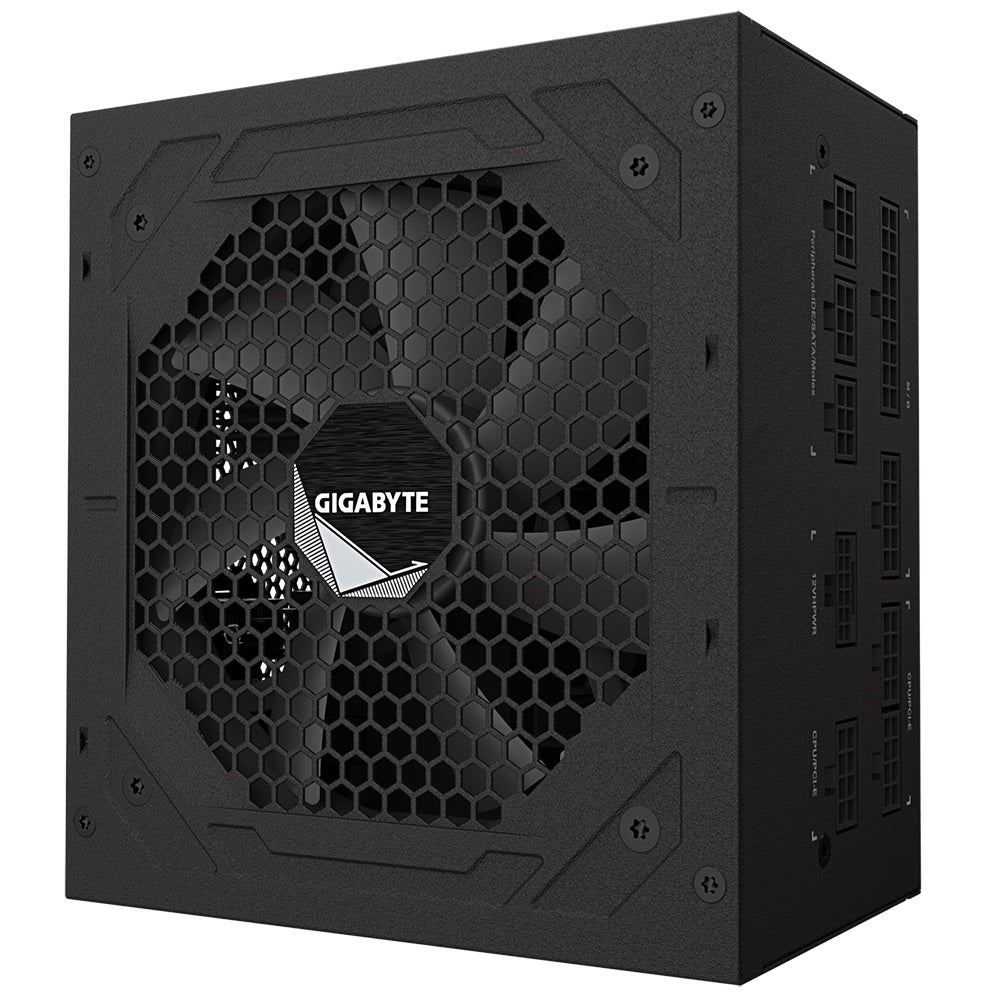

Gigabyte UD850GM PG5 2.0 850W ATX Power Supply
Gigabyte UD850GM PG5 2.0 850W ATX Power Supply
SKU:PSG-UD850GMPG5-2.0
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-UD850GMPG5-2.0 |
| Availability | In Stock |
Overview
- The Gigabyte UD850GM PG5 2.0 is a premium 850W ATX power supply built for demanding computing environments. With 80 PLUS Gold certification, it delivers 90% efficiency at typical loads, reducing operational costs and heat generation. The fully modular design allows cable management flexibility, essential for professional builds where airflow and aesthetics matter.
This unit is engineered for longevity, featuring main Japanese capacitors, an advanced thermal solution, and a 120mm hydraulic bearing fan rated for over 100,000 hours of operation. Its comprehensive protection suite—including overvoltage, overcurrent, short-circuit, and thermal protection—safeguards connected components.
With native PCIe Gen 5.0 and Intel ATX 3.0 standard support, the UD850GM is future-ready for next-generation high-end graphics cards and processors. The compact 150 x 140 x 86 mm form factor makes it suitable for both standard and space-constrained builds. Backed by a five-year warranty, this is a dependable choice for system integrators, content creators, and IT professionals.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | GP-UD850GM PG5 |
| Product Type | ATX Power Supply |
| Form Factor | Intel ATX 12V v3.0 |
| Output Capacity | 850W |
| Efficiency Certification | 80 PLUS Gold |
| Efficiency at Typical Load | 90% |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Input Voltage | 100–240 Vac (full range) |
| Input Current | 12–6A |
| Input Frequency | 50–60 Hz |
| Fan Type | 120mm Hydraulic Bearing (HYB) |
| MTBF | >100,000 hours |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal | 100–150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Fully Modular, Flat Black |
| Connectors | {"ATX/MB"=>"20+4 Pin x 1 (610 mm)", "CPU/EPS"=>"4+4 Pin x 2 (600 mm + 200 mm)", "PCI-e 12+4"=>"1x (700 mm)", "PCI-e 6+2"=>"4x (600 mm + 150 mm)", "SATA"=>"8x (600 mm + 150 mm + 150 mm + 150 mm)", "4-Pin Peripheral"=>"3x (500 mm + 120 mm + 120 mm)", "4-Pin Floppy"=>"1x (150 mm)"} |
| Dimensions | 150 x 140 x 86 mm |
| Warranty | 60 months (5 years) |
Key Features
Ideal For
FAQs
Is the Gigabyte UD850GM PG5 2.0 suitable for PCIe Gen 5.0 graphics cards?
Yes, the UD850GM PG5 2.0 is designed to support PCIe Gen 5.0 graphics cards and is compliant with the Intel ATX 3.0 standard, making it ideal for next-generation high-end GPUs.
What does 80 PLUS Gold certification mean?
80 PLUS Gold means the power supply converts at least 90% of input power to usable output power at typical loads. This high efficiency reduces energy waste, lowers electricity costs, and generates less heat.
Why is a fully modular design beneficial?
Fully modular cabling allows you to connect only the cables you need, improving case airflow, reducing clutter, and making builds cleaner and easier to manage, especially in compact cases.
What protection does this power supply offer?
The UD850GM includes comprehensive protection: OVP (overvoltage), OPP (overpower), SCP (short-circuit), UVP (undervoltage), OCP (overcurrent), and OTP (overtemperature) protection.
How long is the warranty on this unit?
The Gigabyte UD850GM PG5 2.0 comes with a five-year manufacturer's warranty covering defects in materials and workmanship.
Will this power supply fit in a compact or mini-ITX case?
Yes, the compact dimensions (150 x 140 x 86 mm) make it suitable for both standard and smaller form factor cases, though you should verify your specific case specifications.
What is the MTBF rating and what does it mean?
MTBF (Mean Time Between Failures) is rated at >100,000 hours, indicating the power supply is engineered for exceptional reliability and longevity, equivalent to over 11 years of continuous operation.
