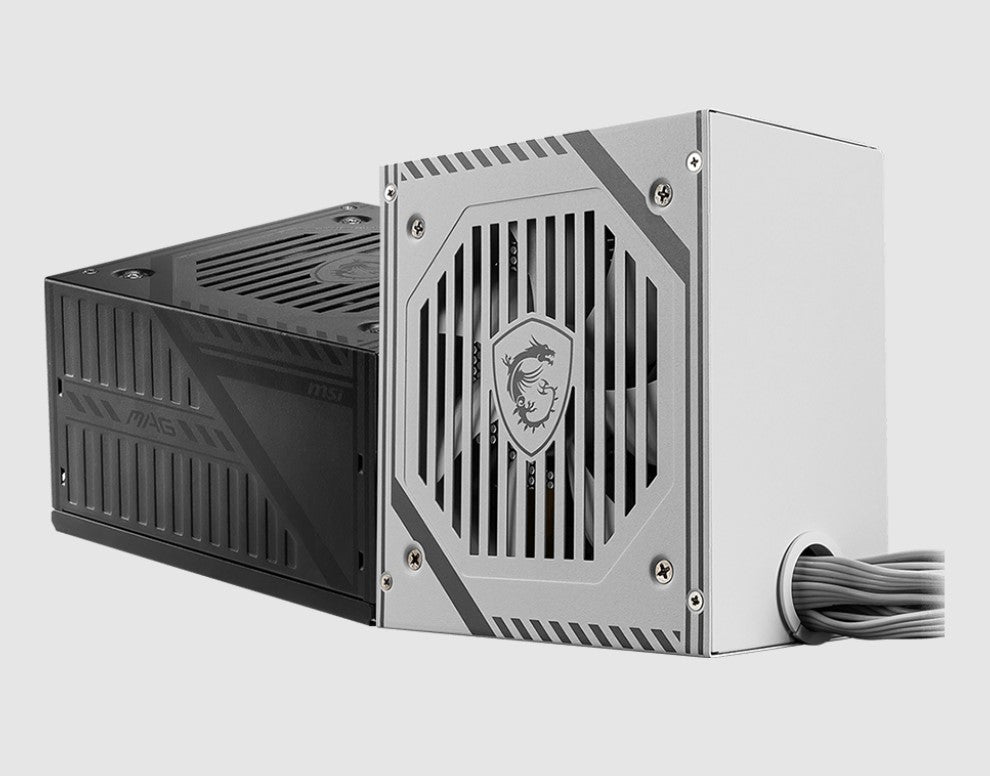

MSI MAG A650BNL WHITE 650W Power Supply
MSI MAG A650BNL WHITE 650W Power Supply
SKU:PSM-A650BNL-WHITE
Couldn't load pickup availability
- See our return policy
- 120 months (10 years) Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Power Supplies |
| SKU | PSM-A650BNL-WHITE |
| Availability | Out of Stock |
Overview
- The MSI MAG A650BNL WHITE is a robust 650W ATX power supply engineered for dependable performance in gaming and workstation environments. Its 80 PLUS Bronze certification ensures efficient power delivery with up to 85% efficiency, reducing energy costs and heat generation. Active PFC circuitry improves power quality and system stability across varying input conditions.
Designed with practical connectivity, the PSU features dual PCIe 6+2 connectors for high-end graphics cards, five SATA connectors for storage devices, and dual EPS connectors for CPU power delivery. The 120mm Hydro Bearing fan operates quietly while maintaining optimal thermal performance. Integrated protection circuits (OCP, OVP, OPP, SCP) shield connected hardware from voltage anomalies and overcurrent conditions.
Built to professional standards, this supply delivers consistent power across 50-60Hz input frequencies and 110-240V voltage ranges, making it suitable for Australian installations. The 10-year warranty demonstrates MSI's confidence in long-term reliability and provides substantial protection for business and enthusiast investments.
Specifications
| Power Output | 650W |
|---|---|
| Efficiency Rating | 80 PLUS Bronze (up to 85%) |
| Modular Design | Non-modular |
| Fan Size | 120mm |
| Fan Bearing Type | Hydro Bearing |
| PFC Type | Active PFC |
| Input Voltage Range | 110-240V AC |
| Input Frequency Range | 50-60Hz |
| Dimensions (DxWxH) | 150mm x 140mm x 86mm |
| Connector ATX 24-pin | 1 |
| Connector EPS 4+4 pin | 2 |
| Connector PCIe 6+2 pin | 2 |
| Connector SATA 15-pin | 5 |
| Connector Peripheral 4-pin | 2 |
| Connector FDD 4-pin | 1 |
| Protection Features | OCP (Over Current Protection), OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) |
| Warranty | 120 months (10 years) |
Key Features
Ideal For
FAQs
Is the MSI MAG A650BNL suitable for high-end graphics cards?
Yes. The PSU features dual PCIe 6+2 connectors and delivers stable 650W output, suitable for mid to high-end single GPU configurations. For dual-GPU systems, verify total power requirements against the 650W rating.
What does 80 PLUS Bronze certification mean?
80 PLUS Bronze indicates the PSU operates at minimum 82% efficiency at 20% load, 85% at 50% load, and 82% at 100% load. This reduces heat generation and lowers power consumption compared to non-certified supplies.
Does this PSU include modular cables?
No. The MAG A650BNL is a non-modular design, meaning all cables are permanently attached. This reduces cost and weight but requires cable management planning.
What protection does this power supply offer?
The PSU includes OCP (over current), OVP (over voltage), OPP (over power), and SCP (short circuit) protection. These safeguards prevent hardware damage from electrical faults.
Will this PSU work in Australia?
Yes. The MAG A650BNL accepts 110-240V AC input at 50-60Hz, covering Australian power standards. No step-down transformer is required.
How long is the warranty?
MSI provides a 10-year (120-month) warranty, covering manufacturing defects and performance issues.
