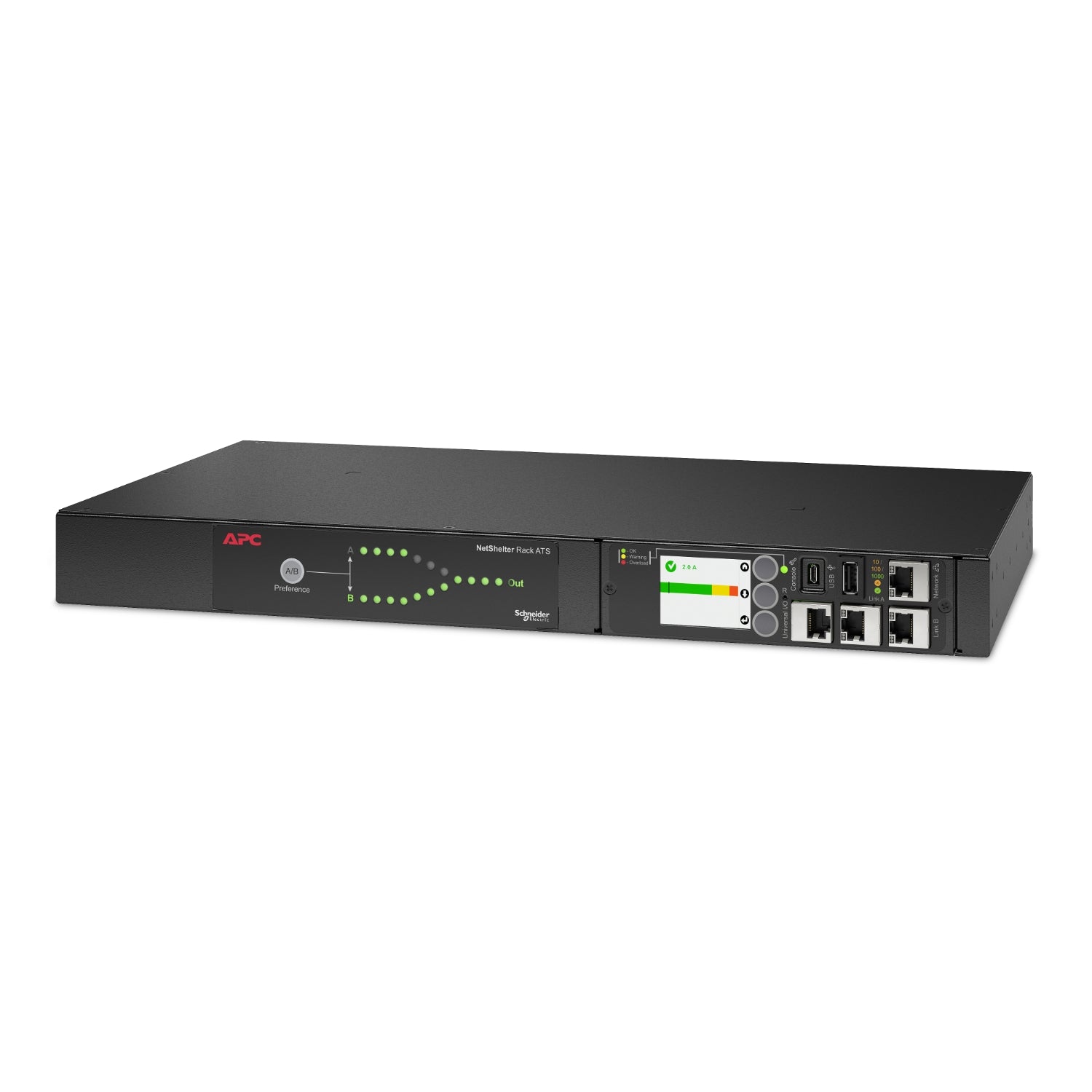

APC NetShelter AP4421A 1U Automatic Transfer Switch
APC NetShelter AP4421A 1U Automatic Transfer Switch
SKU:UPAPC-AP4421A
The APC NetShelter AP4421A is a 1U rack-mounted automatic transfer switch designed for IT environments requiring redundant power distribution. Featuring dual 230V/10A inputs, 12 IEC C13 outlets, and 2000VA capacity, it delivers reliable failover protection for single-corded equipment in data centre and server rack applications.
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-AP4421A |
| Availability | Out of Stock |
Overview
- The APC NetShelter AP4421A is a fifth-generation automatic transfer switch engineered to provide redundant power management for IT equipment in rack environments. It seamlessly switches between two independent 230V/10A power sources, ensuring continuous operation of single-corded devices without manual intervention.
With 12 IEC C13 output sockets and a 2000VA capacity, the AP4421A distributes power efficiently across server racks while protecting critical infrastructure from single-point power failures. The integrated APC NMC3 network management card enables remote monitoring and configuration via secure Web UI, SNMP, and command-line interfaces, allowing IT teams to manage power distribution alongside other infrastructure components.
Designed for operational reliability, the switch operates across extended temperature ranges (-5 to 45°C), supports 50/60Hz frequencies, and integrates seamlessly with EcoStruxure IT platforms for comprehensive facility management. The 24-month warranty and 5-year extended warranty options provide long-term protection and peace of mind.
Specifications
| Product Type | Automatic Transfer Switch |
|---|---|
| Model | AP4421A |
| Mounting Configuration | 1U Rack Mount |
| Input Voltage | 230V AC, Single Phase |
| Output Voltage | 230V AC, Single Phase |
| Input Connection Type | IEC 60320 C14, 10A, 2P+E |
| Number of Inputs | 2 |
| Input Rated Current | 10A |
| Output Connection Type | IEC 60320 C13, 10A, 2P+E |
| Number of Outputs | 12 |
| Maximum Load Capacity | 2000VA |
| Maximum Line Current | 10A |
| Permissible Input Voltage Range | 207-253V AC |
| Network Frequency | 50/60Hz |
| Protection Type | Automatic Transfer (no circuit breaker) |
| Network Management | APC NMC3 card with Web UI, SNMP, CLI |
| Operating Temperature | -5 to 45°C |
| Operating Humidity | 5 to 95% (non-condensing) |
| Operating Altitude | 0 to 10,000 feet |
| Storage Temperature | -25 to 65°C |
| Storage Humidity | 5 to 95% (non-condensing) |
| Storage Altitude | 0 to 15,240 metres |
| Product Certifications | EN 55022 Class A, FCC Part 15 Class A |
| Included Accessories | Mounting hardware, rack mounting brackets |
| Compatible Sensors | AP9335T, AP9335TH |
| Compatible Mounting Kits | AP7768, AP7769 |
| Standard Warranty | 24 months |
| Extended Warranty Available | 5 years |
Key Features
Ideal For
FAQs
What is an automatic transfer switch and why do I need one?
An automatic transfer switch (ATS) provides redundant power distribution by automatically switching equipment loads between two independent power sources. It eliminates manual failover, protects against single-point power failures, and ensures continuous operation of critical IT equipment in server racks.
Can the AP4421A handle my entire data centre power load?
The AP4421A has a maximum load capacity of 2000VA with 10A rated current per input. It is designed for single-corded equipment in IT racks. For larger installations, you may need multiple units or higher-capacity switches. Consult our sales team for your specific requirements.
What outlets does the AP4421A provide?
The switch provides 12 IEC C13 outlet sockets (the standard three-pin connector used by most IT equipment) and accepts two IEC C14 inputs. This configuration is ideal for distributing power from dual UPS units or power sources to a single rack.
How do I configure and monitor the AP4421A?
The integrated APC NMC3 network management card allows configuration and monitoring via secure Web UI, SNMP (Simple Network Management Protocol), and CLI (command-line interface). It is fully compatible with EcoStruxure IT for centralised infrastructure management.
Is the AP4421A compatible with my existing UPS and infrastructure?
The AP4421A is compatible with compatible sensors (AP9335T, AP9335TH) and mounting kits (AP7768, AP7769). It integrates with EcoStruxure IT platforms and standard 230V single-phase power systems operating at 50/60Hz. Confirm compatibility with your specific setup before purchase.
What is the warranty coverage?
The AP4421A comes with a standard 24-month warranty. APC also offers an extended 5-year warranty option for additional peace of mind and long-term protection.
What are the operating and storage temperature ranges?
The switch operates reliably between -5°C and 45°C, making it suitable for most data centre and server room environments. For storage, it tolerates temperatures from -25°C to 65°C, providing flexibility for transport and off-site storage.
Does the AP4421A require a circuit breaker?
The AP4421A does not include an integrated circuit breaker. It provides automatic transfer functionality without additional protection circuitry. Ensure your input power sources are protected upstream.
