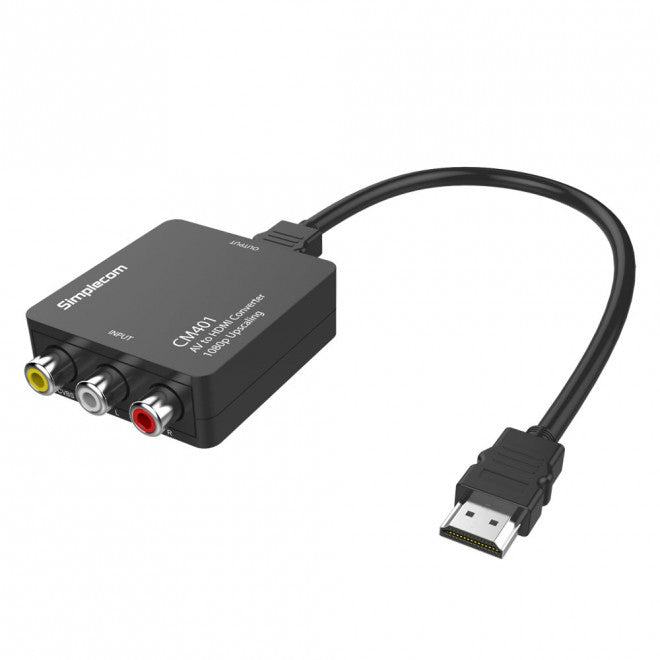

Simplecom CM401 Composite AV to HDMI Video Converter
Simplecom CM401 Composite AV to HDMI Video Converter
SKU:CBSI-CM401
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM401 |
| Availability | In Stock |
Overview
- The Simplecom CM401 bridges the gap between older analogue video equipment and modern HDMI displays. It accepts standard composite AV (yellow, red, and white RCA) connectors and converts the signal to HDMI while upscaling the video to either 720p or 1080p at 60Hz.
Simply connect your analogue source device to the RCA inputs, attach the included HDMI cable to your TV or monitor, and plug the USB power cable into any USB port or wall adapter. The converter's advanced signal processing engine delivers clean, colour-accurate video output with minimised distortion and noise.
Both video and audio signals are combined into the HDMI output, eliminating the need for separate audio connections. The switchable resolution output lets you select the best quality for your display. This is an ideal solution for businesses, creative professionals, and individuals needing to repurpose legacy analogue equipment in modern digital environments.
Specifications
| Brand | Simplecom |
|---|---|
| Model | CM401 |
| Product Type | Composite AV to HDMI Converter |
| Input | Composite AV (RCA) — Yellow (Video), Red (Right Audio), White (Left Audio) |
| Output | HDMI |
| Output Resolution | 720p or 1080p at 60Hz (switch selectable) |
| Video Standards Supported | NTSC, PAL |
| Audio Integration | Analogue audio embedded into HDMI output |
| Power Source | USB (5V) |
| Power Cable | USB cable included |
| Power Adapter | USB wall adapter included |
| Installation | Plug-and-play, no drivers required |
| Included Accessories | HDMI short cable, USB power cable, USB wall adapter |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What devices can I connect to the Simplecom CM401?
The CM401 works with any device featuring composite AV (RCA) outputs, including VCRs, DVD players, older camcorders, vintage game consoles, and analogue video equipment. It converts these signals to HDMI for use with modern TVs and monitors.
Do I need to install software or drivers?
No. The CM401 is plug-and-play. Simply connect your composite AV cables to the input, attach an HDMI cable to your display, and power it via USB. No software installation is required.
What power supply does the converter need?
The CM401 is powered by USB 5V. You can use the included USB wall adapter, or connect it to any available USB port on your TV, monitor, or computer.
Can I choose between 720p and 1080p output?
Yes. The CM401 features a switch that allows you to select either 720p or 1080p output (both at 60Hz). Choose based on your display's capability and preference.
Will the audio work with the HDMI connection?
Yes. The CM401 integrates both video and audio into the single HDMI output. Your red and white RCA audio connections are automatically combined with the video signal, so no separate audio cables are needed.
Does it support both NTSC and PAL video standards?
Yes. The CM401 automatically detects and supports both NTSC and PAL video standards, making it compatible with equipment from different regions worldwide.
What is included in the box?
The package includes the CM401 converter unit, an HDMI short cable, a USB power cable, and a USB wall adapter. Everything needed to get started is provided.
