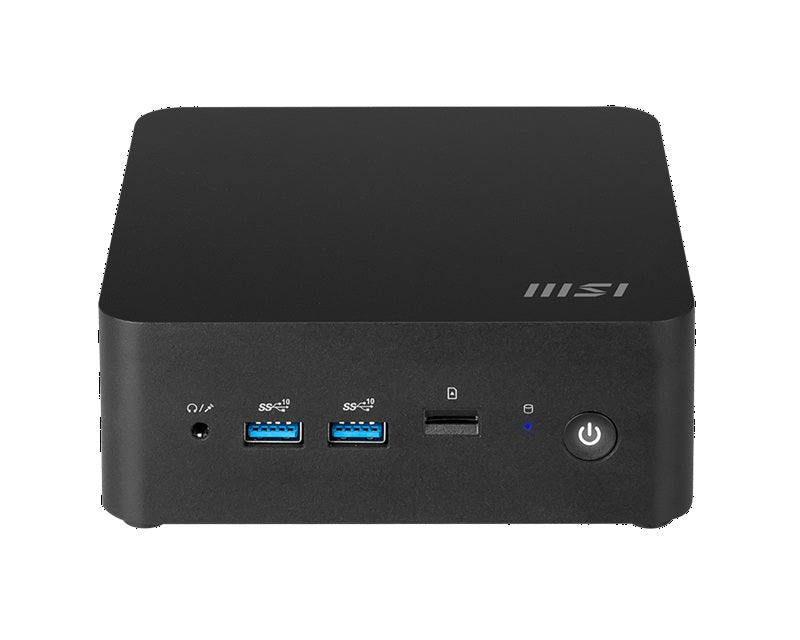

MSI Cubi NUC 1M Barebone Mini PC Intel Core 3-100U
MSI Cubi NUC 1M Barebone Mini PC Intel Core 3-100U
SKU:SYM-CUBINUC1M003BAU
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYM-CUBINUC1M003BAU |
| Availability | In Stock |
Overview
- The MSI Cubi NUC 1M is a space-saving barebone mini PC designed for businesses requiring compact computing without sacrificing performance. Powered by the Intel Core 3-100U processor, this system delivers efficient multi-threaded performance ideal for everyday business operations, whilst consuming just 15W of power—making it cost-effective to run continuously.
As a barebone system, it arrives ready for configuration with your choice of DDR5 memory and NVMe SSD storage, allowing procurement teams to customise specifications to exact business requirements. The dual M.2 slots and single 2.5-inch drive bay provide flexible storage options for various workloads and archival needs.
Connectivity is comprehensive, with WiFi 6E for fast wireless networking, dual HDMI outputs for multi-display setups, and Thunderbolt ports for high-speed peripherals. The included VESA mount kit enables wall or monitor mounting, making it ideal for retail, hospitality, and distributed office environments where space is at a premium.
Specifications
| Processor | Intel Core 3-100U |
|---|---|
| Cores / Threads | 6 cores / 8 threads |
| Base Clock Speed | 1.2GHz |
| Max Turbo Frequency | 4.7GHz |
| Cache | 10MB Intel Smart Cache |
| TDP | 15W |
| Chipset | SoC |
| Memory Slots | 2x SO-DIMM DDR5 |
| Maximum Memory | 64GB |
| M.2 Slots | 2x (NVMe) |
| 2.5" Drive Bays | 1x |
| Storage | Barebone configuration |
| Graphics | CPU Integrated Graphics |
| Audio | Realtek ALC256, 2.1 Channel HD Audio |
| Audio Connectors | 1x Mic-In / Headphone-Out Combo |
| WLAN | Intel AX211 (WiFi 6E + Bluetooth 5.3) |
| Bluetooth | 5.3 |
| USB Ports | 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 2 Type-A (Rear) |
| Thunderbolt Ports | 2x |
| HDMI Outputs | 2x HDMI 2.0 |
| Ethernet Ports | 2x RJ45 |
| Card Reader | 1x |
| Operating System | No OS (barebone) |
| Power Supply | AC adaptor included |
| Dimensions | Not specified |
| Weight | 1.45kg (gross) |
| Warranty | 12 months |
| Certifications | FCC (Class B), CB/CE, UL/CUL, BSMI, VCCI, RCM (C-Tick) |
| Accessories Included | AC adaptor, power cord, 2x quick guides, VESA mount kit |
Key Features
Ideal For
FAQs
What is included in the MSI Cubi NUC 1M barebone package?
The barebone system includes the chassis, motherboard with integrated Intel Core 3-100U processor, AC adaptor, power cord, 2x quick start guides, and a VESA mount kit. Memory, storage, and operating system are not included and must be purchased separately.
Can I upgrade the memory and storage after purchase?
Yes. The Cubi NUC 1M supports up to 64GB of DDR5 memory via two SO-DIMM slots, and features two M.2 slots for NVMe SSD storage plus one 2.5-inch drive bay, making it fully expandable.
What operating systems are compatible with the MSI Cubi NUC 1M?
The barebone system is compatible with Windows and Linux operating systems. Specific OS compatibility depends on driver availability, which can be verified on the MSI support website.
Is this suitable for multi-monitor setups?
Yes. The Cubi NUC 1M features dual HDMI 2.0 outputs, allowing you to connect two displays simultaneously for productivity or digital signage applications.
What is the power consumption of the MSI Cubi NUC 1M?
The Intel Core 3-100U processor has a 15W TDP (Thermal Design Power), making this a highly energy-efficient system suitable for continuous operation in office and retail environments.
Does the Cubi NUC 1M include WiFi and Bluetooth?
Yes. The system includes Intel AX211 WiFi 6E and Bluetooth 5.3, plus dual RJ45 Ethernet ports for wired network connectivity options.
Can the MSI Cubi NUC 1M be mounted on a wall or monitor?
Yes. The VESA mount kit is included, allowing the system to be mounted on walls, monitor backs, or other vertical surfaces for space-saving installations.
What warranty does the MSI Cubi NUC 1M come with?
The system includes a 12-month manufacturer's warranty covering hardware defects and faults under normal operating conditions.
