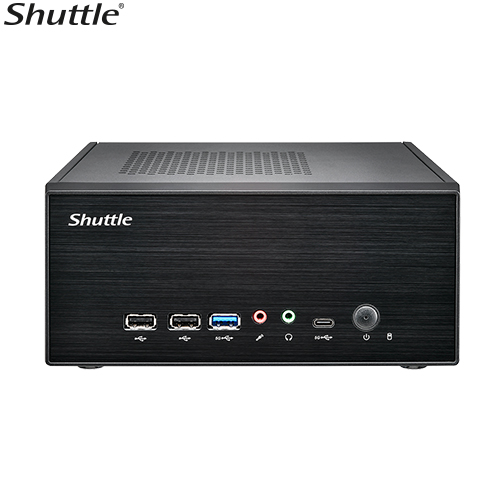

Shuttle XB860G2 Barebone System Intel Core Ultra
Shuttle XB860G2 Barebone System Intel Core Ultra
SKU:SYS-XB860G2
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-XB860G2 |
| Availability | In Stock |
Overview
- The Shuttle XB860G2 is a versatile barebone system designed for organisations requiring compact, efficient computing without the overhead of a full desktop or server. Built around the Intel B860 chipset, it supports the latest Core Ultra processors (9/7/5 series) and accommodates up to 96GB of DDR5 memory, making it capable of handling demanding multitasking and data-intensive workloads.
With its 5-litre chassis and multiple expansion options, the XB860G2 is ideal for deployments where space is limited but performance cannot be compromised. The dual LAN ports enable network redundancy and load balancing, while triple M.2 slots provide flexible storage configuration. Multiple video outputs support diverse display setups, from office environments to surveillance monitoring stations.
The system's optional modules—including 4G LTE and WiFi connectivity—make it suitable for remote and mobile applications where connectivity options are critical. The 36-month warranty provides peace of mind for business-critical deployments.
Specifications
| Brand | Shuttle |
|---|---|
| Model | XB860G2 |
| Product Type | Barebone System |
| Form Factor | 5 litres |
| Chipset | Intel B860 |
| Processor Socket | LGA1851 |
| Supported Processors | Intel Core Ultra 9, Core Ultra 7, Core Ultra 5 (65W) |
| Memory Slots | 2x DDR5 DIMM |
| Maximum Memory | 96GB |
| Storage Expansion | 3x M.2 2280 NVMe slots |
| Network Connectivity | 2x Gigabit LAN |
| Video Outputs | 2x HDMI, 1x DisplayPort |
| Expansion Slots | 1x PCIe x16, 1x PCIe x1 |
| Optional Modules | 4G LTE, WiFi, VGA |
| Power Supply | 180W |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with the Shuttle XB860G2?
The XB860G2 supports Intel Core Ultra 9, Core Ultra 7, and Core Ultra 5 series processors on the LGA1851 socket. All supported processors have a 65W TDP.
How much memory and storage can this system support?
The system supports up to 96GB of DDR5 memory via two DIMM slots. Storage expansion is available through three M.2 2280 NVMe slots.
Is this suitable for surveillance and security applications?
Yes, the XB860G2 is designed with surveillance in mind. It supports multiple video outputs, optional 4G LTE connectivity, and compact deployment in restricted spaces.
What connectivity options does the XB860G2 offer?
The system includes dual Gigabit LAN ports for network redundancy, dual HDMI and DisplayPort for video, and optional 4G LTE and WiFi modules for remote connectivity.
Can I add additional expansion cards to this system?
Yes, the XB860G2 features one PCIe x16 slot and one PCIe x1 slot for compatible expansion cards such as additional network adapters or graphics cards.
What is the warranty period for the Shuttle XB860G2?
The system comes with a 36-month manufacturer's warranty, providing extended coverage for business-critical deployments.
Is this a complete system or do I need to add components?
This is a barebone system, meaning it includes the chassis, motherboard, and power supply. You will need to add a processor, memory, storage, and an operating system to complete the build.
