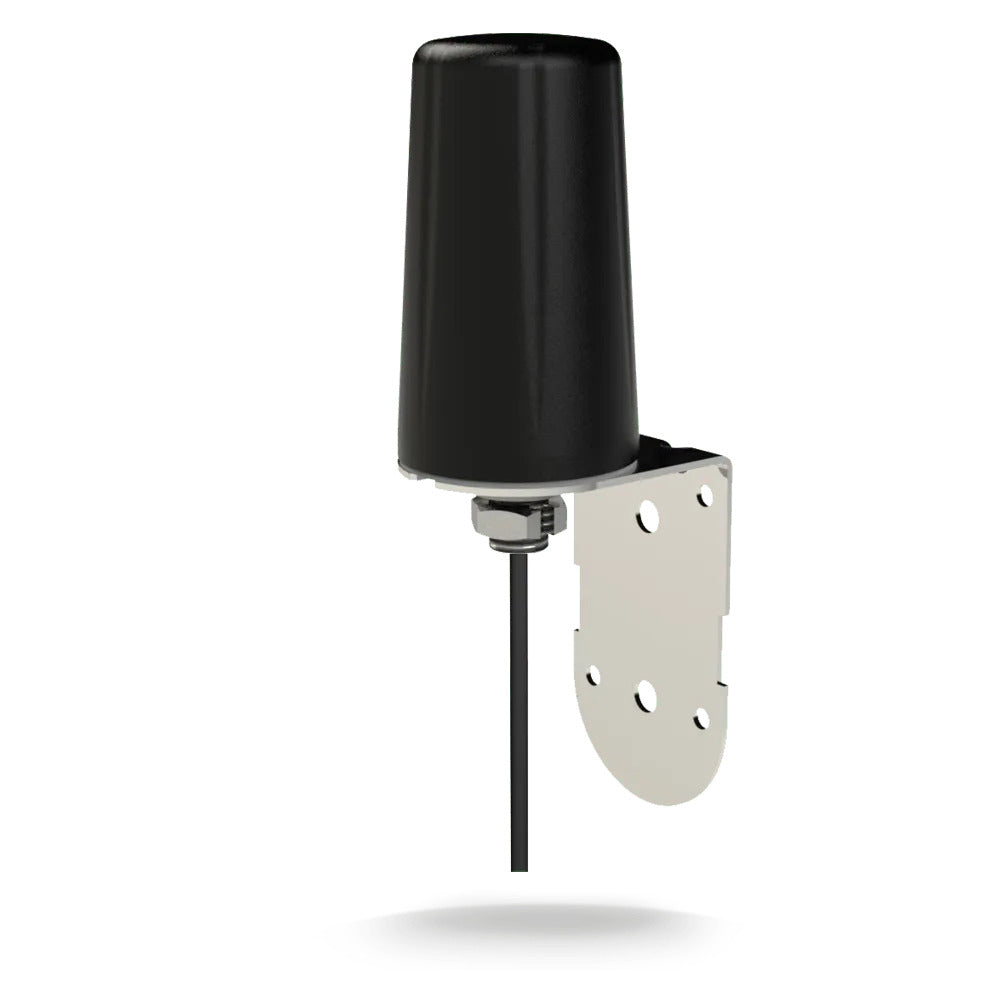

Panorama B4BE Bracket Mount Antenna 617-960/1710-6000MHz
Panorama B4BE Bracket Mount Antenna 617-960/1710-6000MHz
SKU:NHP-B4BE-6-60-5SP
The Panorama B4BE is a bracket mount antenna for 4G/5G LTE, M2M and IoT applications. Featuring omnidirectional coverage, 5dBi peak gain, and a 5-metre integrated low loss cable, it delivers reliable cellular connectivity for wall, mast or panel mounting in Australian environments.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | PANORAMA |
|---|---|
| Category | IoT / LTE |
| SKU | NHP-B4BE-6-60-5SP |
| Availability | In Stock |
Overview
- The Panorama B4BE is a cost-effective bracket mount antenna designed for LTE, M2M and IoT applications requiring robust outdoor connectivity. With omnidirectional coverage and 5dBi peak gain, the B4BE provides reliable cellular signal across 2G, 3G, 4G and 5G networks globally, including Australia's 600MHz Band 71 spectrum.
Engineered for harsh environments, the B4BE features an IP66 weatherproof rating and UV-stable construction rated for temperatures from -40°C to +85°C. The antenna supports wall, mast or panel mounting, allowing installers to position it in elevated or external locations where signal strength is optimal. An integrated 5-metre low loss cable with SMA(m) connector simplifies installation and reduces cable loss.
With 30W maximum input power and support for single-stream LTE (SISO), the B4BE suits enterprise M2M systems, fixed wireless access, remote monitoring equipment and IoT gateways. The global frequency coverage makes it suitable for applications requiring multi-region deployment.
Specifications
| Manufacturer | Panorama |
|---|---|
| Model | B4BE |
| Product Type | Bracket Mount Antenna |
| Frequency Range | 617–960MHz, 1710–2700MHz, 3400–3800MHz |
| Gain Performance | 617–960MHz: 2dBi; 1710–2700MHz: 3.5dBi; 3400–3800MHz: 5dBi |
| Peak Gain | 5dBi |
| Radiation Pattern | Omnidirectional |
| Connector Type | SMA (male) |
| Cable Length | 5 metres |
| Cable Type | Low loss integrated cable (CS29) |
| Maximum Input Power | 30W |
| IP Rating | IP66 |
| Operating Temperature | -40°C to +85°C |
| Material Flammability Rating | UL746C F2, UL 94-HB |
| LTE Elements | SISO (single-input single-output) |
| Wi-Fi Elements | No |
| UHF Elements | No |
| GPS Elements | No |
| Technology Support | 2G, 3G, 4G, 5G, Band 71 (600MHz) |
| Mounting Options | Wall, mast or panel mount |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What frequency bands does the Panorama B4BE support?
The B4BE covers 617–960MHz (2G/3G), 1710–2700MHz (3G/4G), and 3400–3800MHz (5G), with specific gain ratings for each band. It is Band 71 (600MHz) ready for Australian LTE networks.
Is the B4BE suitable for outdoor installation?
Yes. The B4BE features an IP66 weatherproof rating and UV-stable construction, making it suitable for wall, mast and panel mounting in outdoor environments. Operating temperature range is -40°C to +85°C.
What connector type does the B4BE use?
The B4BE uses an SMA (male) connector with a 5-metre integrated low loss cable (CS29) for direct connection to compatible LTE and IoT devices.
Can the B4BE be used for M2M and IoT applications?
Yes. The B4BE is specifically designed for LTE, M2M and IoT applications, supporting both legacy 2G/3G networks and modern 4G/5G deployments globally.
What is the maximum power handling of the B4BE?
The B4BE supports a maximum input power of 30W, making it suitable for enterprise-grade M2M systems and fixed wireless access equipment.
Does the B4BE include a cable?
Yes. The B4BE includes an integrated 5-metre low loss cable (CS29) with an SMA (male) connector, eliminating the need for separate cabling during installation.
What is the radiation pattern of the B4BE?
The B4BE features an omnidirectional radiation pattern, allowing rapid deployment without requiring precise directional alignment during installation.
