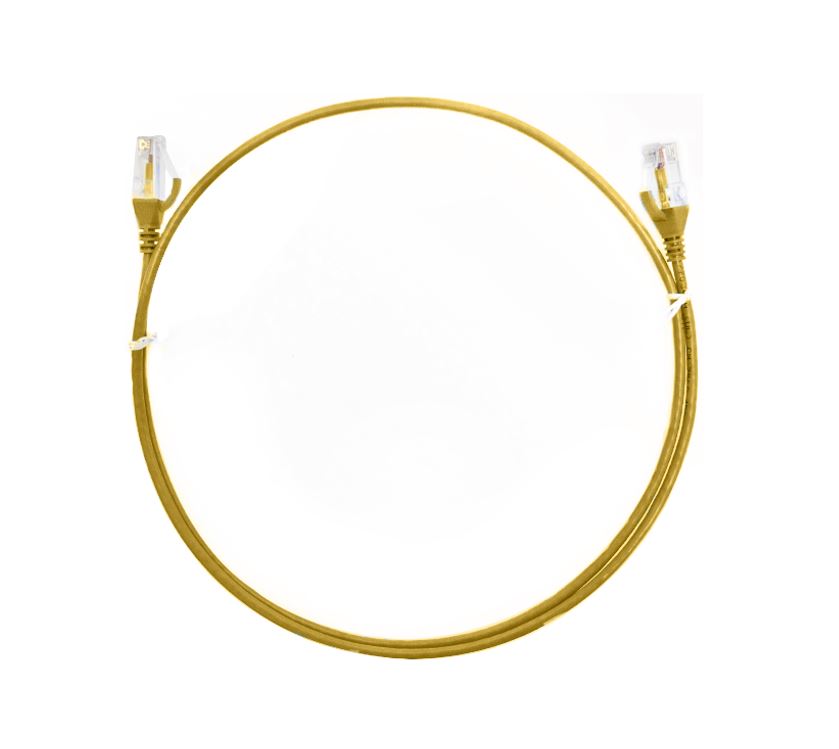

8ware CAT6 Ultra Thin Ethernet Cable 5m Yellow
8ware CAT6 Ultra Thin Ethernet Cable 5m Yellow
SKU:CBAT-CAT6THINYE-5M
The 8ware CAT6 Ultra Thin Ethernet Cable is a high-performance network patch cord designed for high-density installations. With gold-plated RJ45 connectors, 26AWG conductors, and support for up to 10-Gigabit Ethernet, it delivers reliable connectivity for modern business networks.
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | 8ware |
|---|---|
| Category | Cables |
| SKU | CBAT-CAT6THINYE-5M |
| Availability | In Stock |
Overview
- The 8ware CAT6 Ultra Thin Ethernet Cable delivers professional-grade network connectivity in a space-saving format. Designed specifically for high-density installations, the ultra-thin profile allows cable managers to maximise rack space without compromising performance or reliability.
Manufactured to stringent standards, each cable is Fluke tested and features gold-plated RJ45 connectors that exceed Australian industry requirements. The cable supports speeds from Fast Ethernet through to 10-Gigabit Ethernet, making it suitable for both current and future network infrastructure.
With full ISO/IEC 11801 Category 6 certification and TIA/EIA-568-C.2 compliance, this cable meets enterprise-level performance specifications. The fully moulded strain-relief boot and low-profile flush design provide durability and neat cable management in tight installations.
Specifications
| Brand | 8ware |
|---|---|
| Model | CAT6THINYE-5M |
| Product Type | Ultra Thin Cat6 Ethernet Cable |
| Length | 5 metres |
| Colour | Yellow |
| Cable Standard | Category 6 |
| Conductor Configuration | 8 multi-strand conductors, 4 twisted-pair |
| Conductor Gauge | 26 AWG |
| Colour Coding | T568A |
| RJ45 Connector Type | 50μ Category 6 compliant, 2-row staggered pin |
| Connector Material | Gold-plated |
| Connector Design | Male-to-male |
| Strain Relief | Fully moulded with low-profile flush boot |
| Performance Specification | Up to 250 MHz |
| Supported Speeds | Fast Ethernet, Gigabit Ethernet, 10-Gigabit Ethernet |
| Standards Compliance | ISO/IEC 11801 Category 6, TIA/EIA-568-C.2 Category 6 |
| Testing | Fluke tested |
| Warranty | 3 years |
Key Features
Ideal For
FAQs
What is the difference between Cat6 Ultra Thin and standard Cat6 cable?
The Ultra Thin design has a smaller diameter, making it ideal for high-density patch panels and cable trays where space is limited. Both versions deliver the same performance specifications and support up to 10-Gigabit Ethernet, but the ultra-thin profile optimises installation efficiency.
Is this cable suitable for 10-Gigabit Ethernet networks?
Yes, the 8ware CAT6 cable is certified for 10-Gigabit Ethernet speeds. It meets ISO/IEC 11801 Category 6 standards, which support high-speed data transmission at distances up to 55 metres at full performance.
What does Fluke tested mean?
Fluke testing verifies that the cable meets performance standards for signal integrity, crosstalk, and attenuation. It ensures the cable will perform reliably in your network infrastructure.
Can I use this cable in outdoor or exposed environments?
This is an indoor Cat6 patch cable. For outdoor installations or exposed areas, you should use cables specifically designed for external use with appropriate UV and weather protection.
What does T568A colour coding mean?
T568A is the standard wiring order for the 8 conductors in the RJ45 connector. This ensures proper data transmission and compatibility across your network infrastructure.
Is a 3-year warranty included?
Yes, the 8ware CAT6 cable includes a 3-year manufacturer warranty covering defects in materials and workmanship.
What length options are available?
This listing is for the 5-metre length. The 8ware CAT6 Ultra Thin range is available in multiple lengths to suit different installation requirements.
