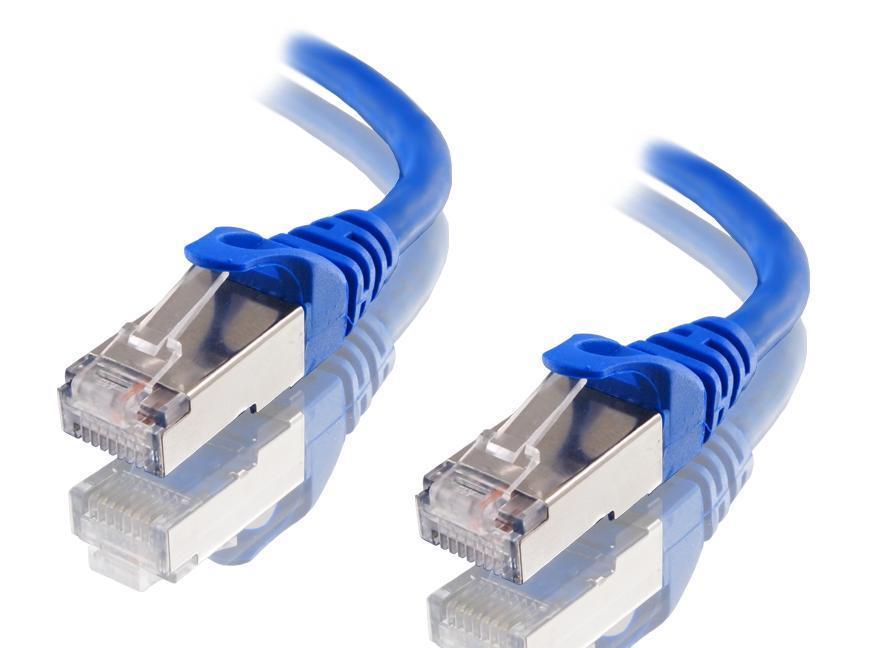

Astrotek CAT6A Shielded Ethernet Cable 1m Blue
Astrotek CAT6A Shielded Ethernet Cable 1m Blue
SKU:CBAT-CAT6ABLU1M
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Astrotek |
|---|---|
| Category | Cables |
| SKU | CBAT-CAT6ABLU1M |
| Availability | In Stock |
Overview
- The Astrotek CAT6A Shielded Ethernet Cable delivers enterprise-grade network connectivity in a compact 1 metre length. Built to CAT6A specifications, it supports 10 Gigabit Ethernet speeds with a 550 MHz bandwidth capacity, making it suitable for demanding network environments including server deployments, cloud computing, and high-definition video streaming applications.
The S/FTP shielding design actively reduces electromagnetic interference (EMI) and crosstalk noise, ensuring signal integrity across your network infrastructure. This makes it an ideal choice for installations where multiple cables run in close proximity or where environmental interference is a concern.
Fully backwards compatible with existing Fast Ethernet and Gigabit Ethernet networks, this cable provides a cost-effective pathway to next-generation network speeds without requiring complete infrastructure replacement. The LSZH jacket construction meets safety requirements for building installations, whilst the robust 26 AWG conductors deliver reliable long-term performance.
Specifications
| Cable Standard | CAT6A |
|---|---|
| Length | 1 metre |
| Colour | Blue |
| Connector Type | RJ45 |
| Shielding Type | S/FTP (Screened Foiled Twisted Pair) |
| Wire Gauge | 26 AWG |
| Bandwidth | 550 MHz |
| Maximum Data Transfer Speed | 10 Gigabit Ethernet (10GbE) |
| Jacket Material | PVC with LSZH construction |
| Standards Compliance | TIA/EIA 568-C.2 |
| Backwards Compatibility | Cat5e and Cat6 Ethernet |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between CAT6A and CAT6 cabling?
CAT6A cables support higher bandwidth (550 MHz vs 250 MHz) and faster data speeds up to 10 Gigabit Ethernet, compared to CAT6's 1 Gigabit limit. CAT6A provides better performance for demanding applications and future-proofs your network investment.
What does S/FTP shielding do?
S/FTP (Screened Foiled Twisted Pair) shielding reduces electromagnetic interference (EMI) and crosstalk noise by surrounding the twisted pairs with foil and an overall screen. This maintains signal integrity in environments with multiple cables or electrical interference.
Is this cable compatible with my existing network?
Yes. CAT6A cables are fully backwards compatible with CAT6, CAT5e, and CAT5 networks. You can use this cable with existing equipment, and it will automatically operate at the speed your network supports.
What is LSZH construction?
LSZH (Low Smoke Zero Halogen) is a safety standard for cable jackets. When exposed to fire, LSZH cables emit minimal smoke and no toxic halogen gases, making them safer for enclosed building installations and server rooms.
What does 26 AWG mean?
AWG (American Wire Gauge) refers to conductor thickness. 26 AWG is a standard thickness for CAT6A cables, balancing flexibility with electrical performance. This gauge supports the full 10GbE speed of CAT6A.
Can I use this cable for PoE devices?
Yes. CAT6A cables support Power over Ethernet (PoE) delivery. You can use this cable to connect and power PoE devices such as VoIP phones, IP cameras, and wireless access points.
Why would I choose a shielded cable over unshielded?
Shielded cables like this S/FTP design are better for environments with electrical equipment, fluorescent lighting, or many cables running together. They reduce interference and provide more reliable signal quality in challenging installations.
