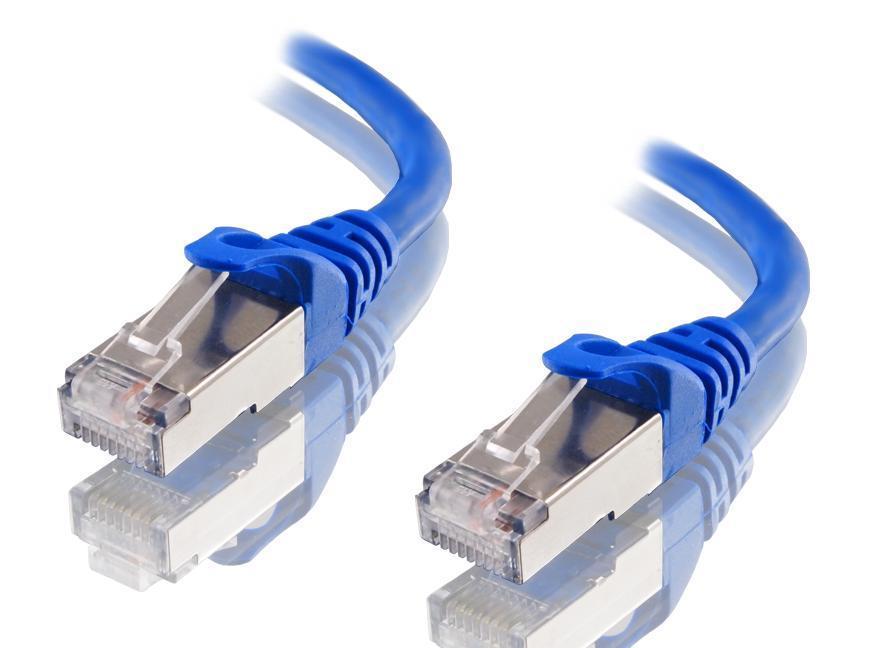

Astrotek CAT6A Shielded Ethernet Cable 20m RJ45
Astrotek CAT6A Shielded Ethernet Cable 20m RJ45
SKU:CBAT-CAT6ABLU20M
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Astrotek |
|---|---|
| Category | Cables |
| SKU | CBAT-CAT6ABLU20M |
| Availability | In Stock |
Overview
- The Astrotek CAT6A Shielded Ethernet Cable is engineered to support next-generation 10GBASE-T networking applications. The 20-metre length makes it suitable for longer cable runs across offices, data centres, and network rooms without compromising signal integrity.
Built with 26AWG stranded pure copper conductors and AL-MG braided shielding, this cable delivers the performance and reliability required for demanding network environments. The S/FTP construction minimises electromagnetic interference, ensuring clean data transmission across your infrastructure.
The snagless RJ45 connector design protects the locking clip from accidental damage during installation and recabling operations. Gold-plated contacts provide corrosion resistance and dependable connectivity over time. LSZH insulation meets fire safety standards for commercial and industrial installations.
Specifications
| Cable Standard | CAT6A (Category 6a) |
|---|---|
| Length | 20 metres |
| Connector Type | RJ45 (8P/8C) |
| Connector Finish | Gold-plated |
| Conductor Gauge | 26AWG |
| Conductor Material | Stranded pure copper |
| Shielding | S/FTP (Shielded Foiled Twisted Pair) with AL-MG braided jacket |
| Insulation Material | LSZH (Low Smoke Zero Halogen) |
| Design | Snagless |
| Performance Rating | 10GBASE-T |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between CAT6A and CAT6?
CAT6A supports 10 Gigabit Ethernet speeds up to 100 metres, compared to CAT6 which is rated for up to 55 metres at 10 Gbps. CAT6A includes tighter shielding specifications to handle higher frequencies and minimise crosstalk.
Is this cable suitable for data centre applications?
Yes. The S/FTP shielding, LSZH insulation, and 10GBASE-T certification make it suitable for data centre deployments. The 20-metre length is practical for server rack interconnects and backbone cabling.
What does the snagless design do?
The snagless design incorporates a protective boot around the RJ45 connector that prevents the locking clip from catching on other cables or equipment during installation and reconfiguration.
Why is LSZH insulation important?
LSZH (Low Smoke Zero Halogen) insulation reduces toxic fumes and smoke in the event of a fire, meeting safety requirements for commercial buildings, data centres, and enclosed cable runs.
Can I use this cable for Power over Ethernet (PoE)?
Yes. CAT6A cables support PoE and PoE+ standards, making them suitable for powering IP cameras, wireless access points, and other network devices alongside data transmission.
What is the warranty coverage?
The Astrotek CAT6A Ethernet Cable is covered by a 12-month manufacturer's warranty against defects in materials and workmanship.
