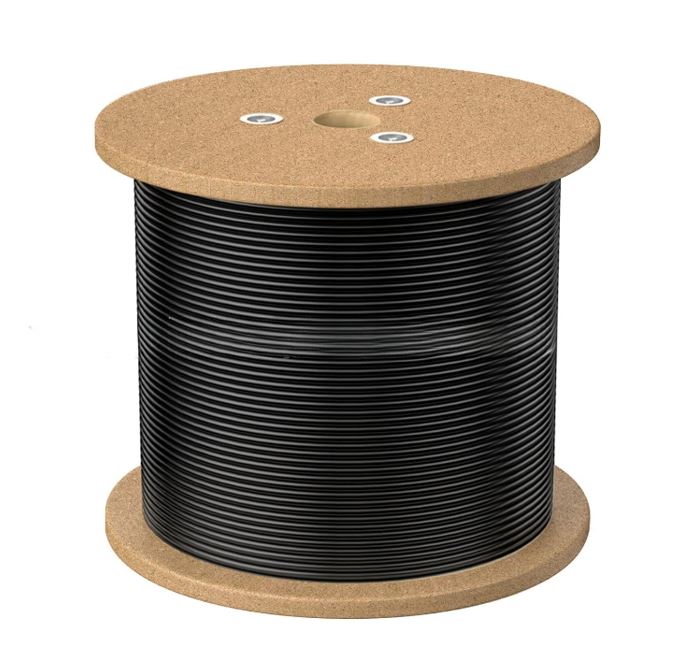

8Ware CAT6A UTP Network Cable 305m Roll Black
8Ware CAT6A UTP Network Cable 305m Roll Black
SKU:CB8W-CAT6A-EXT350BLK
The 8Ware CAT6A UTP Network Cable Roll delivers gigabit-speed networking with UV-stabilised outdoor performance. Featuring 23AWG bare copper conductors, impedance-matched design, and ISO/IEC 11801 compliance, it provides reliable high-speed transmission for infrastructure deployments.
Couldn't load pickup availability
- See our return policy
- 12 months limited Manufacturer Warranty
Product Information
| Brand | 8ware |
|---|---|
| Category | Cables |
| SKU | CB8W-CAT6A-EXT350BLK |
| Availability | In Stock |
Overview
- The 8Ware CAT6A Network Cable Roll is an unterminated 305-metre bulk cabling solution designed for large-scale network infrastructure projects. Built with 23AWG bare copper conductors and an impedance-matched design, it delivers error-free high-speed transmission at gigabit speeds whilst maintaining backwards compatibility with CAT5E installations.
The cable features a UV-stabilised PVE jacket that performs reliably in outdoor environments, making it ideal for building-to-building connections, rooftop installations, and exposed cable runs. Its robust 7.4mm diameter provides durability and easy identification through colour-coded black jacket markings.
Fully certified to ISO/IEC 11801 Class E and ANSI/TIA 568-C.2 standards, this cable supports multiple networking protocols including 1000BASE-T Gigabit Ethernet, Fast Ethernet, ATM, broadband video, and voice applications. The wooden reel format with metre markings simplifies installation planning and cable management across large deployments.
Specifications
| Cable Type | CAT6A UTP |
|---|---|
| Length | 305 metres |
| Connector Type | Unterminated |
| Conductor Material | Bare copper |
| Conductor Gauge | 23AWG |
| Outer Diameter | 7.4mm (nominal) |
| Jacket Material | PVE (polyvinyl ethylene) |
| Insulation Material | HDPE (high-density polyethylene) |
| Colour | Black |
| Packaging | Wooden reel with metre markings |
| Weight | 13kg |
| Packaging Dimensions | 33cm × 33cm × 30cm |
| Standards Compliance | ISO/IEC 11801 Class E, ANSI/TIA 568-C.2, RoHS compliant |
| Supported Applications | 1000BASE-T Gigabit Ethernet, Fast Ethernet, 100VG-AnyLAN, ATM, broadband video, voice, T1, ISDN |
| Warranty | 12 months limited |
Key Features
Ideal For
FAQs
Is this cable suitable for outdoor use?
Yes. The cable features a UV-stabilised PVE jacket specifically designed for outdoor environments, protecting against UV degradation and weather exposure.
Can I use this CAT6A cable with older CAT5E equipment?
Yes. CAT6A is backwards compatible with CAT5E cables and equipment, allowing for gradual network upgrades without replacing existing infrastructure.
What speeds does this cable support?
It supports gigabit Ethernet (1000BASE-T) and is also compatible with Fast Ethernet (100BASE-TX), 100VG-AnyLAN, 155/622 Mbps ATM, and broadband video applications up to 500MHz.
Do I need to terminate the cables myself?
Yes. This is an unterminated cable roll, so you will need to add RJ45 connectors at each end using proper termination tools and techniques, or have them professionally installed.
What certifications does this cable have?
The cable complies with ISO/IEC 11801 Class E and ANSI/TIA 568-C.2 standards, and is RoHS compliant with EU Directive 2011/65/EU requirements.
How is the cable packaged?
The 305-metre cable is supplied on a wooden reel with metre markings to simplify installation planning and cable management.
What is the warranty period?
The cable includes a 12-month limited warranty covering manufacturing defects.
