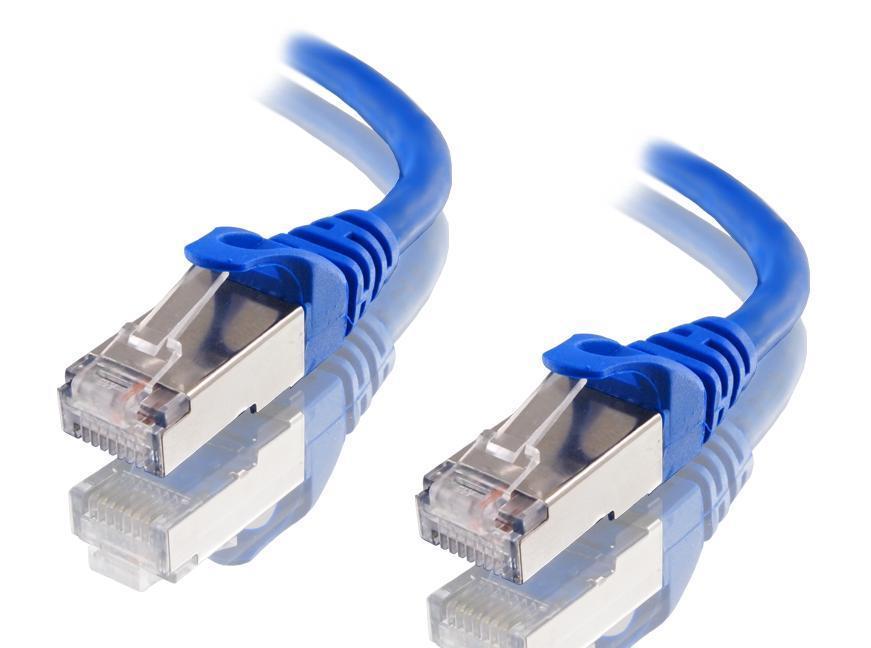

Astrotek CAT6A Shielded Ethernet Cable 10m
Astrotek CAT6A Shielded Ethernet Cable 10m
SKU:CBAT-CAT6ABLU10M
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Astrotek |
|---|---|
| Category | Cables |
| SKU | CBAT-CAT6ABLU10M |
| Availability | In Stock |
Overview
- The Astrotek CAT6A shielded ethernet cable is engineered to support next-generation 10 Gigabit Ethernet applications. Built with 26AWG pure copper conductors and AL-MG braided shielding, it provides superior electromagnetic interference (EMI) protection and signal integrity for demanding network environments.
The snagless RJ45 connectors feature gold-plated contacts for reliable connections and durability. Its LSZH (Low Smoke Zero Halogen) jacket makes it suitable for installations where fire safety and air quality are priorities, such as data centres and office buildings.
At 10 metres, this cable length is ideal for connecting servers, network switches, and workstations without excessive slack or the need for multiple patch cables. The CAT6A specification ensures future-proof performance and compliance with modern networking standards.
Specifications
| Cable Standard | Category 6a (CAT6A) |
|---|---|
| Connector Type | RJ45 (8P/8C) |
| Conductor Gauge | 26AWG |
| Conductor Material | Stranded pure copper |
| Shielding Type | S/FTP (Shielded Foil and Twisted Pair) |
| Outer Shielding | AL-MG braided |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Connector Finish | Gold-plated contacts |
| Cable Length | 10 metres |
| Colour | Blue |
| Design | Snagless |
| Maximum Data Rate | 10 Gbps (10GBASE-T) |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between CAT6A and standard CAT6 cables?
CAT6A cables support higher data speeds up to 10 Gbps over longer distances compared to standard CAT6. They feature enhanced shielding and better EMI protection, making them suitable for demanding networking environments and future-proof installations.
Why is S/FTP shielding important?
S/FTP shielding provides both individual foil shielding around each twisted pair and an outer braid, offering maximum protection against electromagnetic interference. This is essential in environments with high EMI or for critical data applications.
What does LSZH jacket mean?
LSZH (Low Smoke Zero Halogen) is a fire-safe jacket material that produces minimal smoke and no toxic halogen gases when exposed to fire. It is commonly required in data centres, hospitals, and commercial buildings for safety compliance.
Are the connectors replaceable?
The RJ45 connectors on this cable are fixed. If damage occurs to the connector, the entire cable will need to be replaced. The snagless design helps prevent clip breakage during normal use.
Is 10 metres long enough for my installation?
10 metres is suitable for most office and data centre patch runs between adjacent racks, switches, and workstations. For longer distances, consider ordering multiple cables or a longer length variant if available.
Can this cable be used outdoors?
This cable is designed for indoor use. The LSZH jacket and shielding are optimised for controlled indoor environments. For outdoor installations, outdoor-rated cables with UV and weather protection should be used.
What is the warranty period?
The Astrotek CAT6A cable comes with a 12-month manufacturer warranty covering defects in materials and workmanship.
