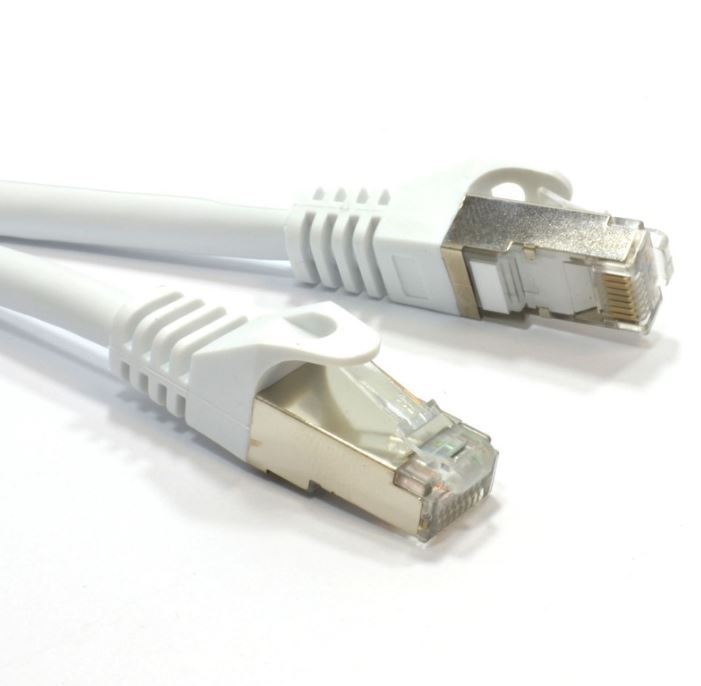

Astrotek CAT6A Shielded Ethernet Cable 5m
Astrotek CAT6A Shielded Ethernet Cable 5m
SKU:CBAT-CAT6AGRY5
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Astrotek |
|---|---|
| Category | Cables |
| SKU | CBAT-CAT6AGRY5 |
| Availability | In Stock |
Overview
- The Astrotek CAT6A Shielded Ethernet Cable is engineered to support next-generation 10GBASE-T networking standards. With its robust construction featuring braided shielding and gold-plated RJ45 connectors, this cable delivers the performance and reliability required for demanding network environments.
Designed with snagless connectors and a durable LSZH jacket, the cable provides both ease of installation and long-term durability. The 26AWG stranded copper conductors ensure consistent signal integrity across the full 5-metre length, making it suitable for standard patch runs in offices, data centres, and server rooms.
This cable meets Category 6a specifications and is built to exceed the requirements of modern 10GbE applications, providing businesses with a future-ready networking solution that performs reliably under demanding conditions.
Specifications
| Category | CAT6A |
|---|---|
| Cable Length | 5 metres |
| Connector Type | RJ45 8P/8C |
| Connector Finish | Gold-plated |
| Conductor | 26AWG stranded pure copper |
| Shielding | AL-MG braided overall shielding |
| Shielding Type | S/FTP (Shielded Foil and Twisted Pair) |
| Jacket Material | PVC with LSZH (Low Smoke Zero Halogen) |
| Colour | Grey/White |
| Design | Snagless |
| Bandwidth | Up to 500 MHz |
| Data Rate | 10Gbps (10GBASE-T compatible) |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the maximum distance for a CAT6A cable?
CAT6A cables are rated for reliable performance up to 100 metres. This 5-metre patch cable is ideal for shorter runs in offices and server rooms.
Will this cable work with older CAT5e equipment?
Yes, CAT6A cables are backward compatible with CAT5e and earlier standards. However, you'll only achieve the speed supported by the slower equipment.
What is S/FTP shielding?
S/FTP (Shielded Foil and Twisted Pair) features both individual foil shielding around each pair and an overall braided shield for superior EMI protection.
Why is the snagless design important?
The snagless design prevents the connector boot from catching on cable management clips, making installation faster and easier whilst reducing damage to connectors.
Is this cable suitable for 10 Gigabit Ethernet?
Yes, this CAT6A cable is certified for 10GBASE-T applications and supports data rates up to 10 Gbps.
What does LSZH jacket mean?
LSZH (Low Smoke Zero Halogen) means the jacket produces minimal smoke and no toxic halogenic compounds if exposed to high heat, making it ideal for enclosed spaces.
