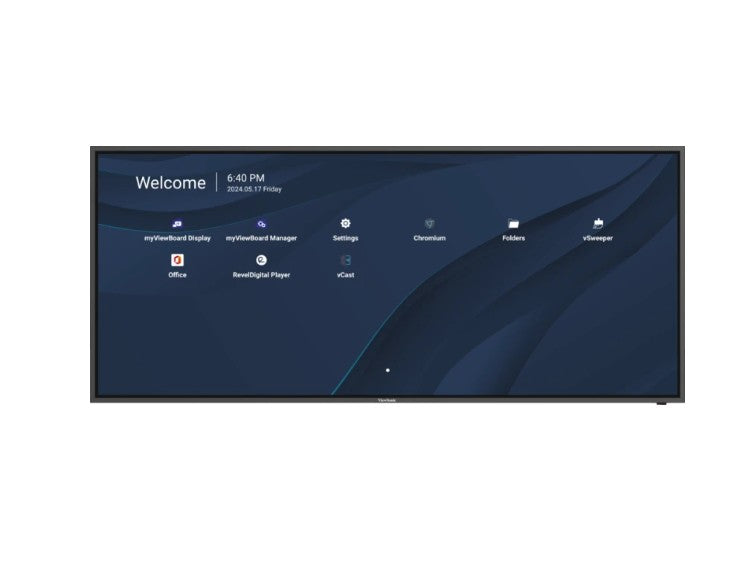

ViewSonic CDE92UW 92-Inch 5K Commercial Display
ViewSonic CDE92UW 92-Inch 5K Commercial Display
SKU:IPV-CDE92UW
The ViewSonic CDE92UW is a 92-inch ultrawide 5K commercial presentation display built for 24/7 operation. With 5120×2160 resolution, USB-C connectivity with 100W Power Delivery, and 21:9 aspect ratio optimised for Microsoft Teams Rooms, it delivers stunning visuals for corporate boardrooms and digital signage.
Couldn't load pickup availability
- See our return policy
- 36 months (3 years) advance replacement Manufacturer Warranty
Product Information
| Brand | ViewSonic Commercial |
|---|---|
| Category | Commercial Display |
| SKU | IPV-CDE92UW |
| Availability | In Stock |
Overview
- The ViewSonic CDE92UW is an enterprise-grade 92-inch presentation display engineered for demanding commercial environments. Its 5K ultrawide resolution and 21:9 aspect ratio make it ideal for collaborative spaces, particularly Microsoft Teams Rooms deployments where immersive, crystal-clear visuals enhance engagement and productivity.
Built for continuous operation, the CDE92UW features commercial-grade TFT LCD technology with VA panel technology, delivering 500 nits of brightness and excellent viewing angles (178° horizontal and vertical). The ultra-slim 18mm bezel enables seamless multi-display configurations, while portrait and landscape orientation support provides flexibility for diverse signage and presentation applications.
Connectivity is comprehensive and future-proof. Multiple HDMI 2.1 and 2.0 inputs, DisplayPort, and a full-featured USB-C port with 100W Power Delivery allow integration with modern laptops, content servers, and AV systems. The OPS slot and WiFi module slot provide expansion options for embedded media players and wireless functionality, reducing infrastructure complexity.
With 3-year advance replacement warranty and proven reliability in professional installations, the CDE92UW is a strategic investment for organisations requiring exceptional visual impact and operational stability.
Specifications
| Display Size | 92 inches (diagonal 91.52 inches) |
|---|---|
| Resolution | 5120×2160 (5K) |
| Aspect Ratio | 21:9 |
| Panel Technology | TFT LCD, VA panel, DLED backlight |
| Display Area | 2141.952mm (H) × 903.636mm (V) |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 5000:1 (typical) |
| Response Time | <6.5ms |
| Viewing Angles | 178° horizontal, 178° vertical (typical) |
| Backlight Life | 50,000 hours (typical) |
| Colours | 1.07 billion colours (8-bit + 2-bit FRC) |
| Surface Treatment | Anti-glare, 3H hardness, 25% haze |
| Bezel Width | 18mm (top, bottom, left, right) |
| Orientation | Landscape and portrait |
| Video Inputs | HDMI ×4 (1× HDMI 2.1, 3× HDMI 2.0), DisplayPort ×1 |
| Video Output | HDMI ×1 |
| USB | 4× USB 3.2 Gen 1 (rear ×2, top ×2), 1× USB 2.0 Type-A (rear), 1× USB Type-C with 100W PD, DP 1.2, 100M ethernet |
| Audio Input | 1× 3.5mm |
| Audio Output | 1× 3.5mm, 1× SPDIF |
| Speakers | 2× 20W + 1× 20W subwoofer |
| Network | 1× RJ45 ethernet |
| Expansion | 1× OPS slot (80-pin), 1× WiFi module slot |
| RS-232 | 1 port |
| HDMI Compatibility | HDMI 1: 5120×2160@60Hz (YUV444), 5120×2160@30Hz (YUV420); HDMI 2/3/4: 3840×2160@60Hz |
| DisplayPort Compatibility | 5120×2160 |
| Warranty | 36 months (3 years) advance replacement |
| Operation | Certified for 24/7 continuous operation |
Key Features
Ideal For
FAQs
What resolution and aspect ratio does the CDE92UW offer?
The CDE92UW features 5K resolution (5120×2160) with a 21:9 ultrawide aspect ratio, optimised for Microsoft Teams Rooms Front Row mode and immersive presentations.
Is this display suitable for 24/7 operation?
Yes. The CDE92UW is certified for continuous 24/7 operation with a typical backlight life of 50,000 hours, making it ideal for control rooms, digital signage, and trading floors.
What connectivity options are available?
The display includes 4 HDMI ports (1× HDMI 2.1, 3× HDMI 2.0), 1 DisplayPort, USB-C with 100W Power Delivery and ethernet, plus 4 USB 3.2 Gen 1 ports, RS-232, and audio connectivity.
Can I use this display in portrait orientation?
Yes. The CDE92UW supports both landscape and portrait orientation, providing flexibility for digital signage and specialised applications.
What warranty is included?
The CDE92UW comes with a 3-year advance replacement warranty, ensuring minimal downtime in commercial environments.
Does the USB-C port support Power Delivery?
Yes. The USB-C port delivers 100W Power Delivery along with DisplayPort 1.2 and 100M ethernet, allowing single-cable connection from compatible laptops and devices.
What expansion options are available?
The display features an 80-pin OPS slot for embedded media players and a WiFi module slot for wireless connectivity, reducing external equipment requirements.
What is the brightness level?
The CDE92UW delivers 500 nits of brightness (typical), suitable for well-lit commercial environments and professional presentations.
