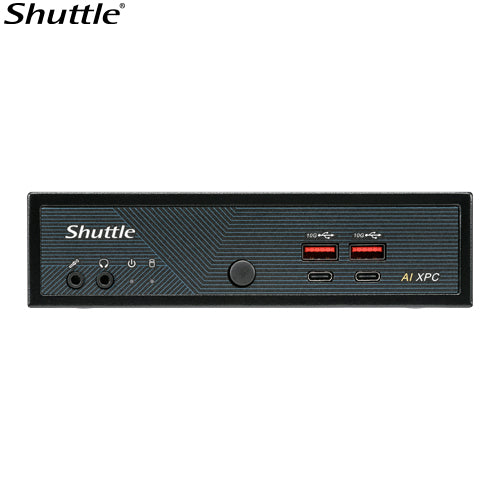

Shuttle AI XPC Compact PC Intel Core Ultra 7 155H
Shuttle AI XPC Compact PC Intel Core Ultra 7 155H
SKU:SYS-DN11H7
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-DN11H7 |
| Availability | In Stock |
Overview
- The Shuttle AI XPC is a purpose-built compact system designed for deployment scenarios where space is limited but performance cannot be compromised. With its tiny 1.3-litre footprint, the AI XPC delivers enterprise-class connectivity and processing power suitable for modern digital applications.
The quad video output configuration (2x HDMI 2.0 and 2x DisplayPort) supports complex multi-display setups, making it ideal for control room environments, kiosks, and digital signage applications. The four integrated 2.5GbE LAN ports enable advanced network configurations without requiring external adapters, whilst Wake-on-LAN functionality simplifies remote device management.
Equipped with the Intel Core Ultra 7 155H processor, the AI XPC delivers efficient processing for multimedia playback, data processing, and real-time applications. Support for up to 96GB of DDR5-5600 memory ensures smooth operation under demanding workloads, whilst the expandable storage options (three M.2 NVMe slots) provide flexibility for growing data requirements.
The system operates reliably across 0–50°C, suitable for controlled indoor environments, and includes a 3-year warranty for peace of mind in commercial deployments.
Specifications
| Processor | Intel Core Ultra 7 155H 28W |
|---|---|
| Processor Architecture | Meteor Lake |
| Memory Slots | 2x DDR5 SODIMM |
| Maximum Memory | 96GB (2x 48GB) |
| Memory Speed | DDR5-5600 |
| Storage Interfaces | SATA 6.0Gb/s, NVMe |
| M.2 Slots | 2x M.2 2280 (NVMe/SATA), 1x M.2 2280 (NVMe only), 1x M.2 2230 (WiFi) |
| Video Output | 2x HDMI 2.0, 2x DisplayPort |
| Video Playback | 4K (dual channel memory recommended) |
| Graphics | Integrated in CPU |
| Audio | Realtek ALC 888S High Definition Audio |
| Ethernet | 4x Intel 2.5GbE LAN with LED indicators |
| Wake-on-LAN | Supported |
| USB Ports | 2x USB 3.2 Gen2 Type-C, 6x USB 3.2 Gen2 Type-A |
| Front Panel Connectors | Microphone input, line-out, power button, power LED, HDD LED |
| Internal Connectors | 1x 4-pin fan header, 1x auto power-on header, 1x external 4-pin header |
| Wireless | 2x antenna fixtures for M.2 2230 expansion |
| Security | Kensington lock slot |
| Chassis Dimensions | 190(L) x 165(W) x 43(H) mm |
| Chassis Volume | 1.3L |
| Power Adapter | 120W universal (100-240V AC input, 19V 6.32A output) |
| Operating Temperature | 0°C to 50°C |
| Operating System Support | Windows 11 64-bit, Linux |
| Warranty | 36 months |
| Included Accessories | VESA mount, VESA screw pack, power cord, 120W adapter, multilingual quick user guide, driver DVD |
Key Features
Ideal For
FAQs
What is the maximum memory capacity of the Shuttle AI XPC?
The system supports up to 96GB of DDR5 memory via two SODIMM slots, with a maximum of 48GB per DIMM. DDR5-5600 memory is required for optimal performance.
How many displays can the AI XPC support simultaneously?
The AI XPC features quad video outputs with 2x HDMI 2.0 and 2x DisplayPort, allowing support for up to four independent displays. 4K playback is supported with dual channel memory configuration.
Can the Shuttle AI XPC be wall-mounted?
Yes, the system includes a VESA mount bracket and screw pack, allowing it to be securely mounted behind displays or on walls, making it ideal for kiosk and signage applications.
What storage expansion options are available?
The AI XPC offers three M.2 2280 slots (two supporting NVMe/SATA, one NVMe only) and one M.2 2230 slot for wireless modules, providing flexible storage and connectivity expansion.
Does the Shuttle AI XPC support Wake-on-LAN?
Yes, all four 2.5GbE LAN ports support Wake-on-LAN (WOL), allowing remote power management and scheduling of the system across the network.
What operating systems are compatible with the AI XPC?
The system supports Windows 11 64-bit and Linux operating systems. A driver DVD is included with the purchase.
What is the power consumption and thermal footprint of this system?
The Intel Core Ultra 7 155H processor has a 28W thermal design power (TDP), and the system includes a 120W power adapter. Operating temperature range is 0–50°C.
Is the Shuttle AI XPC suitable for 24/7 operation?
Yes, the compact design, efficient processor, and robust construction make it suitable for continuous operation in controlled indoor environments (0–50°C). The 3-year warranty provides commercial-grade reliability assurance.
