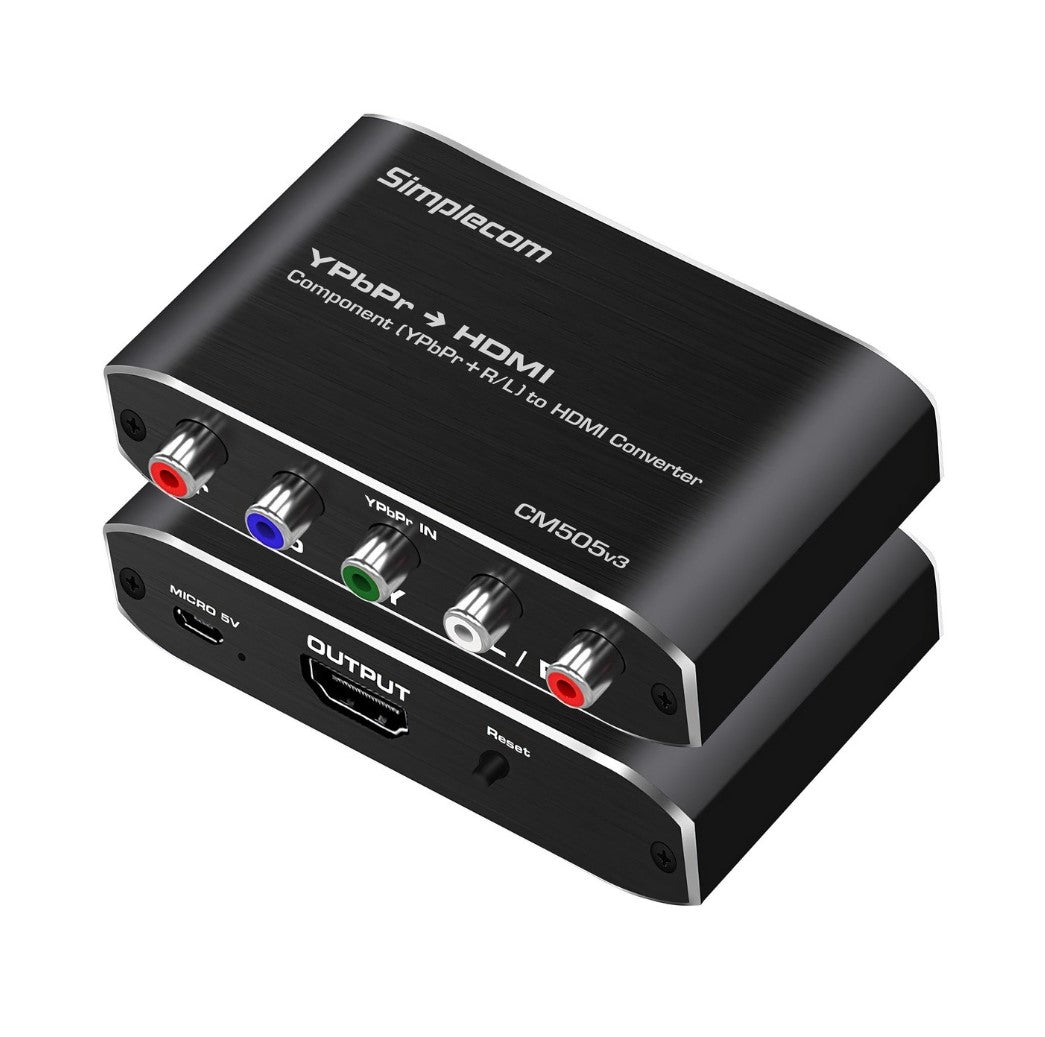

Simplecom CM505v3 Component to HDMI Converter 1080p
Simplecom CM505v3 Component to HDMI Converter 1080p
SKU:CBSI-CM505V3
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Simplecom |
|---|---|
| Category | Cables |
| SKU | CBSI-CM505V3 |
| Availability | In Stock |
Overview
- The Simplecom CM505v3 is a single-direction component to HDMI converter designed to bridge the gap between legacy analogue video equipment and modern digital displays. It accepts YPbPr (component) video input along with stereo audio (R/L) and outputs a clean HDMI signal, supporting resolutions up to Full HD 1080p.
Key to its functionality is the USB-powered design, eliminating the need for external power supplies. The converter operates on just 5V/1A, drawing a maximum of 5W, making it ideal for integration into home theatre systems, commercial AV installations, or broadcast environments where space and power management are considerations.
The aluminium chassis provides robust build quality and effective thermal management. Operating across a wide temperature range (0°C to 70°C), it maintains stable performance in various installation environments. Important to note: the converter works in one direction only (component to HDMI) and does not upscale resolution—the display must support the input resolution natively.
Includes HDMI cable, USB power cable, and wall adapter for immediate setup.
Specifications
| Model | CM505v3 |
|---|---|
| Brand | Simplecom |
| Product Type | Component to HDMI Converter |
| Input Connectors | Component (YPbPr) + R/L Stereo Audio |
| Output Connectors | HDMI |
| Maximum Video Bandwidth | 1.65Gbps/165MHz per channel (4.95Gbps total) |
| Colour Depth | 8-bit per channel (24-bit total) |
| Supported Interlaced Resolutions | 480i, 576i, 1080i (50/60Hz) |
| Supported Progressive Resolutions | 480p, 576p, 720p, 1080p (50/60Hz) |
| Audio Format Support | 2-channel uncompressed audio (LPCM) |
| Case Material | Aluminium |
| Power Input | USB 5V/1A |
| Maximum Power Consumption | 5W |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 10% to 85% RH |
| Storage Temperature | -10°C to +80°C |
| Storage Humidity | 5% to 90% RH |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Can I use the CM505v3 to convert HDMI back to component video?
No. The CM505v3 is a single-direction converter only. It converts component (YPbPr) to HDMI but cannot be used in reverse.
Does the converter upscale lower resolutions to 1080p?
No. The CM505v3 is a format converter, not an upscaler. It outputs the same resolution as the input. For example, 480i input will produce 480i output. Your display must support the input resolution natively.
What power supply is required?
The converter is powered via USB 5V/1A. It includes a USB wall adapter, but you can also connect it to a USB port on your television or another USB power source.
What audio formats are supported?
The CM505v3 supports 2-channel uncompressed audio input (LPCM format). It does not handle compressed audio or surround sound formats.
Is the CM505v3 suitable for commercial AV installations?
Yes. The aluminium case, wide operating temperature range (0°C to 70°C), and reliable performance make it suitable for professional installations, broadcast facilities, and commercial environments.
What's included in the box?
The package includes the converter unit, HDMI cable, USB power cable, and USB wall adapter.
Can I connect multiple devices simultaneously?
No. The CM505v3 accepts one set of component video and stereo audio inputs at a time. It is a single-input, single-output converter.
