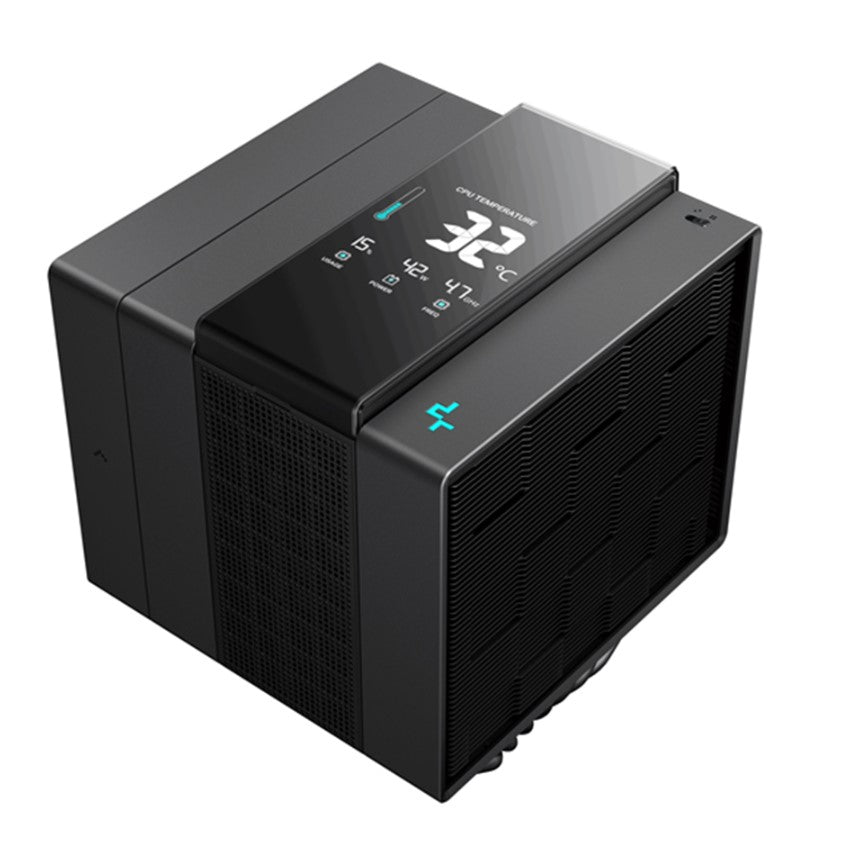

DeepCool ASSASSIN IV VC VISION DIGITAL Air Cooler 300W TDP
DeepCool ASSASSIN IV VC VISION DIGITAL Air Cooler 300W TDP
SKU:CFD-ASSASSIN-IV-VC
The DeepCool ASSASSIN IV VC VISION DIGITAL is a premium air CPU cooler designed for high-performance systems. Featuring a vapour chamber base, 300W TDP capacity, quad-segmented digital display, and dual sound profiles, it delivers efficient cooling and system monitoring for demanding workstations and gaming builds.
Couldn't load pickup availability
- See our return policy
- 72 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Fan & Cooling Products |
| SKU | CFD-ASSASSIN-IV-VC |
| Availability | In Stock |
Overview
- The DeepCool ASSASSIN IV VC VISION DIGITAL represents the pinnacle of the ASSASSIN IV cooler series, combining advanced thermal engineering with digital intelligence. The integrated vapour chamber technology elevates cooling capacity to 300W TDP, making it suitable for high-end processors and sustained performance scenarios.
The standout feature is the quad-segmented digital display, which provides real-time system monitoring and adds a premium aesthetic to any build. Users can switch between two sound profiles—Performance Mode delivers maximum cooling capacity at ≤29.3 dB(A), whilst Quiet Mode reduces noise to ≤22.6 dB(A) for noise-sensitive environments.
Built on a foundation of seven 6mm heatpipes and dual precision-engineered fans, the cooler maintains consistent thermal performance across Intel and AMD platforms. The inclusion of fluid dynamic bearing technology ensures long-term reliability and whisper-quiet operation.
Specifications
| Cooler Dimensions | 147 × 144 × 172 mm (L × W × H) |
|---|---|
| Heatsink Dimensions | 140 × 110 × 160 mm (L × W × H) |
| Net Weight | 1780 g |
| Heatpipes | 7× Ø6 mm |
| TDP Capacity | 300W |
| Fan 1 Dimensions | 140 × 140 × 25 mm |
| Fan 2 Dimensions | 120 × 120 × 25 mm |
| Fan Speed (Performance Mode) | 500–1800 RPM (140mm) / 500–1700 RPM (120mm) |
| Fan Speed (Quiet Mode) | 500–1450 RPM (140mm) / 500–1350 RPM (120mm) |
| Airflow (Performance Mode) | 61.25 CFM (140mm) / 58.06 CFM (120mm) |
| Airflow (Quiet Mode) | 48.55 CFM (140mm) / 46.75 CFM (120mm) |
| Air Pressure (Performance Mode) | 3.76 mmAq (140mm) / 2.1 mmAq (120mm) |
| Air Pressure (Quiet Mode) | 2.46 mmAq (140mm) / 1.35 mmAq (120mm) |
| Noise Level (Performance Mode) | ≤29.3 dB(A) |
| Noise Level (Quiet Mode) | ≤22.6 dB(A) |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Connector | 4-pin PWM |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.2 A per fan |
| Fan Power Consumption | 2.4W per fan |
| Total Power Consumption (Performance Mode) | 4.8 W |
| Total Power Consumption (Quiet Mode) | 3.6 W |
| Display Module Voltage | 5 VDC |
| Display Module Current | 0.08 A ±10% |
| Display Module Power Consumption | 0.4 W |
| Display Area | 44.6 × 53.6 mm |
| Intel Socket Compatibility | LGA2066, LGA2011-v3, LGA2011, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155 |
| AMD Socket Compatibility | AM5, AM4 |
| Warranty | 72 months |
Key Features
Ideal For
FAQs
What is the maximum TDP this cooler can handle?
The DeepCool ASSASSIN IV VC VISION DIGITAL is rated for 300W TDP, thanks to its vapour chamber base technology. This makes it suitable for high-end processors and sustained performance workloads.
Does this cooler support both Intel and AMD processors?
Yes. The cooler is compatible with Intel sockets (LGA2066, LGA2011-v3, LGA2011, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155) and AMD sockets (AM5, AM4).
What are the two sound profiles and how quiet is it?
The cooler features Performance Mode (≤29.3 dB) for maximum cooling capacity, and Quiet Mode (≤22.6 dB) for noise-sensitive environments. Both profiles are controlled via the digital display interface.
What is the digital display used for?
The quad-segmented digital display provides real-time monitoring of CPU temperature and performance metrics. It also allows users to adjust fan speed settings and switch between sound profiles.
How many fans does this cooler include?
The cooler includes two fans: a 140mm fan and a 120mm fan. Both feature 4-pin PWM connectors for speed control and fluid dynamic bearing technology for quiet, reliable operation.
What is the warranty period?
The DeepCool ASSASSIN IV VC VISION DIGITAL includes a 72-month (6-year) warranty.
Can I replace or upgrade the fans independently?
The cooler comes with both 140mm and 120mm fans. Both use standard 4-pin PWM connectors, allowing for potential fan replacement if needed, though DeepCool fans are recommended for optimal performance.
