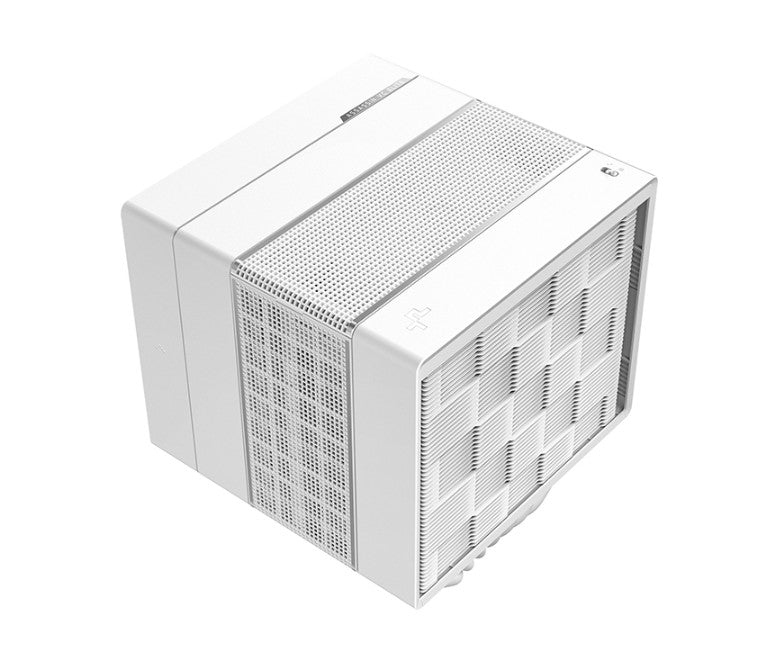

DeepCool ASSASSIN VC ELITE WH CPU Air Cooler
DeepCool ASSASSIN VC ELITE WH CPU Air Cooler
SKU:CFD-ASSASSIN-VC-E-WH
Couldn't load pickup availability
- See our return policy
- 72 months (6 years) Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Fan & Cooling Products |
| SKU | CFD-ASSASSIN-VC-E-WH |
| Availability | In Stock |
Overview
- The DeepCool ASSASSIN VC ELITE WH is a premium CPU cooler engineered for systems requiring robust thermal management. Its integrated vapour chamber technology dramatically improves heat dissipation at the base, while seven 6mm copper heat pipes distribute thermal energy efficiently across the cooling fins. This design achieves a 300W TDP capacity, making it suitable for high-end processors and demanding workloads.
The cooler ships with flexible fan configuration options—a 140mm fan for maximum airflow in Performance Mode (61.25 CFM) or a 120mm fan for space-constrained builds. Both operate quietly, reaching just 22.6 dB(A) in Quiet Mode, making the ASSASSIN VC ELITE WH ideal for systems where noise is a concern.
With broad socket compatibility spanning Intel's current and previous-generation platforms (LGA1700, LGA1200, and legacy LGA2066/2011-v3) and AMD's latest AM5 and AM4 processors, this cooler is a versatile choice for custom builders and system integrators. The 6-year warranty provides long-term confidence in this investment.
Specifications
| Brand | DeepCool |
|---|---|
| Model | ASSASSIN VC ELITE WH |
| Product Type | CPU Air Cooler |
| Colour | White |
| Base Technology | Vapour Chamber |
| Heat Pipes | 7 x Ø6 mm copper |
| TDP Capacity | 300W |
| Product Dimensions | 144 × 147 × 164 mm (L × W × H) |
| Heatsink Dimensions | 140 × 110 × 160 mm (L × W × H) |
| Net Weight | 1772 g |
| Intel Socket Support | LGA2066, LGA2011-v3, LGA2011, LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, LGA1155 |
| AMD Socket Support | AM5, AM4 |
| Fan Options | 140 × 140 × 25 mm (Performance) / 120 × 120 × 25 mm (Quiet) |
| Fan Speed Performance Mode | 140mm: 500–1800 RPM ±10% / 120mm: 500–1700 RPM ±10% |
| Fan Speed Quiet Mode | 140mm: 500–1450 RPM ±10% / 120mm: 500–1350 RPM ±10% |
| Airflow Performance Mode | 140mm: 61.25 CFM / 120mm: 58.06 CFM |
| Airflow Quiet Mode | 140mm: 48.55 CFM / 120mm: 46.75 CFM |
| Air Pressure Performance Mode | 140mm: 3.76 mmAq / 120mm: 2.1 mmAq |
| Air Pressure Quiet Mode | 140mm: 2.46 mmAq / 120mm: 1.35 mmAq |
| Noise Level Performance Mode | ≤29.3 dB(A) |
| Noise Level Quiet Mode | ≤22.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Motor Type | 6-Pole Fan Motor |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.2 A per fan |
| Fan Power Consumption | 2.4W per fan |
| Power Consumption Performance Mode | 4.8W |
| Power Consumption Quiet Mode | 3.6W |
| Warranty | 72 months (6 years) |
Key Features
Ideal For
FAQs
What Intel and AMD sockets does the ASSASSIN VC ELITE WH support?
The cooler is compatible with Intel LGA2066, LGA2011-v3, LGA2011, LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, and LGA1155 sockets, as well as AMD AM5 and AM4 sockets, making it suitable for a wide range of current and legacy processors.
What is the maximum TDP this cooler can handle?
The ASSASSIN VC ELITE WH has a 300W TDP capacity, making it suitable for high-performance and overclocked processors in demanding applications.
What are the noise levels in operation?
In Performance Mode, the cooler operates at ≤29.3 dB(A), while Quiet Mode reduces this to ≤22.6 dB(A), providing flexible operating options depending on your system's needs.
Does the cooler come with multiple fan options?
Yes, the ASSASSIN VC ELITE WH supports both 140mm and 120mm fans. The 140mm option provides higher airflow (61.25 CFM) for performance-focused builds, while the 120mm option is better suited to space-constrained chassis.
How does the vapour chamber improve cooling performance?
The vapour chamber at the base dramatically improves heat transfer from the CPU die to the heat pipes, enabling more efficient thermal dissipation and allowing the cooler to handle higher TDP processors compared to standard air coolers.
What warranty is included?
The DeepCool ASSASSIN VC ELITE WH includes a 6-year (72-month) warranty, providing long-term protection and confidence in your cooling solution.
Is the cooler suitable for overclocking?
Yes, the 300W TDP capacity and vapour chamber technology make this cooler a good choice for overclocked systems. However, always monitor temperatures and ensure your case has adequate airflow.
