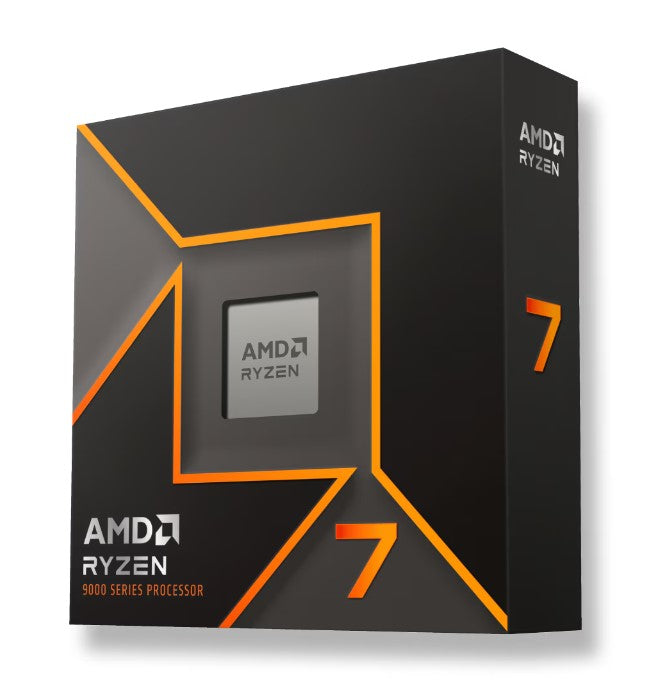

AMD Ryzen 7 9700X 8-Core Processor
AMD Ryzen 7 9700X 8-Core Processor
SKU:CPAR5-9700X
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | AMD |
|---|---|
| Category | CPU |
| SKU | CPAR5-9700X |
| Availability | In Stock |
Overview
- The AMD Ryzen 7 9700X is a next-generation desktop processor engineered for professionals and enthusiasts who demand performance without excessive power draw. Built on the advanced Zen 5 architecture with TSMC's 4nm process, it delivers 8 cores and 16 threads capable of sustained turbo frequencies up to 5.5 GHz, making it suitable for demanding workloads including content creation, 3D rendering, and software development.
With a modest 65W TDP, the 9700X provides excellent power efficiency compared to higher-tier processors, reducing cooling requirements and operational costs. The integrated AMD Radeon graphics enable basic display functionality without a discrete GPU for office and productivity tasks, while the 32 MB L3 cache and support for PCIe 5.0 ensure fast data throughput for modern SSDs and expansion cards.
The processor supports DDR5 memory up to 192 GB across two channels, offering a clear upgrade path for businesses modernising their computing infrastructure. Compatible with current-generation AM5 motherboards including the latest X870E and X870 chipsets, it provides flexibility for both new builds and strategic upgrades.
Specifications
| Brand | AMD |
|---|---|
| Model | Ryzen 7 9700X |
| Product Type | Boxed Desktop Processor |
| CPU Cores | 8 |
| Threads | 16 |
| Base Clock | 3.8 GHz |
| Max Boost Clock | 5.5 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache | 32 MB |
| TDP | 65 W |
| Architecture | Zen 5 |
| Process Technology (CPU) | TSMC 4nm FinFET |
| Process Technology (I/O) | TSMC 6nm FinFET |
| Socket | AM5 |
| Compatible Chipsets | A620, B650, B650E, X670, X670E, X870, X870E |
| Instruction Set | x86-64 |
| Boost Technology | Precision Boost 2 |
| Integrated Graphics | AMD Radeon Graphics (2 cores) |
| Graphics Frequency | 2200 MHz |
| PCIe Version | PCIe 5.0 |
| PCIe Lanes (Total/Usable) | 28 / 24 |
| Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 192 GB |
| Memory Speed | DDR5-5600 (2x1R / 2x2R), DDR5-3600 (4x1R / 4x2R) |
| USB 3.2 Gen 2 (10Gbps) | 4 ports |
| USB 2.0 (480Mbps) | 1 port |
| USB Type-C DisplayPort Alt Mode | Yes |
| NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
| Supported Operating Systems | Windows 11 64-Bit, Windows 10 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Thermal Solution | Not Included (Premium air cooler recommended) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Do I need a separate CPU cooler?
Yes, a cooler is not included with the boxed processor. AMD recommends using a premium air cooler for optimal performance and thermal management.
Which motherboards are compatible?
The Ryzen 7 9700X uses the AM5 socket and is compatible with A620, B650, B650E, X670, X670E, X870, and X870E chipset motherboards.
Can this processor handle gaming and content creation?
Yes, the 8-core / 16-thread configuration with up to 5.5 GHz boost makes it suitable for both gaming and professional workloads like video editing and 3D rendering.
Does it have integrated graphics?
Yes, the processor includes integrated AMD Radeon graphics with 2 cores running at 2200 MHz, enabling display output without a discrete graphics card.
What is the power consumption like?
The 65W TDP is considered very efficient for an 8-core processor, reducing cooling costs and power bills compared to higher-power alternatives.
What memory type does it support?
The processor supports DDR5 memory across two channels, with maximum capacity of 192 GB. Speeds up to DDR5-5600 are supported depending on configuration.
Is this processor good for business use?
Yes, it's well-suited for business workstations, server applications, and productivity tasks, offering strong multi-threaded performance at a reasonable power envelope.
