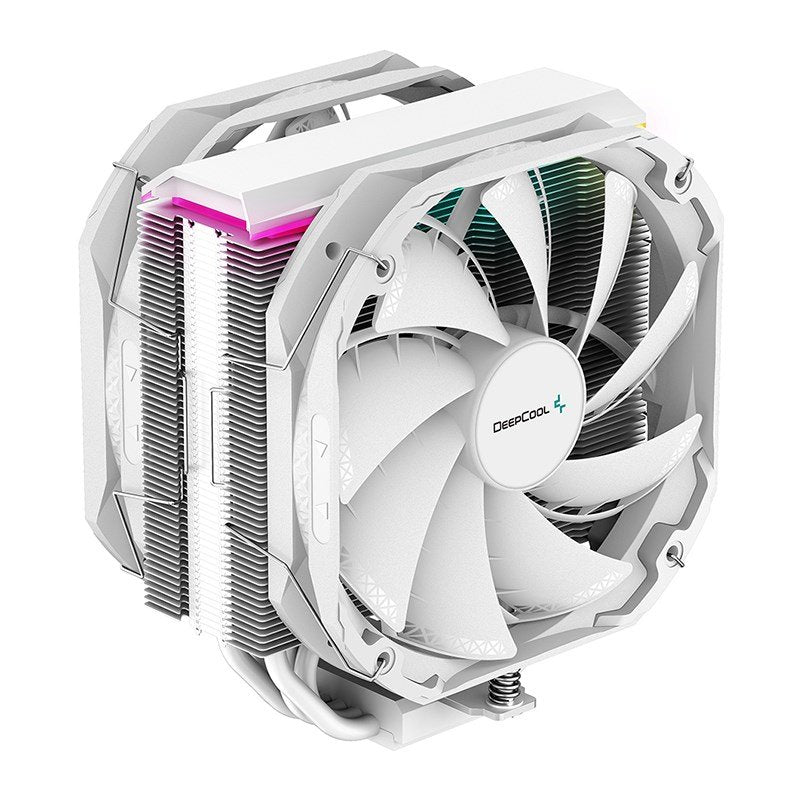

DeepCool AS500 PLUS White CPU Cooler
DeepCool AS500 PLUS White CPU Cooler
SKU:CFD-AS500-PLUS-WH
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Fan & Cooling Products |
| SKU | CFD-AS500-PLUS-WH |
| Availability | In Stock |
Overview
- The DeepCool AS500 PLUS White is a single tower CPU cooler engineered for modern computing builds where space and performance matter equally. With five directional heat pipes and high fin density, it efficiently transfers heat away from the processor whilst maintaining a compact 49mm footprint that won't interfere with tall RAM modules or case clearance.
Designed for versatility, the cooler supports a broad range of socket types including Intel LGA2066, LGA1851, and LGA1155, as well as AMD AM4 and AM5 platforms. The dual TF140S PWM fans deliver 70.81 CFM of airflow at controlled speeds (500–1200 RPM) whilst maintaining whisper-quiet operation at ≤29.2dB, making it suitable for both performance-focused builds and acoustically sensitive environments.
The all-white design includes addressable RGB LED lighting controlled via the included A-RGB controller, allowing integration with compatible motherboard RGB ecosystems. Whether you're upgrading an existing system or building from scratch, the AS500 PLUS White balances thermal effectiveness, space efficiency, and visual appeal.
Specifications
| Cooler Type | Single Tower Air Cooler |
|---|---|
| Heat Pipes | Five × Ø6 mm |
| Cooler Dimensions | 140 × 49 × 159 mm (W × D × H) |
| Package Dimensions | 142 × 102 × 164 mm |
| Net Weight | 1198 g |
| Socket Compatibility | LGA2066, LGA1851, LGA1155, AM4, AM5 |
| Fan Model | TF140S PWM |
| Fan Dimensions | 140 × 140 × 25 mm |
| Fan Speed | 500–1200 RPM (±10%) |
| Fan Airflow | 70.81 CFM |
| Fan Air Pressure | 1.14 mmAq |
| Fan Noise Level | ≤29.2 dB(A) |
| Fan Connector | 4-pin PWM |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.11 A |
| Fan Power Consumption | 1.32 W |
| LED Type | Addressable RGB |
| LED Connector | 3-pin (+5V, D, GND) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.4 W |
| Warranty | 12 months |
| EAN | 6933412727347 |
Key Features
Ideal For
FAQs
What socket types does the DeepCool AS500 PLUS support?
The AS500 PLUS White supports Intel LGA2066, LGA1851, LGA1155, and AMD AM4 and AM5 sockets, making it compatible with a wide range of current and recent generation processors.
Will this cooler fit in my case with tall RAM modules?
Yes. With a slim 49mm profile, the AS500 PLUS has one of the lowest heights in its class, allowing excellent compatibility with tall RAM modules and smaller case builds.
How loud are the fans?
The dual TF140S PWM fans operate at ≤29.2 dB(A) at maximum speed, making them quiet enough for office and home environments whilst delivering strong thermal performance.
Can I control the RGB lighting?
Yes. The cooler includes an addressable RGB (A-RGB) LED controller that allows customisation and integration with compatible motherboard RGB systems.
What is the warranty period?
The DeepCool AS500 PLUS White comes with a 12-month manufacturer warranty covering manufacturing defects.
Do I need to purchase thermal paste separately?
This information is not provided in the product specifications. We recommend contacting our sales team or checking the product packaging for included mounting materials.
What is the maximum cooling capacity?
The five heat pipe design with high fin density and dual PWM fans provides effective cooling for modern mid-range to high-end processors. Specific TDP ratings depend on your processor and case airflow.
