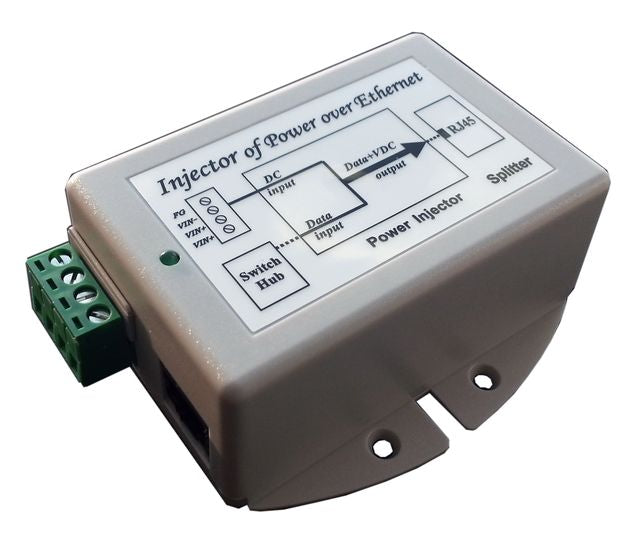

Tycon Power TP-DCDC-1224 DC to DC PoE Converter 19W
Tycon Power TP-DCDC-1224 DC to DC PoE Converter 19W
SKU:NHU-TP-DCDC-1224
The Tycon Power TP-DCDC-1224 is a DC to DC PoE converter designed for battery-powered networks. Featuring 9-36VDC input flexibility, 24VDC passive PoE output, and dual power source connectivity, it delivers reliable power distribution for wireless access points, IP cameras, and security systems.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Tycon |
|---|---|
| Category | Network - SMB |
| SKU | NHU-TP-DCDC-1224 |
| Availability | In Stock |
Overview
- The Tycon Power TP-DCDC-1224 is a passive PoE converter that bridges 12V or 24V battery systems to standard Ethernet-powered devices. It accepts input voltage between 9VDC and 36VDC and outputs regulated 24VDC power injected onto the unused pins of Cat5/Cat6 cables, eliminating the need for separate power runs to remote network equipment.
Designed for reliability in demanding environments, the TP-DCDC-1224 features dual power inputs for connecting primary and backup sources, ensuring continuous operation during power transitions. The integrated PoE injector applies power to Ethernet pins 4, 5 (V+) and 7, 8 (V-), maintaining full data transmission alongside power delivery.
Built for rugged deployments, this converter includes surge, short circuit, reverse voltage, and overload protection. Its compact form factor and DIN rail mounting capability make it ideal for industrial installations, wireless access points, security camera networks, and VoIP systems in remote or battery-powered locations.
Specifications
| Input Voltage Range | 9-36VDC |
|---|---|
| Output Voltage | 24VDC Passive PoE |
| Maximum Power Output | 19W |
| Power Sources | Dual inputs (primary and backup) |
| PoE Injector | Integrated 10/100MB |
| Ethernet Support | Cat5/Cat6 cables |
| PoE Pins | Pins 4, 5 (V+) and 7, 8 (V-) |
| Protections | Surge, short circuit, reverse voltage, overload |
| Temperature Operation | High temperature rated |
| Mounting | DIN rail mountable (requires optional DIN-ClipKit-UNI) |
| Enclosure | Compact industrial design |
| Certification | UL Listed ITE Power Supply |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What input voltage range does the TP-DCDC-1224 accept?
The converter accepts input voltage between 9VDC and 36VDC, making it compatible with 12V and 24V battery systems as well as variable power sources.
How does the PoE injector work?
The integrated PoE injector applies 24VDC to the unused pins (4, 5, 7, 8) of Cat5/Cat6 Ethernet cables, delivering power alongside data transmission without requiring a separate power cable.
Can I connect multiple power sources?
Yes, the TP-DCDC-1224 features dual power inputs for connecting a primary power source with a backup, providing redundancy for critical installations.
What devices can this converter power?
It's designed for wireless access points, IP security cameras, VoIP phones, and other PoE-compatible devices rated for 24VDC passive PoE power.
Does it support IEEE 802.3af compliance?
The TP-DCDC-1224 is a passive PoE injector. An IEEE 802.3af compliant variant is available if your application requires 802.3af handshake protocol.
Is it suitable for industrial environments?
Yes, the TP-DCDC-1224 is rated for high temperature operation and includes comprehensive protection against surge, short circuit, and overload, making it ideal for harsh industrial deployments.
How is it mounted in installations?
The converter is DIN rail mountable using optional DIN-ClipKit-UNI adapters, allowing easy integration into standard network enclosures and cabinets.
