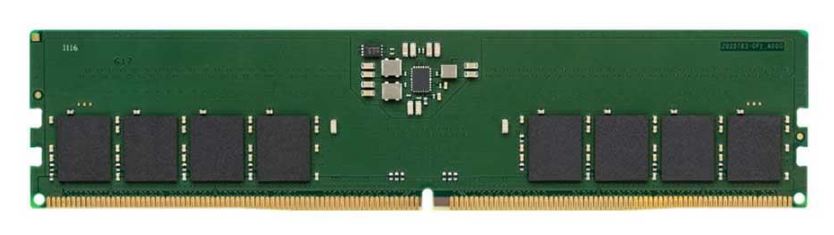

Kingston 16GB DDR5 5600MT/s UDIMM Desktop Memory
Kingston 16GB DDR5 5600MT/s UDIMM Desktop Memory
SKU:MEKVR56U46BS8-16
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Kingston |
|---|---|
| Category | Memory |
| SKU | MEKVR56U46BS8-16 |
| Availability | In Stock |
Overview
- The Kingston KVR56U46BS8-16 is a 16GB DDR5 UDIMM memory module engineered for modern desktop platforms supporting DDR5. With 5600MT/s speed and CL46 latency, it provides the bandwidth and responsiveness required for demanding applications including gaming, 3D rendering, and professional software.
This module operates at a typical voltage of 1.1V, contributing to efficient power consumption without compromising performance. The non-ECC, unbuffered design makes it ideal for consumer-grade systems and workstations where single-module density and cost-effectiveness matter.
Kingston's quality standards ensure compatibility and reliability across supported platforms. The module is RoHS compliant and halogen-free, meeting contemporary environmental standards.
Specifications
| Capacity | 16GB |
|---|---|
| Module Type | UDIMM (Unbuffered) |
| Memory Technology | DDR5 |
| Speed | 5600MT/s |
| Latency (CAS) | CL46 |
| Rank Configuration | 1RX8 |
| Voltage (VDD) | 1.1V typical |
| Voltage (VDDQ) | 1.1V typical |
| Voltage (VPP) | 1.8V typical |
| Voltage (VDDSPD) | 1.8V to 2.0V |
| Pin Count | 288-pin |
| Form Factor | UDIMM |
| ECC Type | On-Die ECC |
| PCB Height | 31.25mm (1.23 inches) |
| Row Cycle Time (tRCmin) | 48ns minimum |
| Refresh to Active Time (tRFCmin) | 295ns minimum |
| Row Active Time (tRASmin) | 32ns minimum |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| UL Rating | 94V-0 |
| Compliance | RoHS compliant, halogen-free |
| Manufacturer Warranty | 12 months |
Key Features
Ideal For
FAQs
What systems support the Kingston DDR5 5600MT/s module?
This module is compatible with desktop platforms supporting DDR5 UDIMM memory. Check your motherboard specifications to confirm DDR5 support before purchase. Most modern Intel 13th Gen and AMD Ryzen 7000 series systems and newer support DDR5.
Can I use this module alongside DDR4 memory?
No. DDR5 and DDR4 are not compatible. Your system must support DDR5 exclusively. Attempting to mix generations will result in incompatibility and system failure to boot.
Is 16GB sufficient for gaming and content creation?
16GB is suitable for most gaming scenarios and light to moderate content creation. For professional 4K video editing, 3D rendering, or heavy multitasking, consider 32GB or more.
What does On-Die ECC do?
On-Die ECC provides error-correcting code at the memory chip level, detecting and correcting single-bit errors automatically. This improves data reliability without requiring system-level ECC support.
What is the warranty coverage?
Kingston provides a 12-month manufacturer warranty covering defects in materials and workmanship. Hyetech Australia facilitates warranty claims in accordance with Kingston's terms.
Is this memory suitable for overclocking?
This module is rated at 5600MT/s. Overclocking capabilities depend on your motherboard and CPU support. Always verify your system's specifications and stability when attempting overclocking.
