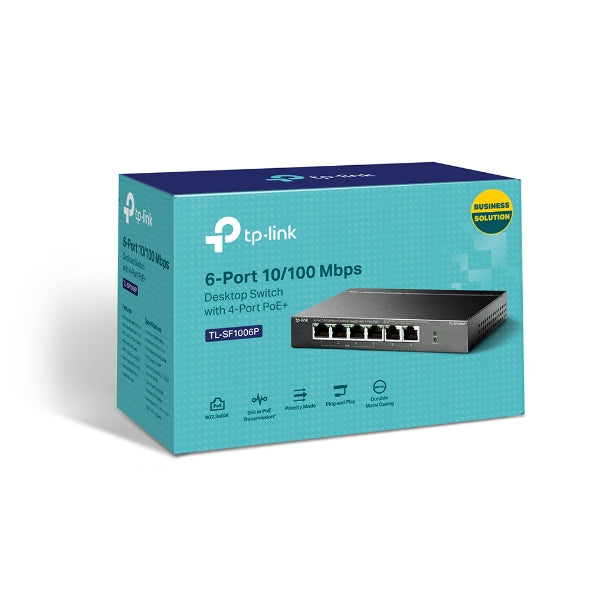

TP-Link TL-SF1006P 6-Port Desktop Switch with PoE+
TP-Link TL-SF1006P 6-Port Desktop Switch with PoE+
SKU:NWTL-SF1006P
The TP-Link TL-SF1006P is a 6-port desktop switch with integrated Power over Ethernet Plus (PoE+) support. Featuring four PoE+ ports delivering up to 30W each, fanless operation, and plug-and-play deployment, it simplifies network connectivity and device powering for small offices and workgroups.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SF1006P |
| Availability | In Stock |
Overview
- The TP-Link TL-SF1006P is a compact 6-port desktop switch designed for small offices and workgroups. Four of its ports support Power over Ethernet Plus (PoE+), allowing you to power and connect devices such as IP cameras, wireless access points, and VoIP phones using a single cable. This eliminates the need for separate power supplies and reduces installation complexity.
With a total power budget of 67W and individual port support for up to 30W, the switch accommodates a wide range of powered devices simultaneously. The extended transmission mode allows data and power delivery over distances up to 250 metres, making it ideal for larger installations or difficult-to-reach locations. Priority mode can be enabled on the first two ports to guarantee service quality for mission-critical applications.
The switch is fanless and operates silently, making it suitable for offices where noise is a concern. Built-in AUTO negotiation and MDI/MDIX ensure automatic cable type detection and port compatibility. With no configuration required, the TL-SF1006P is ready to use immediately after power-on, reducing setup time and technical overhead for busy IT teams.
Specifications
| Ports | 6 × 10/100 Mbps RJ45 (Ports 1–4 with PoE+) |
|---|---|
| PoE Standard | IEEE 802.3af/at compliant |
| PoE Power Budget | 67W total; 30W per port maximum |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.8928 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame Support | 2 KB |
| Transmission Method | Store-and-forward |
| Auto Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Extended Range Mode | Up to 250m (Ports 1–4) |
| Priority Mode | Available (Ports 1–2) |
| Cooling | Fanless |
| Physical Security | Lock provision |
| Power Supply | External 53.5V DC / 1.31A adapter |
| Power Consumption (No PD) | 1.9W |
| Power Consumption (67W PD) | 74W |
| Heat Dissipation (No PD) | 6.48 BTU/h |
| Heat Dissipation (67W PD) | 252.34 BTU/h |
| Network Media | 10BASE-T / 100BASE-TX (Cat3/Cat5/Cat5e UTP or STP, max 100m) |
| Dimensions | 158 × 101 × 25 mm (W × D × H) |
| Certifications | FCC, CE, RoHS |
| Operating Temperature | 0–40°C |
| Storage Temperature | -40–70°C |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is Power over Ethernet Plus (PoE+) and why do I need it?
PoE+ allows the switch to deliver both data and electrical power over a single Ethernet cable. This eliminates the need for separate power supplies for devices like IP cameras, wireless access points, and VoIP phones, simplifying installation and reducing cable clutter.
Can I power multiple devices at the same time?
Yes. The TL-SF1006P has a total power budget of 67W across four PoE+ ports. You can connect multiple devices simultaneously as long as their combined power draw does not exceed 67W. Each port supports up to 30W individually.
What devices are compatible with this switch?
The switch is compatible with any IEEE 802.3af/at compliant powered device (PD), including IP cameras, wireless access points, VoIP phones, access controllers, and other low-power networked equipment.
What is Extend Mode and when would I use it?
Extend Mode on Ports 1–4 allows data and power transmission over distances up to 250 metres, compared to the standard 100m limit. This is useful for reaching devices in remote locations such as outdoor cameras or roof-mounted access points.
Is this switch suitable for large networks?
The TL-SF1006P is designed for small office and workgroup environments. It is plug-and-play with no management features, making it ideal for straightforward network setups. Larger enterprises may require managed switches with advanced features.
Does the switch require configuration or drivers?
No. The TL-SF1006P is completely plug-and-play. It requires no configuration, drivers, or software installation. Simply connect power and cables, and it begins operating immediately.
What is Priority Mode?
Priority Mode on Ports 1–2 prioritises traffic from these ports to guarantee service quality for sensitive or mission-critical applications, helping prevent network congestion affecting those devices.
Is the switch fanless and quiet?
Yes. The TL-SF1006P is completely fanless, producing no operational noise. This makes it suitable for quiet office environments, meeting rooms, and noise-sensitive installations.
