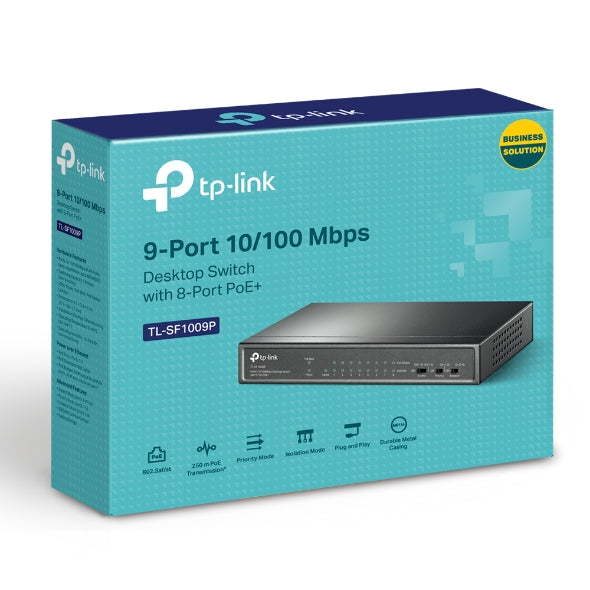

TP-Link TL-SF1009P 9-Port Desktop Switch with PoE+
TP-Link TL-SF1009P 9-Port Desktop Switch with PoE+
SKU:NWTL-SF1009P
The TP-Link TL-SF1009P is a 9-port desktop network switch designed for small office and business networks requiring Power over Ethernet. Featuring 8 PoE+ ports with up to 65W total power delivery, fanless operation, and plug-and-play installation, it simplifies network deployment for cost-conscious IT managers.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SF1009P |
| Availability | In Stock |
Overview
- The TP-Link TL-SF1009P is a compact, fanless desktop switch purpose-built for small to medium business networks. With 8 integrated PoE+ ports delivering up to 65W of total power, it eliminates the need for separate power infrastructure when deploying powered devices like IP cameras, access points, and VoIP phones. The switch supports extended PoE transmission up to 250m, making it ideal for distributed network layouts.
Operating without fans, the TL-SF1009P runs silently and requires no maintenance—a key advantage in office environments and small data closets. Its Priority Mode protects critical traffic on ports 1–2, whilst Isolation Mode enables one-click security segmentation for client traffic separation. Auto MDI/MDIX negotiation and auto-learning MAC tables ensure hassle-free installation and reliable operation across diverse network configurations.
With 1.8 Gbps switching capacity and IEEE 802.3af/at compliance, this switch delivers solid performance for entry-level business networks. The external 53.5VDC power adapter keeps heat dissipation low and extends device lifespan. Backed by a 60-month warranty, it offers long-term reliability for organisations seeking a simple, cost-effective PoE switching solution.
Specifications
| Brand | TP-Link |
|---|---|
| Model | TL-SF1009P |
| Product Type | Desktop Network Switch |
| Ports | 9 × 10/100 Mbps RJ45 (8 PoE+) |
| PoE Standard | IEEE 802.3af/at |
| PoE Power (Total) | 65W maximum |
| PoE Power (Per Port) | 30W maximum |
| PoE Transmission Range | 100m standard, up to 250m in Extend Mode |
| Switching Capacity | 1.8 Gbps |
| Packet Forwarding Rate | 1.3392 Mpps |
| MAC Address Table | 2K entries |
| Jumbo Frame Support | 2 KB |
| Auto Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Transmission Method | Store-and-Forward |
| Advanced Modes | Priority Mode, Isolation Mode, Extend Mode |
| Flow Control | IEEE 802.3x full-duplex, backpressure half-duplex |
| Cooling | Fanless (passive) |
| Physical Security | Security lock slot |
| Power Supply | External adapter (53.5VDC / 1.31A) |
| Power Consumption (No PoE) | 3.6W @ 220/50Hz |
| Power Consumption (With PoE) | 77.08W @ 220/50Hz |
| Heat Dissipation (No PoE) | 12.28 BTU/h |
| Heat Dissipation (With PoE) | 262.84 BTU/h |
| Dimensions (W × D × H) | 171 × 98 × 27mm |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is PoE+ and how does the TL-SF1009P support it?
Power over Ethernet Plus (PoE+) is an IEEE 802.3at standard that delivers power and data over a single Ethernet cable. The TL-SF1009P provides up to 65W total PoE power across 8 ports (30W per port), enabling you to power devices like IP cameras, wireless access points, and VoIP phones without separate electrical infrastructure.
Can I power all 8 PoE ports simultaneously at maximum wattage?
The TL-SF1009P has a total PoE power budget of 65W for all 8 ports combined. Whilst each port can deliver up to 30W, the total system is limited to 65W. You can power multiple devices, but the total power draw across all active PoE ports cannot exceed 65W.
What does Extend Mode do and why would I use it?
Extend Mode allows PoE power and data transmission up to 250m (compared to the standard 100m Ethernet limit). This is useful for deploying access points, cameras, or other powered devices in distant locations such as warehouses, car parks, or building perimeters without requiring additional power supplies.
Is configuration required to use this switch?
No. The TL-SF1009P is plug-and-play. Simply connect your devices to the ports and it begins forwarding traffic immediately. Advanced features like Priority Mode, Isolation Mode, and Extend Mode are activated via physical buttons on the device—no software configuration is needed.
How does Isolation Mode improve network security?
Isolation Mode separates client traffic with a single button press, preventing devices on different ports from communicating with each other whilst maintaining access to an uplink port. This is useful in multi-tenant environments or when you want to segment networks without complex VLAN configuration.
What network devices are compatible with this switch?
The TL-SF1009P is compatible with any IEEE 802.3af/at-compliant powered device (PD), including IP cameras, wireless access points, VoIP phones, access controllers, and IoT sensors. Auto MDI/MDIX ensures compatibility with any standard Ethernet cable orientation.
Why is fanless design important?
Fanless operation means the switch produces no noise, requires no filter cleaning, and has no moving parts to fail. This makes it ideal for office environments, meeting rooms, or installations where silent operation and reliability are priorities.
What warranty does the TL-SF1009P include?
This switch is backed by a comprehensive 60-month (5-year) warranty, providing long-term protection for your investment and peace of mind in business-critical applications.
