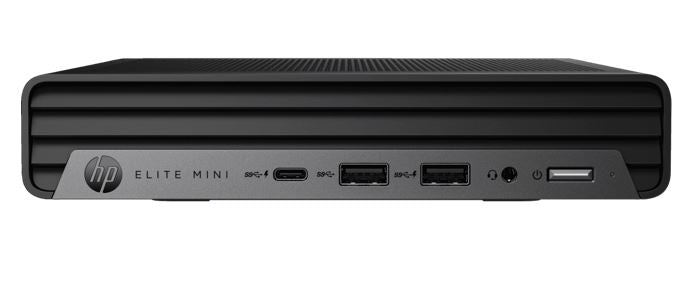

HP Elite Mini 800 G9 Desktop PC Intel i5-14500T 16GB DDR5
HP Elite Mini 800 G9 Desktop PC Intel i5-14500T 16GB DDR5
SKU:SYHP-800M-I5161TBG9R
The HP Elite Mini 800 G9 is a compact commercial desktop PC powered by Intel Core i5-14500T vPro processor. Featuring 16GB DDR5 memory, 1TB SSD storage, Windows 11 Pro, and integrated Intel UHD Graphics 770, it delivers reliable performance for business professionals and IT-managed environments.
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | HP |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYHP-800M-I5161TBG9R |
| Availability | Out of Stock |
Overview
- The HP Elite Mini 800 G9 is a compact commercial desktop PC designed for organisations seeking powerful, secure, and space-efficient computing. Its Intel Core i5-14500T vPro processor with 14 cores and 20 threads delivers reliable performance for business applications, whilst the 16GB DDR5 memory and 1TB SSD ensure responsive multitasking and fast boot times.
Built for managed IT environments, the Elite Mini 800 G9 includes comprehensive security features: TPM 2.0, HP BIOSphere Gen6, HP Sure Start Gen7, and HP Secure Erase. These tools provide protection against firmware attacks, malware, and unauthorised access. Windows 11 Pro with vPro support enables remote management and deployment across enterprise networks.
The compact mini form factor makes it ideal for space-constrained offices, reception areas, and hot-desking environments. Dual DisplayPort and HDMI outputs support multi-monitor setups for enhanced productivity. Intel Wi-Fi 6E connectivity and Bluetooth 5.3 provide reliable wireless networking without sacrificing performance.
With ENERGY STAR certification and 45% post-consumer recycled plastic, this system meets sustainability commitments. The 3-year comprehensive warranty and HP Smart Support ensure business continuity and peace of mind.
Specifications
| Operating System | Windows 11 Pro |
|---|---|
| Processor | Intel Core i5-14500T |
| Processor Generation | 14th generation |
| Processor Cores | 14 cores, 20 threads |
| Processor Base Frequency | Up to 4.8 GHz Max Turbo |
| Processor Cache | 24 MB L3 cache |
| Chipset | Intel Q670 vPro |
| Graphics | Intel UHD Graphics 770 (integrated) |
| Memory | 16GB DDR5-5600 MT/s (2 x 8GB) |
| Memory Speed | 5600 MT/s |
| Internal Storage | 1TB Crucial P310 NVMe SSD Gen4 2280 |
| Storage Read Speed | 7100 MB/s |
| Storage Write Speed | 6000 MB/s |
| Storage Durability | 220TBW, 1.5M hours MTTF |
| Storage IOPS | 1000K read, 1200K write |
| M.2 Slots | 1 x M.2 2230 (WLAN), 2 x M.2 2280 (storage) |
| HDD Bays | One 2.5-inch HDD bay |
| Form Factor | Mini desktop |
| Front USB Ports | 2 x USB 3.1 Type-A (10Gbps), 1 x USB Type-C (20Gbps) |
| Audio | Realtek ALC3252 codec with universal audio jack |
| Headset Support | CTIA and OMTP compatible |
| Wireless Network | Intel Wi-Fi 6E AX211 (2x2) |
| Bluetooth | Bluetooth 5.3 |
| Video Output | 2 x DisplayPort, 1 x HDMI |
| Power Supply | 90W external power adapter with active PFC |
| Power Efficiency | Up to 89% efficiency |
| Operating Temperature | 10 to 35°C |
| Energy Certification | ENERGY STAR certified |
| Environmental | EPEAT registered, 45% post-consumer recycled plastic |
| Security Features | TPM 2.0, HP BIOSphere Gen6, HP Sure Start Gen7, HP Sure Run Gen5, HP Sure Recover Gen5, HP Sure Erase, HP Sure Click, HP Sure Sense, HP Sure Admin, Absolute Persistence module, HP Tamper Lock, HP Client Security Manager Gen7 |
| Management | HP Client Catalog, HP Driver Packs, HP Image Assistant, HP Client Management Script Library, HP Connect for Microsoft Endpoint Manager, HP Manageability Integration Kit, HP Patch Assistant |
| Included Peripherals | HP Wired Desktop 320K Keyboard, HP Wired 320M Mouse |
| Warranty | 3 years |
| Common Criteria | EAL4+ certified |
| FIPS Certification | FIPS 140-2 Level 2 |
Key Features
Ideal For
FAQs
What makes the Elite Mini 800 G9 suitable for enterprise environments?
The system includes comprehensive vPro management capabilities, TPM 2.0 security, HP BIOSphere Gen6 firmware protection, and support for Microsoft Endpoint Manager. These features enable centralised device management, remote configuration, and enforcement of security policies across organisational networks.
Can the Elite Mini 800 G9 support multiple monitors?
Yes. The system includes 2 DisplayPort and 1 HDMI video output, allowing you to connect up to 3 displays simultaneously. This is ideal for productivity-focused roles requiring extended screen real estate.
What storage expansion options are available?
The Elite Mini 800 G9 features 1 x M.2 2230 slot for WLAN and 2 x M.2 2280 slots for NVMe SSD storage. It also has one 2.5-inch HDD bay for additional capacity. The included 1TB Crucial P310 SSD can be supplemented with additional drives.
Is the Elite Mini 800 G9 suitable for video conferencing and collaborative work?
Yes. The system's Intel i5-14500T processor, 16GB DDR5 memory, and integrated graphics handle video conferencing smoothly. Wi-Fi 6E and Bluetooth 5.3 provide reliable wireless connectivity for headsets and peripherals.
What warranty and support is provided?
The system includes a 3-year comprehensive warranty with HP Smart Support. The Crucial P310 SSD is also covered with replacement and return warranty.
Is the Elite Mini 800 G9 energy efficient?
Yes. The system is ENERGY STAR certified with 89% efficient power delivery. It also features 45% post-consumer recycled plastic and is EPEAT registered, making it environmentally responsible.
What security features protect against malware and unauthorised access?
The system includes HP Sure Start Gen7 (firmware protection), HP Sure Run Gen5 (runtime resilience), HP Sure Recover Gen5 (recovery capabilities), HP Sure Erase (data sanitisation), and HP Secure Erase. Combined with TPM 2.0 and FIPS 140-2 Level 2 certification, these provide multi-layered protection.
Is the Elite Mini 800 G9 suitable for organisations with limited desk space?
Absolutely. The compact mini form factor occupies minimal desk space whilst maintaining full business performance. It's ideal for reception areas, call centres, hot-desking environments, and space-constrained offices.
