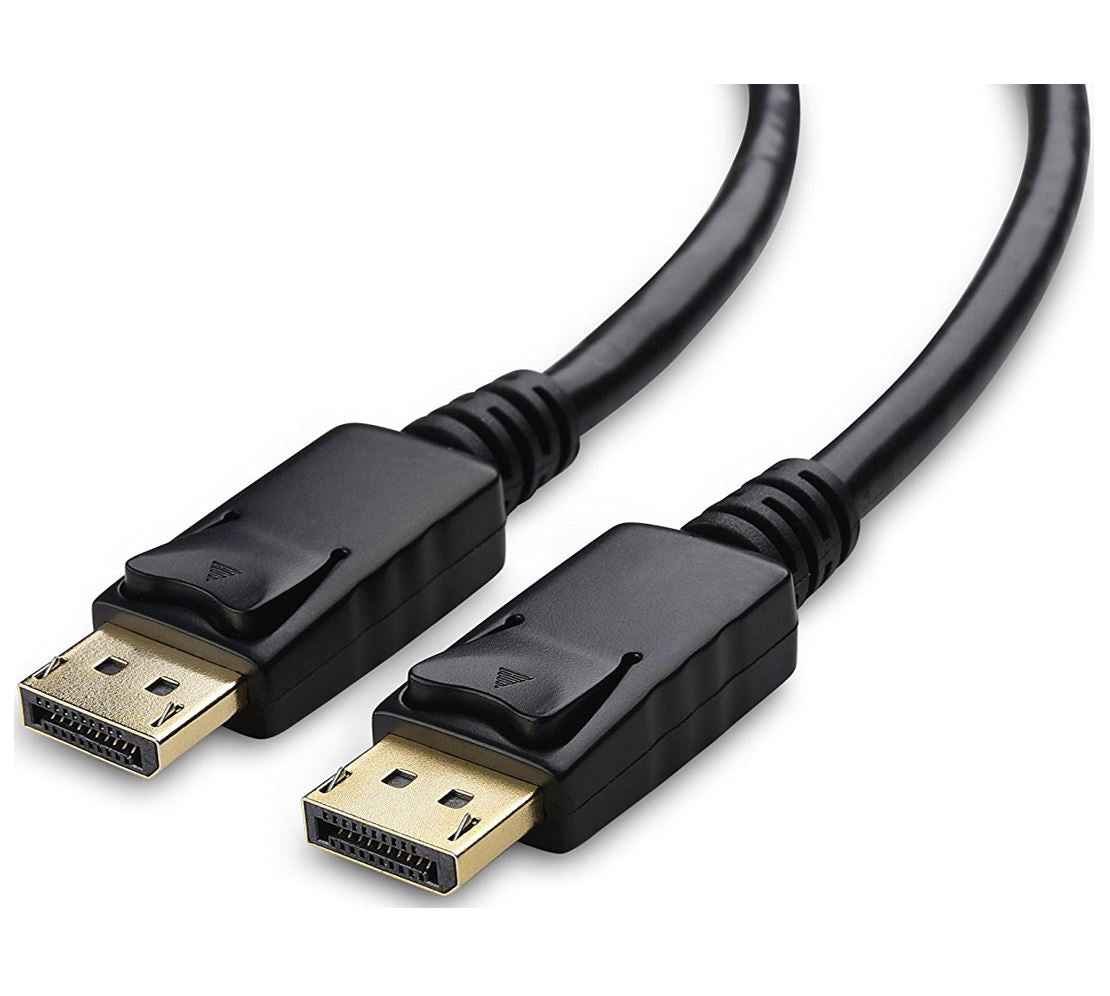

Astrotek DisplayPort DP Cable 5m Male to Male
Astrotek DisplayPort DP Cable 5m Male to Male
SKU:CBAT-DP-MM-5M
The Astrotek DisplayPort DP Cable is a 5-metre male-to-male connector supporting DP1.2 4K resolution. Featuring gold-plated connectors, RoHS compliance, and 30AWG copper construction, it delivers reliable digital video and audio transmission for professional and commercial setups.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Astrotek |
|---|---|
| Category | Cables |
| SKU | CBAT-DP-MM-5M |
| Availability | Out of Stock |
Overview
- The Astrotek DisplayPort DP Cable is a professional-grade 5-metre video and audio interconnect designed for modern digital displays and workstations. Built to DisplayPort 1.2 specifications, it supports 4K resolution at full bandwidth (10.8Gbps), making it ideal for high-performance video applications in offices, media production, and commercial environments.
The cable features gold-plated connectors with mechanical latches to ensure secure, reliable connections without signal loss or accidental disconnection. Its 30AWG construction and RoHS compliance provide durability and environmental responsibility.
Whether connecting desktop computers to 4K monitors, establishing multi-display workstations, or integrating professional projectors, this cable delivers both video and audio through a single connection, reducing cable clutter and simplifying installation.
Specifications
| Brand | Astrotek |
|---|---|
| Model | AT-DP-MM-5M |
| Product Type | DisplayPort Cable |
| Connector Type | Male to Male DisplayPort 1.2 |
| Cable Length | 5 metres |
| Pin Configuration | 20 pins |
| Wire Gauge | 30AWG |
| Connector Plating | Gold plated |
| Maximum Bandwidth | 10.8Gbps |
| Maximum Resolution | 4096 × 2160 (4K) |
| Cable Jacket | Black PVC |
| Connector Design | Latched connectors |
| Compliance | RoHS |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What resolution does the Astrotek DisplayPort cable support?
This DisplayPort 1.2 cable supports up to 4K resolution (4096 × 2160) with a bandwidth of 10.8Gbps, making it suitable for high-resolution displays and professional monitors.
Can this cable transmit both video and audio?
Yes, DisplayPort cables transmit both digital video and audio signals through a single connection, eliminating the need for separate audio cables.
Is the 5-metre cable length suitable for my setup?
A 5-metre cable is suitable for most office and commercial installations. If you require a different length, consult our product range or contact Hyetech Australia for alternatives.
What does gold plating on the connectors provide?
Gold-plated connectors provide superior corrosion resistance, reduced signal interference, and more reliable electrical contact compared to standard connectors.
Is this cable backward compatible with older DisplayPort versions?
DisplayPort 1.2 is backward compatible with earlier DisplayPort versions, though the maximum bandwidth and resolution may be limited by the older device.
What does RoHS compliance mean?
RoHS (Restriction of Hazardous Substances) compliance means the cable is manufactured without harmful materials such as lead, mercury, or cadmium, making it environmentally safer.
