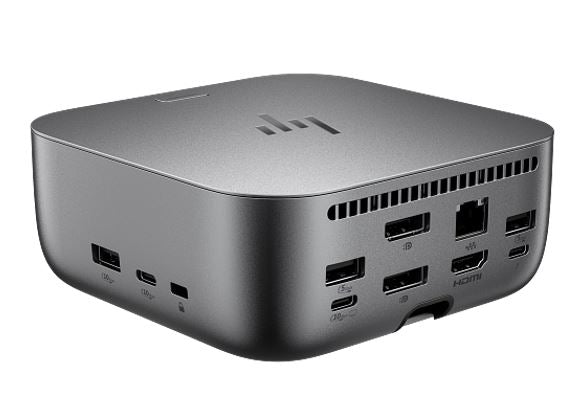

HP Dock G6 Thunderbolt 4 Ultra Docking Station
HP Dock G6 Thunderbolt 4 Ultra Docking Station
SKU:NAHP-DOCKG6180W
The HP Dock G6 Thunderbolt 4 is a ultra docking station designed for mobile professionals and office workers. Featuring 180W power delivery, quad monitor support, and comprehensive connectivity including DisplayPort, HDMI, and 2.5GbE networking, it delivers seamless productivity for HP and compatible third-party notebooks.
Couldn't load pickup availability
- See our return policy
- HP three-year limited warranty Manufacturer Warranty
Product Information
| Brand | HP |
|---|---|
| Category | Notebook Accessories |
| SKU | NAHP-DOCKG6180W |
| Availability | In Stock |
Overview
- The HP Dock G6 Thunderbolt 4 is a premium docking station engineered for professionals who demand extensive connectivity and productivity without compromise. With support for up to four external displays simultaneously, it eliminates the need for multiple adapters and cables, simplifying workspace organisation whilst maintaining clean desk environments.
Designed for compatibility across HP and select third-party systems including Dell, Lenovo, and Apple notebooks, the Dock G6 delivers up to 180W of power via Thunderbolt 4, enabling fast charging whilst simultaneously supporting dual USB-C connections, four USB-A ports, dual DisplayPort 1.4 outputs, HDMI 2.1, and 2.5GbE networking. This comprehensive port selection makes it ideal for organisations with mixed-device environments.
Management features including Wake on LAN, PXE Boot, Intel vPro Technology support, and disconnected firmware updates make it suitable for enterprise deployments. The included Poly Lens software with automatic firmware updates ensures the dock remains current and secure. Its compact design and mechanical power button with RGB LED indicator provide both functionality and visual feedback in professional settings.
The three-year limited HP warranty provides peace of mind for business-critical docking infrastructure.
Specifications
| Connection Type | Thunderbolt 4 (40 Gbps) |
|---|---|
| Cable | 1m Thunderbolt 4 cable included |
| Power Delivery | Up to 180W via Thunderbolt 4 (USB Power Delivery 3.1) |
| External Power Adapter | 230W |
| Power Profiles | 5V/3A, 9V/3A, 12V/5A, 15V/5A, 20V/5A |
| Maximum Current | 6.15A |
| Operating Voltage | 19.5V |
| Display Support | Up to 4 external displays (or 3 external + 1 PC display) |
| Maximum Resolution | Up to 8K |
| Maximum Refresh Rate | 360Hz |
| Ports | 1x Thunderbolt 4 with USB Type-C (40Gbps)1x USB Type-C (10Gbps, USB Power Delivery, DisplayPort 1.4)2x USB-A (5Gbps, charging)1x HDMI 2.12x DisplayPort 1.41x RJ-45 (2.5 GbE) |
| Network | 2.5 Gigabit Ethernet |
| Security | 1x Nano security lock slot |
| LED Indicators | Front RGB LED bar (white, blue, amber, green, red); Power button RGB LED |
| Power Button | Mechanical with RGB LED indicator |
| Management Features | HP CMSL, Wake on LAN, PXE Boot, MAC address pass-through, LAN/WLAN switching, Event messaging, Intel vPro Technology (wired) |
| Management Software | Poly Lens with automatic firmware updates |
| Compatible Operating Systems | Windows 10, Windows 11, macOS, Linux, ThinPro, ChromeOS |
| Device Compatibility | HP commercial PCs; tested with Dell, Lenovo, and Apple systems; requires USB Type-C or Thunderbolt 4 port with Power Delivery support |
| Drivers Included | Intel NIC driver, Realtek NIC driver (ARM and Windows) |
| I/O Port Location | Rear |
| Dimensions (W x D x H) | 12.1 x 12.1 x 4.95 cm |
| Package Dimensions (W x D x H) | 39.6 x 17.1 x 9.5 cm |
| Weight | 1.14 kg |
| Operating Temperature Range | 32 to 95°F |
| Non-Operating Temperature Range | -20 to 60°C |
| Operating Humidity Range | 10 to 90% non-condensing |
| Non-Operating Humidity Range | 5 to 95% non-condensing |
| Operating Altitude | -15 to 3,048m |
| Manufacturer Warranty | HP three-year limited warranty |
| Certification | Intel Thunderbolt 4 |
Key Features
Ideal For
FAQs
Which notebook brands and models are compatible with the HP Dock G6 Thunderbolt 4?
The dock is tested and validated with HP commercial PCs and select third-party systems including Dell, Lenovo, and Apple notebooks. All compatible devices must have a USB Type-C or Thunderbolt 4 port with Power Delivery and DisplayPort Alt Mode support. For a complete list of HP notebook compatibility, visit the HP compatibility database at pcb.inc.hp.com.
Can the HP Dock G6 power my notebook whilst supporting multiple external displays?
Yes. The dock delivers up to 180W of power via Thunderbolt 4 whilst simultaneously supporting up to four external displays. This allows you to charge your notebook and maintain full productivity without additional power adapters.
How many displays can I connect to the HP Dock G6?
The dock supports up to four external displays simultaneously, or three external displays plus one PC display. It features two DisplayPort 1.4 outputs, one HDMI 2.1 port, and leverages the host notebook's native display, providing maximum flexibility for multi-monitor setups.
What operating systems does the HP Dock G6 support?
The dock is compatible with Windows 10, Windows 11, macOS, Linux, ThinPro, and ChromeOS. Appropriate drivers and firmware are included to ensure seamless operation across these platforms.
Does the dock include network connectivity?
Yes. The dock includes a 2.5 Gigabit Ethernet port (RJ-45) with both Intel and Realtek NIC drivers included, providing wired network connectivity for improved stability and speed compared to wireless alternatives.
What management features does the HP Dock G6 offer?
The dock includes HP CMSL management, Wake on LAN, PXE Boot support, MAC address pass-through, LAN/WLAN switching, and Intel vPro Technology (wired). Poly Lens software with automatic firmware updates provides ongoing management and security enhancements.
Is the HP Dock G6 suitable for enterprise deployments?
Yes. The dock is designed for enterprise environments with features including Intel vPro Technology support, Wake on LAN, PXE Boot, disconnected firmware updates, and comprehensive management capabilities through HP CMSL and Poly Lens software. It includes a three-year limited warranty.
What is included in the box?
The HP Dock G6 includes the docking station, one 1-metre Thunderbolt 4 cable, and a 230W external power adapter. Drivers for Intel and Realtek network interfaces are included.
