Ubiquiti UniFi Access Door Hub Single Door Entry
Ubiquiti UniFi Access Door Hub Single Door Entry
SKU:NHU-UA-HUB

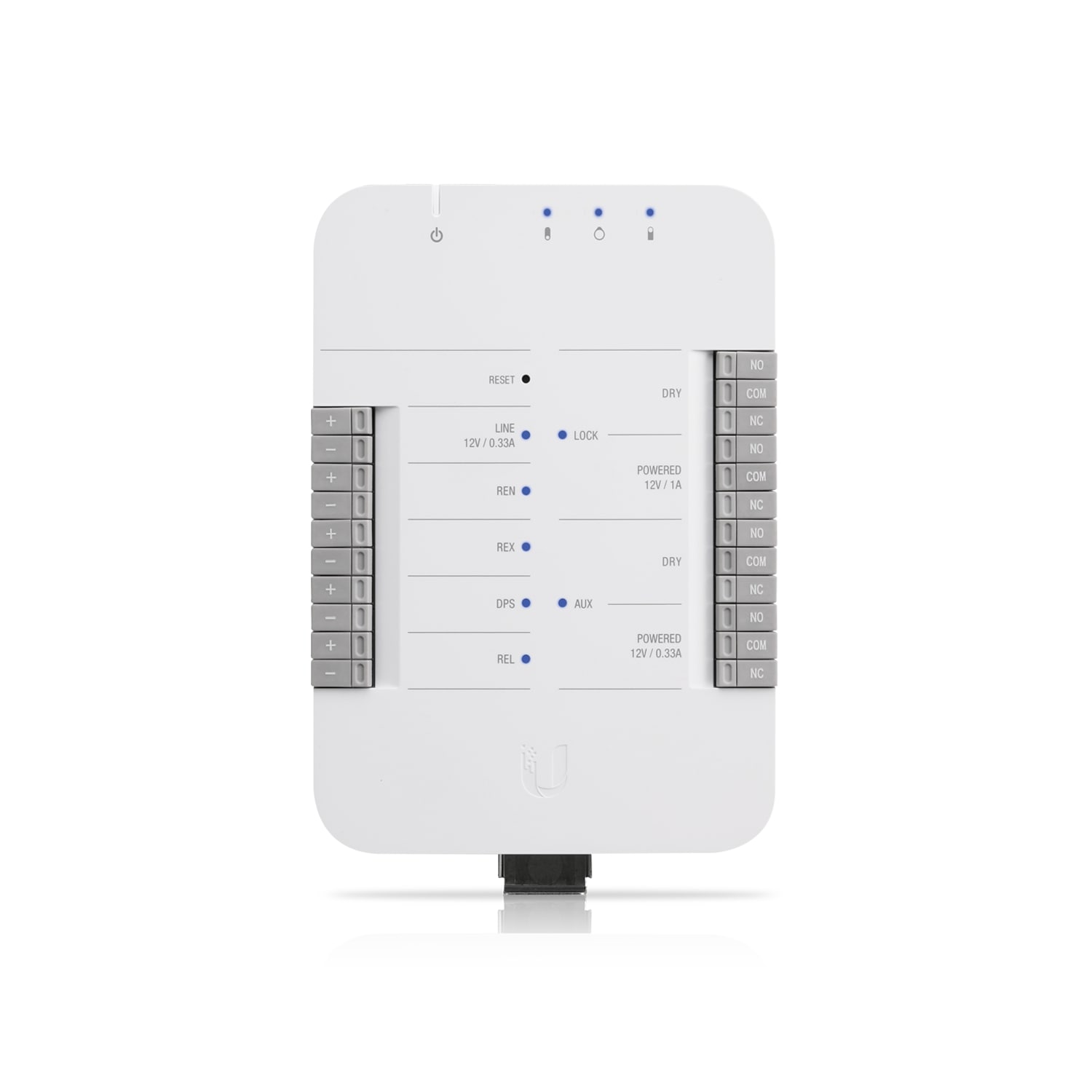

The Ubiquiti UniFi Access Door Hub is a single-door entry control mechanism powered by PoE++. With dual lock terminals, auxiliary outputs for sirens and door openers, and four sensor inputs, it integrates seamlessly with UniFi Access Readers and Protect cameras for complete access management.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UniFi |
| SKU | NHU-UA-HUB |
| Availability | In Stock |
Overview
- The Ubiquiti UniFi Access Door Hub provides comprehensive single-door access control designed for modern networked security environments. It delivers complete entry and exit control through connected UniFi Access Readers whilst simplifying installation with PoE++ power delivery.
The hub supports dual lock terminals for both 12V and dry relay outputs, accommodating most standard door lock types. Auxiliary outputs enable integration with external security devices such as sirens and automatic door openers, whilst four sensor inputs allow connection of door sensors and push buttons for enhanced operational flexibility.
Designed for seamless integration within the UniFi ecosystem, the Access Door Hub connects directly to UniFi Access Readers and Protect cameras, enabling centralised management and monitoring across your security infrastructure. This unified approach simplifies deployment, reduces cabling complexity, and provides IT teams with consistent control across facility access points.
Specifications
| Brand | Ubiquiti |
|---|---|
| Model | UA-HUB |
| Product Type | Door Access Hub |
| Power Delivery | PoE++ |
| Lock Terminals | 2 (12V and Dry relay) |
| Auxiliary Outputs | 2 (external siren and automatic door opener) |
| Sensor Inputs | 4 (for door sensors and buttons) |
| Compatible Readers | UniFi Access Lite (UA-LITE), UniFi Access Pro (UA-PRO) |
| Camera Integration | 1 UniFi Protect camera |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What power supply does the UniFi Access Door Hub require?
The UA-HUB is powered via PoE++ (Power over Ethernet Plus), eliminating the need for a separate power supply. Any PoE++ capable network switch or injector will provide the required power.
What types of door locks are compatible with this hub?
The UA-HUB supports both 12V and dry relay lock terminals, making it compatible with most standard electronic and mechanical door lock types used in commercial settings.
Can I use the UA-HUB with UniFi Access Lite and Pro readers?
Yes, the UA-HUB is compatible with both UniFi Access Lite (UA-LITE) and UniFi Access Pro (UA-PRO) readers, providing flexibility in reader selection.
How many additional devices can I connect to the sensor inputs?
The hub provides four additional sensor inputs for door sensors, push buttons, and other binary input devices, allowing flexible configuration based on your access control requirements.
Can I integrate this with my UniFi Protect camera system?
Yes, the UA-HUB can connect to one UniFi Protect camera, enabling integrated access control and surveillance monitoring through the UniFi management platform.
What is the warranty period for the UA-HUB?
The Ubiquiti UniFi Access Door Hub includes a 12-month manufacturer's warranty covering defects in materials and workmanship.
