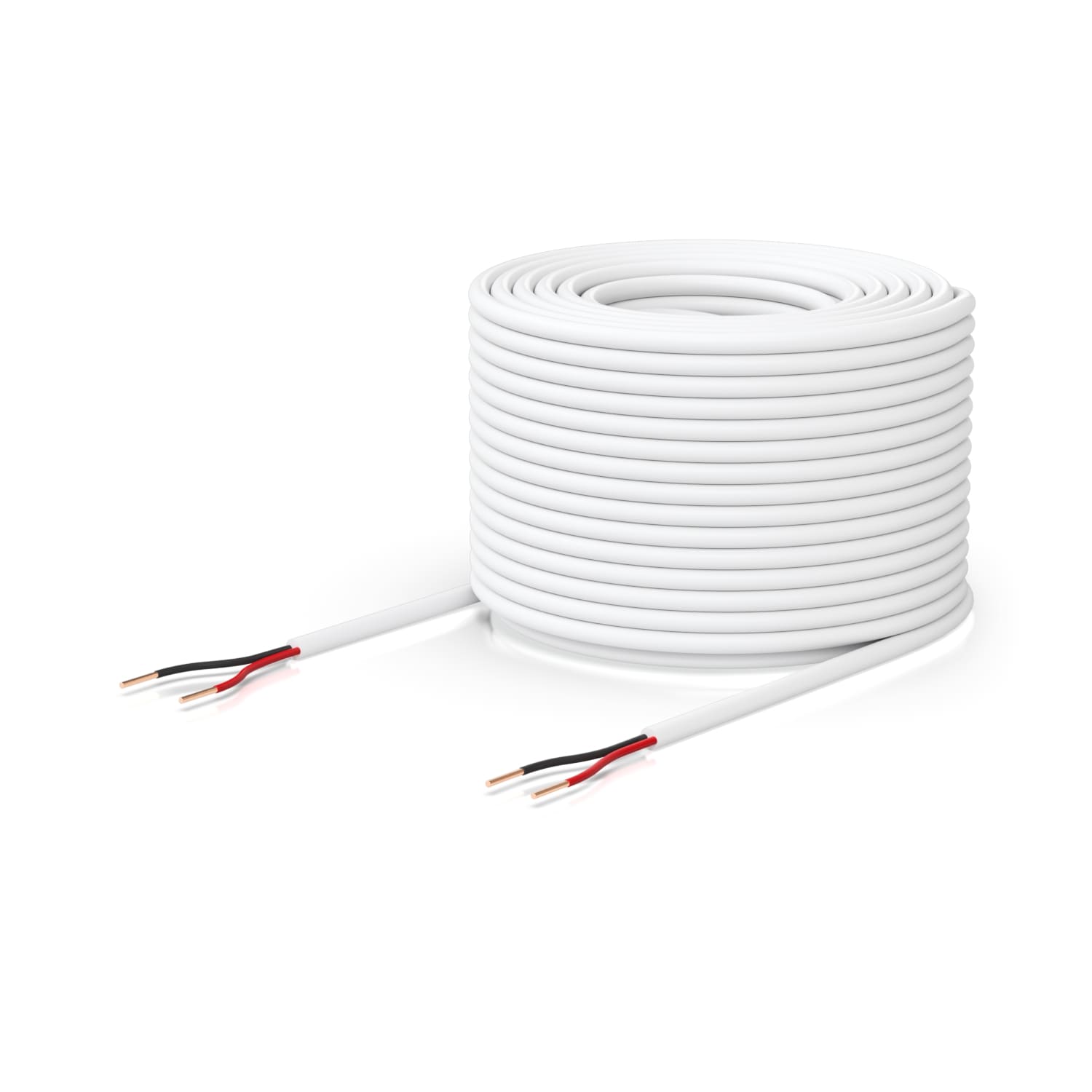

Ubiquiti Door Lock Relay Cable 1-Pair 500ft
Ubiquiti Door Lock Relay Cable 1-Pair 500ft
SKU:NHU-UAC-C-DLR-1P
The Ubiquiti Door Lock Relay Cable is a 500-foot low-voltage cable designed for access control installations. Featuring solid bare copper construction, 18 AWG conductors, and 36V DC rating, it delivers reliable connectivity for electric and magnetic locks integrated with Ubiquiti Access Hubs.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UniFi |
| SKU | NHU-UAC-C-DLR-1P |
| Availability | In Stock |
Overview
- The Ubiquiti Door Lock Relay Cable is a purpose-built low-voltage cable for integrating electric and magnetic door locks with Ubiquiti Access Hub systems. The 500-foot spool provides ample cable length for medium to large facility deployments, eliminating the need for multiple shorter segments.
Constructed with solid bare copper conductors rated for 36V DC operation, this cable delivers the low-voltage power and control signals required for reliable lock actuation. The 18 AWG gauge provides appropriate current capacity for standard electromagnetic locks whilst maintaining signal integrity over extended runs.
This 1-Pair configuration is ideal for single-lock installations. It integrates seamlessly with Ubiquiti's UniFi Access ecosystem, simplifying the specification and procurement process for organisations deploying comprehensive access control solutions.
Offered with a 12-month manufacturer warranty, this cable is a dependable component for professional access control installations across commercial buildings, offices, data centres, and secure facilities.
Specifications
| Brand | Ubiquiti |
|---|---|
| Model | UACC-Cable-DoorLockRelay-1P |
| Product Type | Door Lock Relay Cable |
| Cable Configuration | 1-Pair |
| Total Cable Length | 500 feet (152.4 metres) |
| Conductor Gauge (Lock Circuit) | 18 AWG |
| Conductor Material | Solid bare copper |
| Voltage Rating | 36V DC |
| Outer Jacket Colour | White |
| Primary Application | Electric and magnetic door locks |
| Compatible Hardware | Ubiquiti Access Hub |
| Warranty Period | 12 months |
Key Features
Ideal For
FAQs
What is the difference between the 1-Pair and 2-Pair door lock relay cables?
The 1-Pair cable is designed for electric or magnetic locks only, with (2) 18 AWG conductors. The 2-Pair cable includes an additional pair of 22 AWG conductors for door position sensors, allowing you to monitor lock status alongside lock control.
Can this cable be used with non-Ubiquiti access control systems?
This cable is specifically designed for Ubiquiti Access Hub installations. Compatibility with other systems should be verified before purchase, as pinout and voltage specifications may differ.
Is the 500-foot spool sufficient for most installations?
A 500-foot spool is suitable for most commercial building layouts. However, for very large facilities or multiple lock runs, you may need additional spools. Plan your cable routes to determine exact requirements.
What is the maximum voltage this cable can safely handle?
This cable is rated for 36V DC operation. Exceeding this voltage rating may damage the cable insulation and create safety hazards. Always adhere to the specified voltage rating.
Does the cable come pre-terminated or as a bulk spool?
This product is supplied as a bulk 500-foot spool. You will need to terminate the conductors to your locks and Access Hub using appropriate connectors and crimping tools.
What warranty coverage is included with this cable?
The cable includes a 12-month manufacturer warranty covering defects in materials and workmanship. Warranty excludes damage from improper installation, environmental factors, or misuse.
