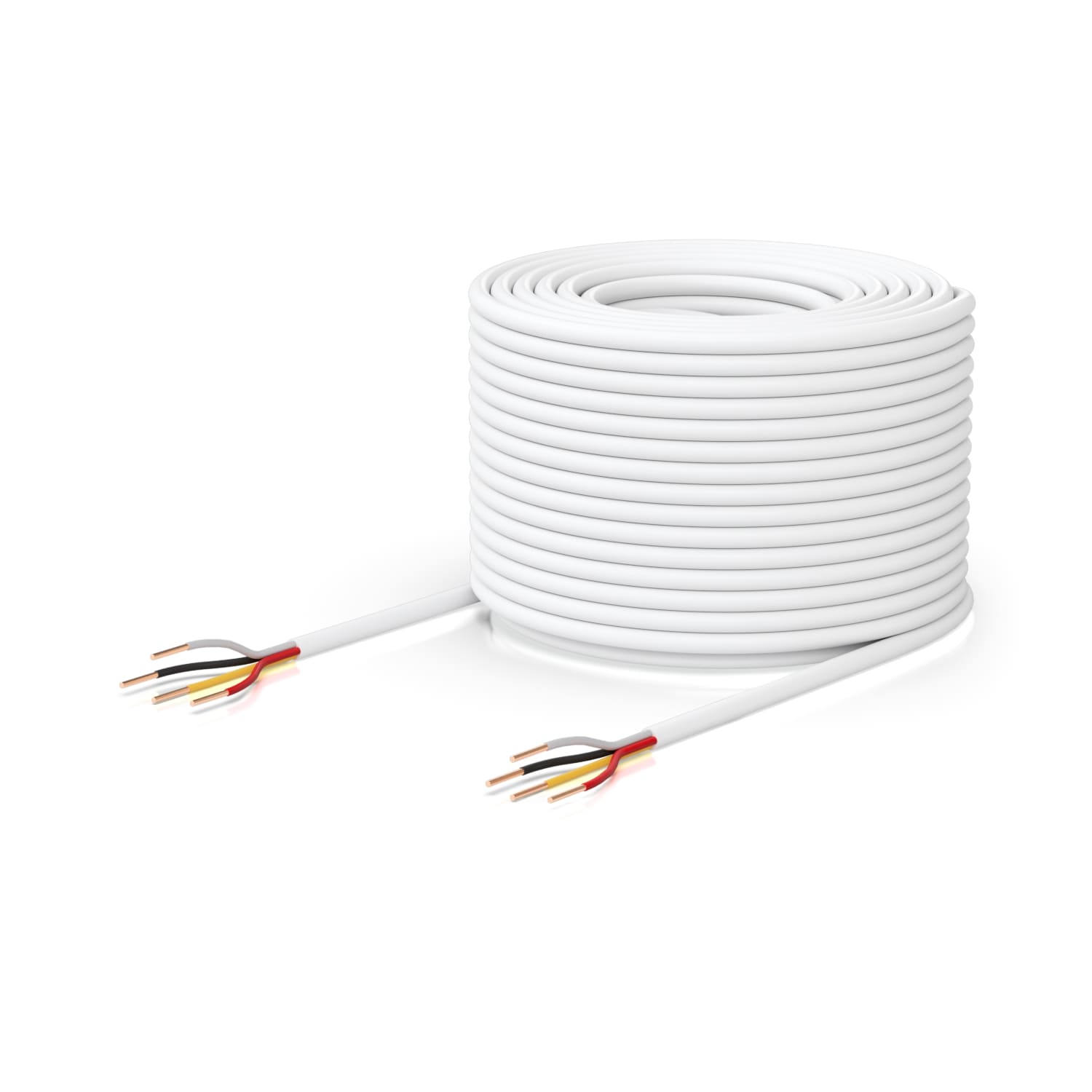

Ubiquiti Door Lock Relay Cable 2-Pair 500ft
Ubiquiti Door Lock Relay Cable 2-Pair 500ft
SKU:NHU-UAC-C-DLR-2P
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UniFi |
| SKU | NHU-UAC-C-DLR-2P |
| Availability | In Stock |
Overview
- The Ubiquiti Door Lock Relay Cable is a professional-grade low-voltage cable designed specifically for UniFi access control systems. This 500-foot spool provides the connectivity needed to integrate electric or magnetic locks and door position sensors with Ubiquiti Access Hubs.
The cable features two pairs of conductors: 18 AWG for lock circuits and 22 AWG for sensor circuits, allowing simultaneous control of both door locks and position monitoring from a single cable run. Built with solid bare copper construction, it delivers reliable signal transmission and minimises voltage drop over extended distances.
Ideal for commercial buildings, offices, and enterprise deployments, this cable simplifies access control wiring by combining lock and sensor connections in one spool. The 500-foot length is suited for larger installations and multi-door access control projects.
Specifications
| Cable Type | Two-pair low-voltage relay cable |
|---|---|
| Cable Length | 500 feet (152.4 metres) |
| Lock Circuit Conductor | 18 AWG |
| Sensor Circuit Conductor | 22 AWG |
| Conductor Material | Solid bare copper |
| Voltage Rating | 36V DC |
| Compatible Systems | Ubiquiti UniFi Access Control |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between the 1-pair and 2-pair relay cables?
The 1-pair cable connects only an electric or magnetic lock to an Access Hub. The 2-pair cable connects both a lock and a door position sensor simultaneously, providing both access control and door status monitoring from a single cable run.
Can this cable be used with non-Ubiquiti access control systems?
This cable is designed specifically for Ubiquiti UniFi Access Hubs. Compatibility with other systems should be verified before purchase.
What is the maximum recommended distance for this cable?
The cable is suitable for runs up to 500 feet. For optimal performance and minimal voltage drop, consult Ubiquiti's installation guide for your specific configuration.
Is the cable pre-terminated or bare?
The cable comes as a spool with bare copper conductors. Termination to connectors must be completed during installation following Ubiquiti's installation guide.
What gauge are the conductors?
The cable features 18 AWG conductors for lock circuits and 22 AWG conductors for door position sensor circuits.
Is this cable suitable for outdoor installations?
This is a low-voltage cable designed for access control applications. For outdoor use, verify environmental protection requirements with Ubiquiti documentation and ensure proper conduit or weatherproofing is used.
What does the 36V DC rating mean?
The cable is rated for use with 36V DC power supplies commonly used in access control systems for powering electric locks and sensors.
