Brateck LDT10-C024 Dual Monitor Aluminum Arm
Brateck LDT10-C024 Dual Monitor Aluminum Arm
SKU:MABT-LDT10-C024

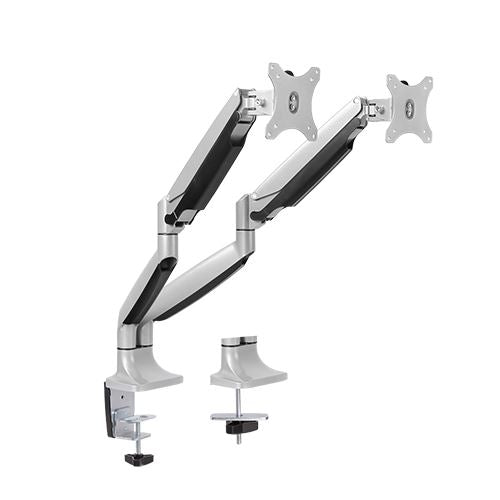

The Brateck LDT10-C024 is a premium dual monitor arm designed for ergonomic workspace setup. Featuring innovative counterbalance technology, 360° rotation, and support for screens up to 32 inches, it delivers flexible positioning and cable management for offices and professional environments.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT10-C024 |
| Availability | Out of Stock |
Overview
- The Brateck LDT10-C024 is a premium dual monitor arm engineered to optimise workspace efficiency and ergonomics. Its innovative counterbalance gas spring technology allows users to position two monitors effortlessly into the ideal viewing angle without manual locking mechanisms. The arm accommodates screens from 13 to 32 inches, supporting up to 9kg per monitor, making it suitable for both standard displays and larger curved monitors.
Built from durable die-cast aluminium with powder-coated finish, this monitor arm combines strength with a professional appearance. The integrated cable management system eliminates visual clutter, while the quick-release VESA plate simplifies installation and monitor swapping. With dual mounting options—desk clamp and grommet—it adapts to various desk configurations and thicknesses.
The built-in spring tension gauge ensures perfect weight adjustment, delivering smooth and responsive movement across all axes. Whether deployed in corporate offices, creative studios, or industrial monitoring stations, the LDT10-C024 provides the flexibility and stability professionals demand.
Specifications
| Brand | Brateck |
|---|---|
| Model | LDT10-C024 |
| Product Type | Dual Monitor Arm |
| Screen Quantity | 2 |
| Compatible Screen Size | 13–32 inches |
| Weight Capacity per Screen | 1–9kg |
| VESA Standard | 75x75, 100x100 |
| Material | Aluminium, Steel, Plastic |
| Surface Finish | Powder Coating |
| Colour | Metallic Grey |
| Dimensions | 1100 x 125 x 670mm |
| Arm Full Extension | 525mm |
| Tilt Range | ±90° |
| Swivel Range | ±90° |
| Screen Rotation | ±90° |
| Monitor Rotation | 180° |
| Counterbalance Technology | Gas Spring |
| Spring Tension Gauge | Built-in |
| Quick-Release VESA Plate | Yes |
| Cable Management | Yes |
| Installation Methods | Desk Clamp, Grommet |
| Recommended Desktop Thickness | Clamp: 10–85mm, Grommet: 10–80mm |
| Curved Monitor Compatible | Yes |
| Instruction Manual | Included |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What monitor sizes does the Brateck LDT10-C024 support?
The LDT10-C024 is compatible with monitors ranging from 13 to 32 inches, with a maximum weight capacity of 9kg per screen. It supports both flat and curved monitors with VESA 75x75 or 100x100 mounting standards.
How does the counterbalance gas spring technology work?
The built-in gas spring counterbalances monitor weight, allowing smooth, effortless adjustment without manual locking. The integrated spring tension gauge lets you fine-tune the balance for each monitor's specific weight.
What mounting options are available?
The arm includes both desk clamp and grommet mounting options. The clamp suits desks 10–85mm thick, while the grommet works with desks 10–80mm thick, giving you flexibility for different desk types.
Can I rotate and tilt the monitors independently?
Yes. The LDT10-C024 offers ±90° tilt, ±90° swivel, 180° monitor rotation, and 180° full swivel for each arm, allowing independent positioning of both monitors for optimal ergonomics.
Is installation difficult?
No. The quick-release VESA plate design enables fast installation. The removable VESA panel simplifies mounting, and the included instruction manual provides step-by-step guidance for both clamp and grommet installation.
Does the arm include cable management?
Yes. The integrated cable management system keeps monitor cables and power leads neatly organised and hidden, maintaining a clean, professional desk appearance.
What is the warranty period?
The Brateck LDT10-C024 comes with a 36-month manufacturer warranty, providing three years of coverage against defects and manufacturing issues.
How far can the monitors extend from the desk?
The arm provides a full extension of 525mm, allowing monitors to be positioned well away from the desk surface for optimal viewing angles and ergonomic setup.
