Brateck LDT80-C024UCP Dual Monitor Arm Gas Spring
Brateck LDT80-C024UCP Dual Monitor Arm Gas Spring
SKU:MABT-LDT80-C024UCP
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT80-C024UCP |
| Availability | In Stock |

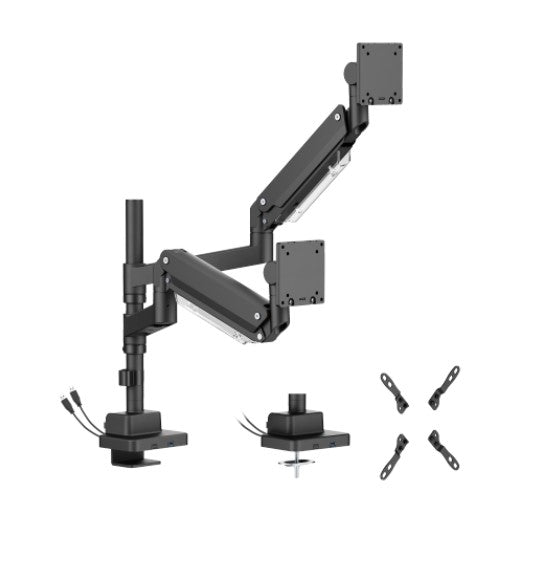

Overview
- The Brateck LDT80-C024UCP is a professional-grade dual monitor arm built to handle large ultrawide and curved screens with confidence. Its gas spring mechanism provides smooth height and tension adjustment for monitors weighing 2–27kg, while the robust steel and aluminium frame ensures long-term stability in demanding work environments.
This arm is engineered for flexibility: it offers full tilt, swivel, and rotation movement, allowing users to optimise viewing angles for comfort and productivity. The quick-release VESA plate eliminates installation complexity, and built-in VESA adapters accommodate different monitor bracket patterns—including Samsung Odyssey Ark 55-inch displays.
A standout feature is the integrated smart base with USB 3.0 and USB-C ports, enabling device charging and data transfer directly from the desk mounting point. Cable management channels keep wiring organised and hidden, contributing to a clean workspace aesthetic. The matte black finish and space-efficient pole design make it suitable for any modern office environment.
Specifications
| Brand | Brateck |
|---|---|
| Model | LDT80-C024UCP |
| Product Type | Dual Monitor Arm |
| Adjustment Mechanism | Gas spring |
| Screen Quantity Supported | 2 |
| Screen Size Range | 24–57 inches |
| Curved Monitor Compatible | Yes |
| Weight Capacity Per Screen | 2–27kg (4.4–59.4lbs) |
| Weight Capacity Per Screen Curved | 2–22kg (4.4–48.4lbs) |
| VESA Standards Supported | 75×75, 100×100, 100×200, 200×100, 200×200 |
| Tilt Range | +60° to −20° |
| Swivel Range | +90° to −90° |
| Screen Rotation Range | +90° to −90° |
| Arm Full Extension | 580mm (22.8 inches) |
| Pole Height | 485mm (19.1 inches) |
| Overall Dimensions | 1145×131×925mm (45.1×5.2×36.4 inches) |
| Material | Steel, aluminium, plastic |
| Surface Finish | Powder coating |
| Colour | Matte black |
| Installation Type | Clamp and grommet |
| Supported Desk Thickness | 10–50mm (0.39–2 inches) |
| Quick-Release VESA Plate | Yes |
| USB Ports | 1× USB 3.0, 1× USB Type-C |
| Cable Management | Yes |
| Warranty Period | 36 months |
Key Features
Ideal For
FAQs
What monitor sizes does the Brateck LDT80-C024UCP support?
The arm supports monitors ranging from 24 to 57 inches, including flat and curved screens. It is compatible with VESA standards 75×75, 100×100, 100×200, 200×100, and 200×200, with included adapters for different VESA patterns.
How much weight can this monitor arm hold?
The arm supports up to 27kg (59.4lbs) per monitor for flat screens and up to 22kg (48.4lbs) per monitor for curved screens. The gas spring mechanism adjusts to the weight of your monitors for smooth, effortless movement.
Does the LDT80-C024UCP work with curved monitors?
Yes, it is fully compatible with curved monitors, though the weight capacity per curved screen is slightly lower at 22kg maximum. The optimised structure provides excellent weight-bearing capacity for large curved displays.
How is the arm installed, and can it be used on any desk?
The arm uses either a clamp or grommet installation method and supports desktop thickness between 10–50mm. Installation is entirely from the top side of the desk, and the quick-release VESA plate makes setup tool-free.
What are the USB ports used for?
The integrated USB 3.0 and USB Type-C ports on the base allow you to charge devices and transfer data without additional cables running across your desk, helping to keep your workspace organised.
What is the warranty period?
The Brateck LDT80-C024UCP includes a 36-month (3-year) manufacturer's warranty.
Can I adjust the height and viewing angle?
Yes. The arm offers full tilt adjustment from +60° to −20°, swivel movement of ±90°, and screen rotation of ±90°, providing complete control over monitor positioning and ergonomics.
Does it include cable management?
Yes, the arm features integrated cable management channels to keep cables organised and hidden, contributing to a cleaner desk appearance.
