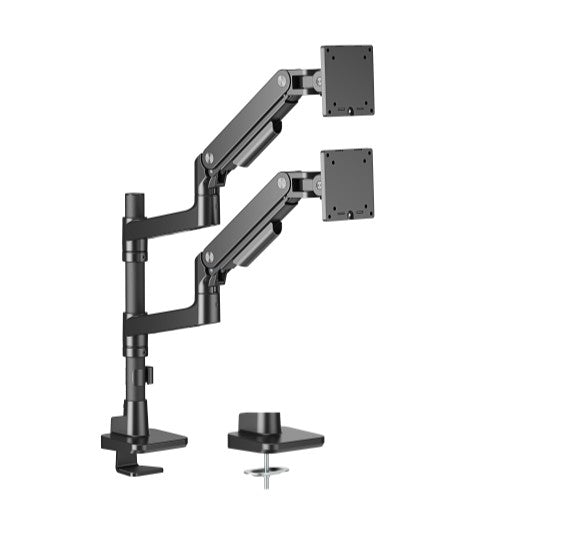

Brateck LDT81-C024P-B Dual Monitor Arm Gas Spring 17–49 inch
Brateck LDT81-C024P-B Dual Monitor Arm Gas Spring 17–49 inch
SKU:MABT-LDT81-C024P-B
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT81-C024P-B |
| Availability | In Stock |
Overview
- The Brateck LDT81-C024P-B is a premium pole-mounted dual monitor arm built for professionals who demand stability, flexibility, and clean cable management. Its heavy-duty gas spring mechanism allows effortless height adjustment and repositioning of two displays up to 49 inches, each supporting up to 44 lbs.
Designed for compatibility with a broad range of screens, the arm accommodates both standard and curved monitors thanks to its 360° rotary VESA plate and ±180° rotation capability. The detachable quick-release VESA plate simplifies installation and removal, whilst built-in cable management keeps your workspace organised.
Installation is straightforward—the arm mounts entirely from above the desk using either a clamp or grommet fitting, eliminating the need for complex underneath access. With a tilt range of +50° to -20° and swivel range of ±90°, users can achieve optimal ergonomic positioning throughout the day.
Suitable for trading desks, creative studios, command centres, and busy office environments, the LDT81-C024P-B delivers professional-grade performance and reliability backed by a 36-month warranty.
Specifications
| Brand | Brateck |
|---|---|
| Model | LDT81-C024P-B |
| Product Type | Pole-Mounted Dual Monitor Arm |
| Category | Gas Spring Monitor Arm |
| Rank | Premium |
| Material | Aluminium, steel, plastic |
| Surface Finish | Powder coating |
| Colour | Fine texture black |
| Dimensions | 130 × 573 × 767 mm (5.1 × 22.6 × 30.2 inches) |
| Monitor Compatibility | 17–49 inches |
| Curved Monitor Support | Yes |
| Number of Monitors | 2 |
| Weight Capacity (per monitor) | 2–20 kg (4.4–44 lbs) |
| VESA Patterns | 75×75, 100×100 |
| Tilt Range | +50° to -20° |
| Swivel Range | +90° to -90° |
| Screen Rotation | +180° to -180° |
| Arm Extension | 482 mm (19 inches) |
| Pole Height | 456 mm (18 inches) |
| Installation Method | Clamp or grommet |
| Desktop Thickness (Clamp) | 12–45 mm (0.47–1.8 inches) |
| Desktop Thickness (Grommet) | 12–50 mm (0.47–2 inches) |
| Quick Release VESA Plate | Yes |
| Cable Management | Built-in |
| Anti-Theft | No |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What size monitors does the Brateck LDT81-C024P-B support?
The arm supports monitors between 17 and 49 inches. It is compatible with both flat and curved displays, as long as they fall within this size range and have a VESA mounting pattern of 75×75 or 100×100.
How much weight can each monitor arm hold?
Each arm can support up to 20 kg (44 lbs) per monitor. The heavy-duty gas spring mechanism is engineered to handle large curved and flat monitors with ease.
Do I need to access underneath my desk to install this arm?
No. The LDT81-C024P-B installs entirely from the top of the desk, eliminating the need for underneath access. You can use either a clamp (for desks 12–45 mm thick) or a grommet (for desks 12–50 mm thick).
Can I adjust the height and angle of the monitors?
Yes. The gas spring mechanism allows smooth height adjustment, with a tilt range of +50° to -20°, swivel of ±90°, and full screen rotation of ±180°. The 360° rotary VESA plate provides maximum flexibility for ergonomic positioning.
What VESA mounting patterns are compatible?
The arm supports VESA patterns of 75×75 and 100×100. Most modern monitors use one of these standard patterns.
Does the arm include cable management?
Yes. Built-in cable management keeps your cables organised and out of sight, maintaining a clean and professional workspace.
Is the VESA plate removable?
Yes. The quick-release VESA plate is detachable, making installation, removal, and monitor swaps quick and easy.
What is the warranty period?
The Brateck LDT81-C024P-B comes with a 36-month (3-year) warranty, providing confidence in durability and quality.
