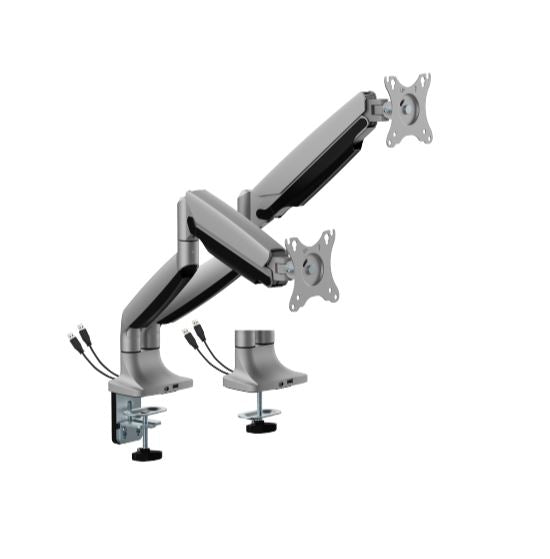

Brateck LDT82-C024UC Dual Monitor Gas Spring Arm
Brateck LDT82-C024UC Dual Monitor Gas Spring Arm
SKU:MABT-LDT82-C024UC-SV
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT82-C024UC-SV |
| Availability | In Stock |
Overview
- The Brateck LDT82-C024UC is a professional-grade dual monitor mounting solution engineered for demanding office and technical environments. Its gas spring tension system eliminates the friction-based adjustment found in basic arms, delivering smooth, tool-free height and angle positioning throughout the entire range of motion.
The integrated USB ecosystem—featuring one USB 3.0 port and one USB-C port on the base—adds practical value to cable-dense workstations. Cables are routed through the arm and managed at the base, reducing desktop clutter and improving aesthetic appeal.
With support for screens up to 35 inches and weight capacity up to 16kg per monitor, the LDT82-C024UC accommodates modern high-resolution displays. The 180° rotation stop is a thoughtful engineering detail that protects both the arm mechanism and surrounding equipment from collision damage during busy office operations.
Dual mounting options—desk clamp and grommet—provide installation flexibility, while VESA 75x75 and 100x100 compatibility ensures broad screen compatibility across business-grade monitors.
Specifications
| Brand | Brateck |
|---|---|
| Model | LDT82-C024UC |
| Product Type | Dual Gas Spring Monitor Arm |
| Material | Steel, Aluminium, Plastic |
| Surface Finish | Powder Coated |
| Colour | Matte Silver |
| Screen Support | 2 monitors |
| Compatible Screen Size | 17–35 inches |
| Weight Capacity (per screen) | 1–16kg (standard), 1–13kg (curved) |
| VESA Compatibility | 75x75, 100x100 |
| Curved Monitor Support | Yes |
| Tilt Range | ±90° |
| Swivel Range | ±90° |
| Screen Rotation | ±180° |
| Maximum Arm Extension | 536mm |
| Rotation Stop | 180° (prevents swing beyond safe range) |
| Mounting Options | Desk clamp or grommet |
| Desktop Thickness (Clamp) | 10–80mm |
| Desktop Thickness (Grommet) | 10–40mm |
| USB Ports | 1× USB 3.0, 1× USB Type-C |
| Cable Management | Built-in routing and organisation |
| Quick Release VESA Plate | No |
| Dimensions | 1128 × 118 × 663mm |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What monitor sizes does the Brateck LDT82-C024UC support?
The arm accommodates dual monitors from 17 to 35 inches. It supports both flat and curved screens, with a weight capacity of 16kg per monitor (13kg for curved displays). Both screens must be VESA 75x75 or 100x100 compatible.
Can I use this arm on any desk?
The LDT82-C024UC includes both clamp and grommet mounting options. The clamp fits desks 10–80mm thick, whilst the grommet requires a desk hole and suits 10–40mm thickness. Choose the option that best matches your desktop.
How does the gas spring adjustment work?
The built-in gas spring mechanism allows you to smoothly adjust monitor height and angle without tools. Simply apply gentle pressure to move monitors to your preferred position. The spring tension holds screens in place once positioned.
What are the USB ports used for?
The arm includes one USB 3.0 port and one USB Type-C port integrated into the base. These provide data throughput and device charging directly from your desk mount, reducing the need for separate power outlets.
What does the 180° rotation stop do?
This safety feature prevents the monitor arm from rotating beyond 180°, protecting your displays and surrounding equipment from accidental collision or overextension during daily use.
Is the VESA plate quick-release?
No, the VESA plates are fixed. However, the keyhole pattern mounting allows straightforward installation and removal if needed.
What is the warranty period?
The Brateck LDT82-C024UC includes a 36-month manufacturer's warranty covering defects in materials and workmanship.
