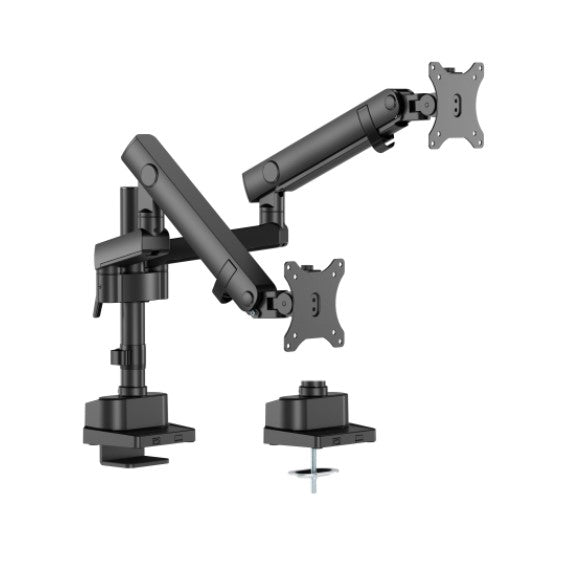

Brateck LDT84-C024P-B Dual Monitor Pole Arm
Brateck LDT84-C024P-B Dual Monitor Pole Arm
SKU:MABT-LDT84-C024P-B
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT84-C024P-B |
| Availability | In Stock |
Overview
- The Brateck LDT84-C024P-B is a professional-grade dual monitor arm built for demanding workplace environments. Its mechanical spring tension system provides smooth, tool-free height adjustment and perfect weight balance for each monitor, eliminating the need for repeated manual adjustments. The pole-mounted design maximizes desk space while maintaining stability for monitors up to 35 inches.
With ±45° tilt, ±90° swivel, and ±180° rotation capability, this arm delivers exceptional viewing flexibility for any seating position. The dual mounting system (clamp and grommet) accommodates desks between 10–50mm thick, making it suitable for most standard office setups. Built-in cable management and quick-release VESA plates streamline installation and maintenance.
Ideal for trading floors, contact centres, and design studios, the LDT84-C024P-B combines durability with ergonomic functionality. Its powder-coated aluminium and steel construction ensures reliability in high-use environments, backed by a 3-year manufacturer warranty.
Specifications
| Brand | Brateck |
|---|---|
| Model | LDT84-C024P-B |
| Product Type | Dual Monitor Pole Arm |
| Monitor Quantity | 2 |
| Monitor Size Compatibility | 17–35 inches |
| Curved Monitor Support | Yes |
| Weight Capacity (per screen) | 2–12 kg (4.4–26.4 lbs) |
| Weight Capacity Curved (per screen) | 2–11 kg (4.4–24.2 lbs) |
| VESA Compatibility | 75×75 mm, 100×100 mm |
| Tilt Range | ±45° |
| Swivel Range | ±90° |
| Screen Rotation | ±180° |
| Full Arm Extension | 514 mm (20.2 inches) |
| Pole Height | 362 mm (14.3 inches) |
| Overall Dimensions | 1066×120×697 mm (42×4.7×27.4 inches) |
| Material | Aluminium, steel, plastic |
| Finish | Powder-coated matte black |
| Mounting Options | Desk clamp and grommet (both included) |
| Desktop Thickness (clamp/grommet) | 10–50 mm (0.39–2 inches) |
| Quick-Release VESA Plate | Yes |
| Cable Management | Yes, built-in |
| Installation | Top-side installation (entirely above desk surface) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What size monitors does the Brateck LDT84-C024P-B support?
This arm supports dual monitors ranging from 17 to 35 inches, with a per-screen weight capacity of 2–12 kg (4.4–26.4 lbs). Curved monitors are also supported with a capacity of 2–11 kg per screen.
Is the monitor arm compatible with my VESA mount?
Yes, the LDT84-C024P-B is compatible with VESA 75×75 mm and 100×100 mm standards. The quick-release VESA plate makes installation and adjustment straightforward.
Can I use this arm with both a desk clamp and grommet?
The arm includes both mounting options, so you can choose either desk clamp or grommet depending on your desk type and preference. Both accommodate desks 10–50 mm thick.
What adjustments are available on this monitor arm?
The arm offers ±45° tilt, ±90° swivel, and ±180° screen rotation. The 360° VESA plate rotation provides additional flexibility. The built-in mechanical spring tension allows smooth height adjustment without tools.
How much desk space does the Brateck LDT84-C024P-B require?
The pole-mounted design minimizes desktop footprint compared to traditional dual-monitor stands. The pole height is 362 mm (14.3 inches) and the arm extends up to 514 mm (20.2 inches) at full extension.
Is cable management included?
Yes, the arm features built-in cable management to keep your workspace organised and reduce cable clutter.
What is the warranty period?
The Brateck LDT84-C024P-B comes with a 36-month (3-year) manufacturer warranty covering defects in materials and workmanship.
