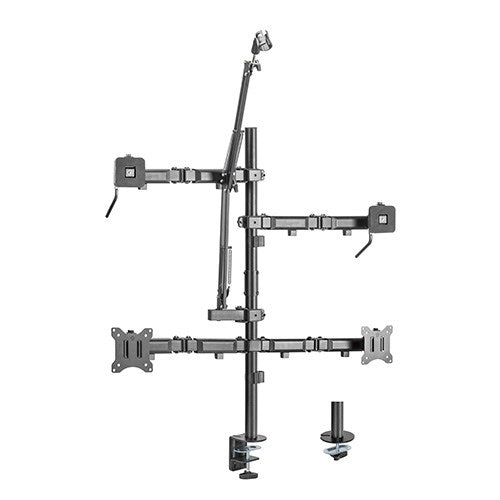

Brateck MDS10-2 Dual-Monitor All-in-One Studio Desktop Mount
Brateck MDS10-2 Dual-Monitor All-in-One Studio Desktop Mount
SKU:MABT-MDS10-2
The Brateck MDS10-2 is an all-in-one studio desktop mount designed for content creators and live streamers. Supporting dual monitors up to 32 inches with integrated microphone, camera, and light holders, it delivers a complete workspace solution in a compact, cable-managed design.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-MDS10-2 |
| Availability | In Stock |
Overview
- The Brateck MDS10-2 is a professional all-in-one studio mount designed to consolidate multiple devices into a single, space-efficient desktop solution. Rather than purchasing separate monitor arms, microphone stands, and light mounts, this integrated system combines them all on one sturdy steel frame, freeing up valuable desk space whilst maintaining full flexibility for positioning and articulation.
The mount accommodates dual monitors up to 32 inches with individual weight capacity of 9kg per screen, making it compatible with curved gaming monitors as well as standard flat displays. Each monitor arm offers complete articulation—tilt, swivel, and full rotation—allowing content creators to adapt the setup to any filming angle or workspace configuration.
Beyond monitors, the built-in microphone boom (25.2cm extension with 680mm height range) supports both 3/8-inch and 5/8-inch microphone thread sizes, whilst integrated camera and light mounts (each rated for 7kg) provide stable positioning for 4K cameras and studio lighting. The steel base and plastic twist-lock shaft ensure durability and stability during live sessions.
With clamp or grommet installation options, comprehensive cable management, and quick-release VESA plates, the MDS10-2 simplifies setup and breakdown whilst keeping cables hidden and workspace clean. It's a practical choice for professionals who want to eliminate desktop clutter without sacrificing functionality or flexibility.
Specifications
| Brand | Brateck |
|---|---|
| Model | MDS10-2 |
| Product Type | All-in-One Studio Desktop Mount |
| Material | Steel, Plastic |
| Finish | Powder-coated, fine texture black |
| Dimensions | 910 × 120 × 1000 mm (35.8 × 4.7 × 39.4 inches) |
| Vertical Shaft Height | 860 mm (33.9 inches) |
| Arm Extension | 398 mm (15.7 inches) |
| Monitor Compatibility | 2 monitors, 17–32 inches |
| Monitor Weight Capacity | 9 kg per screen (19.8 lbs) |
| VESA Patterns | 75×75 mm, 100×100 mm |
| Curved Monitor Support | Yes |
| Monitor Tilt Range | +70° to −70° |
| Monitor Swivel Range | +90° to −90° |
| Monitor Rotation | +180° to −180° |
| Microphone Holder | Integrated boom arm |
| Microphone Thread Sizes | 3/8 inch, 5/8 inch |
| Microphone Weight Capacity | 1 kg (2.2 lbs) |
| Microphone Boom Length | 640 mm (25.2 inches) |
| Microphone Height Range | 680 mm (26.8 inches) |
| Camera Holder | Integrated mount |
| Camera Thread Sizes | 1/4 inch, 3/8 inch |
| Camera Weight Capacity | 7 kg (15.4 lbs) |
| Camera Tilt Range | +90° to −90° |
| Camera Swivel Range | +90° to −90° |
| Camera Rotation | +180° to −180° |
| Light Holder | Integrated mount |
| Light Thread Sizes | 1/4 inch, 3/8 inch |
| Light Weight Capacity | 7 kg (15.4 lbs) |
| Microphone Base | Steel |
| Vertical Shaft Lock | Plastic (PA) twist lock |
| VESA Plates | Quick-release |
| Cable Management | Yes |
| Installation Method | Clamp or grommet mount |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What size monitors does the Brateck MDS10-2 support?
The mount supports dual monitors ranging from 17 to 32 inches. Each monitor can weigh up to 9 kg, and the mount is compatible with curved monitors as well as flat screens using VESA 75×75 mm or 100×100 mm mounting patterns.
Can I use this mount with curved gaming monitors?
Yes, the Brateck MDS10-2 is explicitly designed to support curved monitors, making it ideal for gaming setups and immersive multi-monitor configurations.
What microphone thread sizes are compatible with the boom arm?
The integrated microphone boom arm accommodates both 3/8-inch and 5/8-inch threaded microphones, covering most popular studio and streaming microphone models.
Can I mount cameras and lights on this stand?
Yes, the mount includes integrated camera and light holders, each rated for 7 kg. Both support 1/4-inch and 3/8-inch thread sizes, compatible with standard cameras, action cameras, and studio lighting rigs.
How do I install the Brateck MDS10-2 on my desk?
The mount can be installed using either a desktop clamp or a grommet mount (desk hole mount). Choose the option that suits your desk type and space requirements.
Is cable management included?
Yes, the mount features a comprehensive cable management system to help keep cables organised and hidden, maintaining a clean workspace.
How much articulation do the monitor arms have?
Each monitor arm offers full articulation: tilt range from +70° to −70°, swivel range from +90° to −90°, and 360° rotation (±180°), allowing flexible positioning for any viewing angle or content creation setup.
What is the warranty period?
The Brateck MDS10-2 comes with a 36-month (3-year) manufacturer warranty, covering defects in materials and workmanship.
